Coolant Temperature Sensor

Measure coolant temperature sensor resistance between sensor terminals. For resistance specifications, see Fig 1.

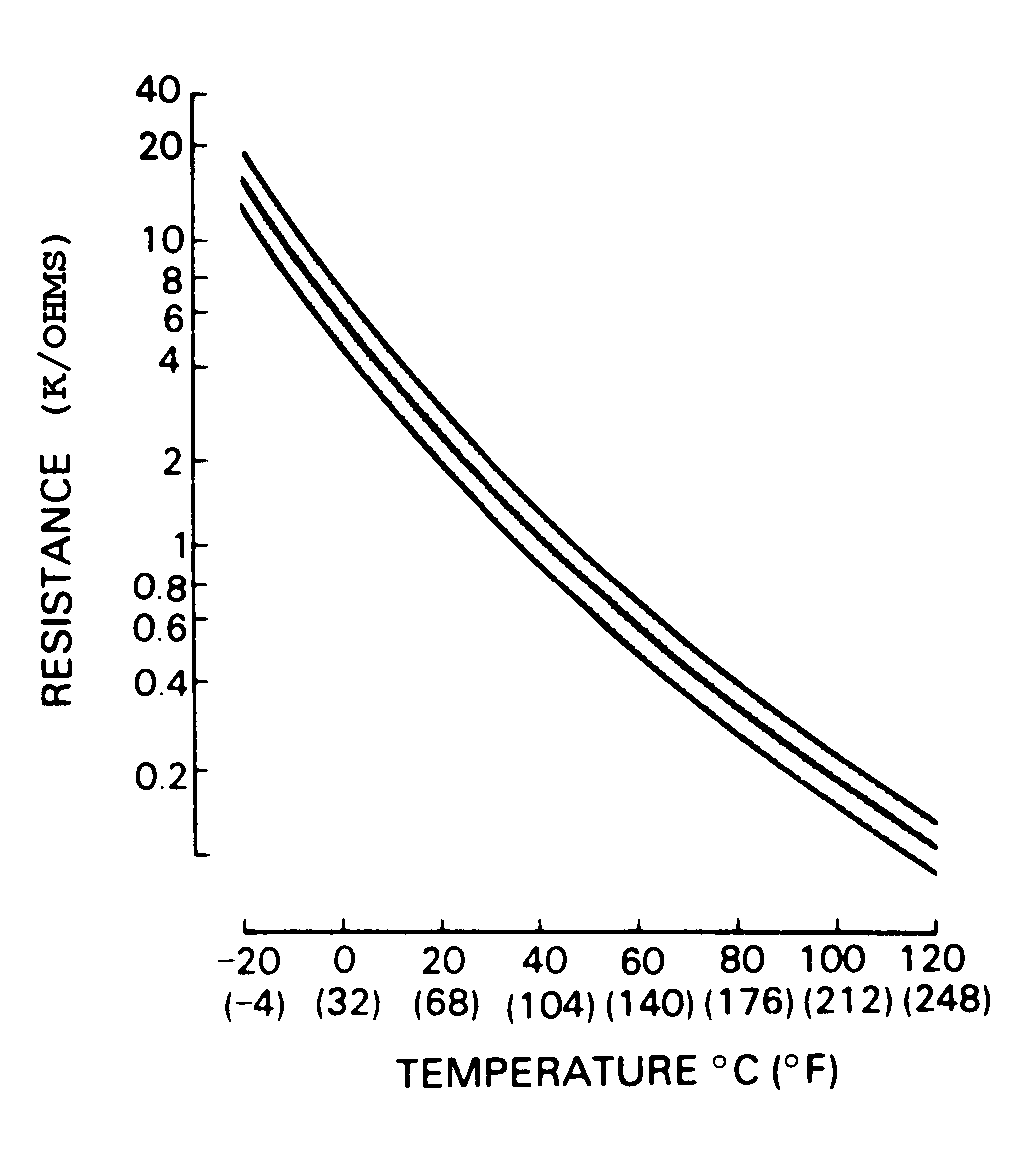

Fig 1: Coolant Temperature Sensor Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
