Home >> Toyota >> 1992 >> Cressida >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Introduction >> Retrieving Codes >> Notes

Retrieving Codes: Notes

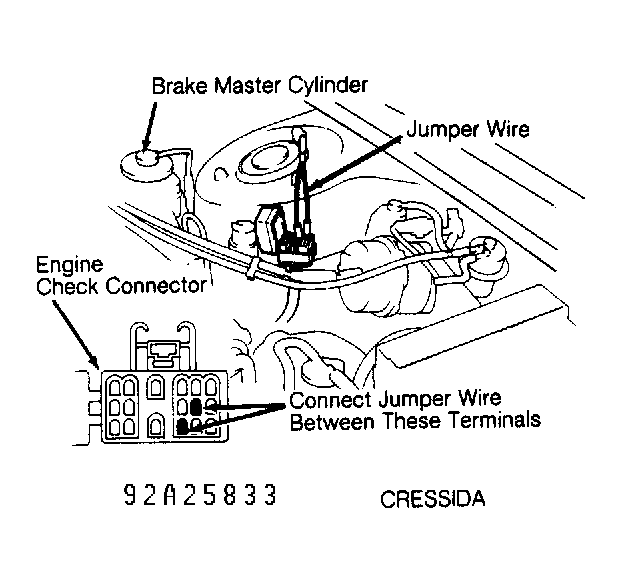

Fig 1: Installing Jumper Wire In Engine Check Connector (Cressida)
G92A25833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Displaying Codes
G118608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
