Component Locations

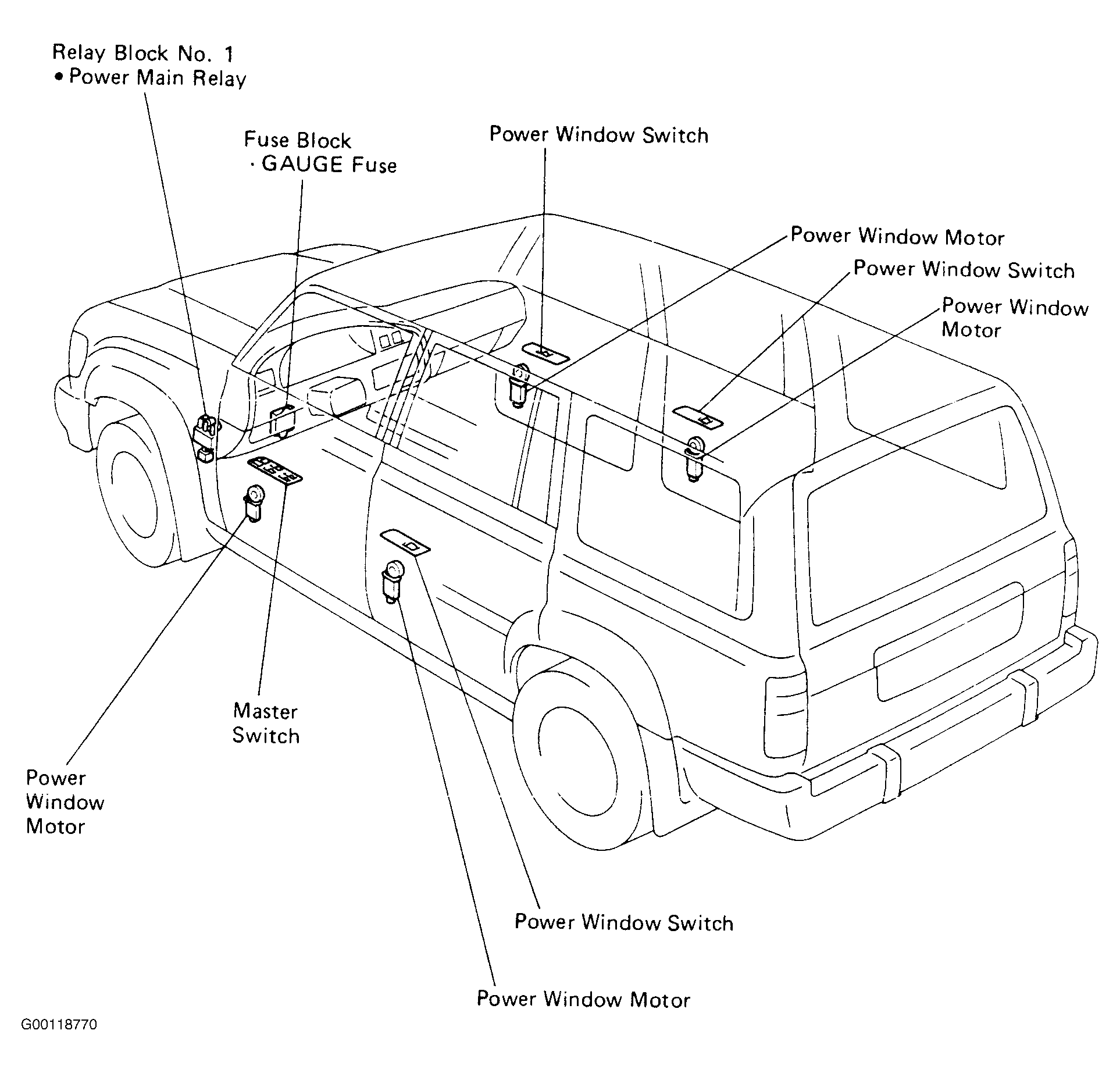

Fig 1: Locating Power Window System Components
G00118770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

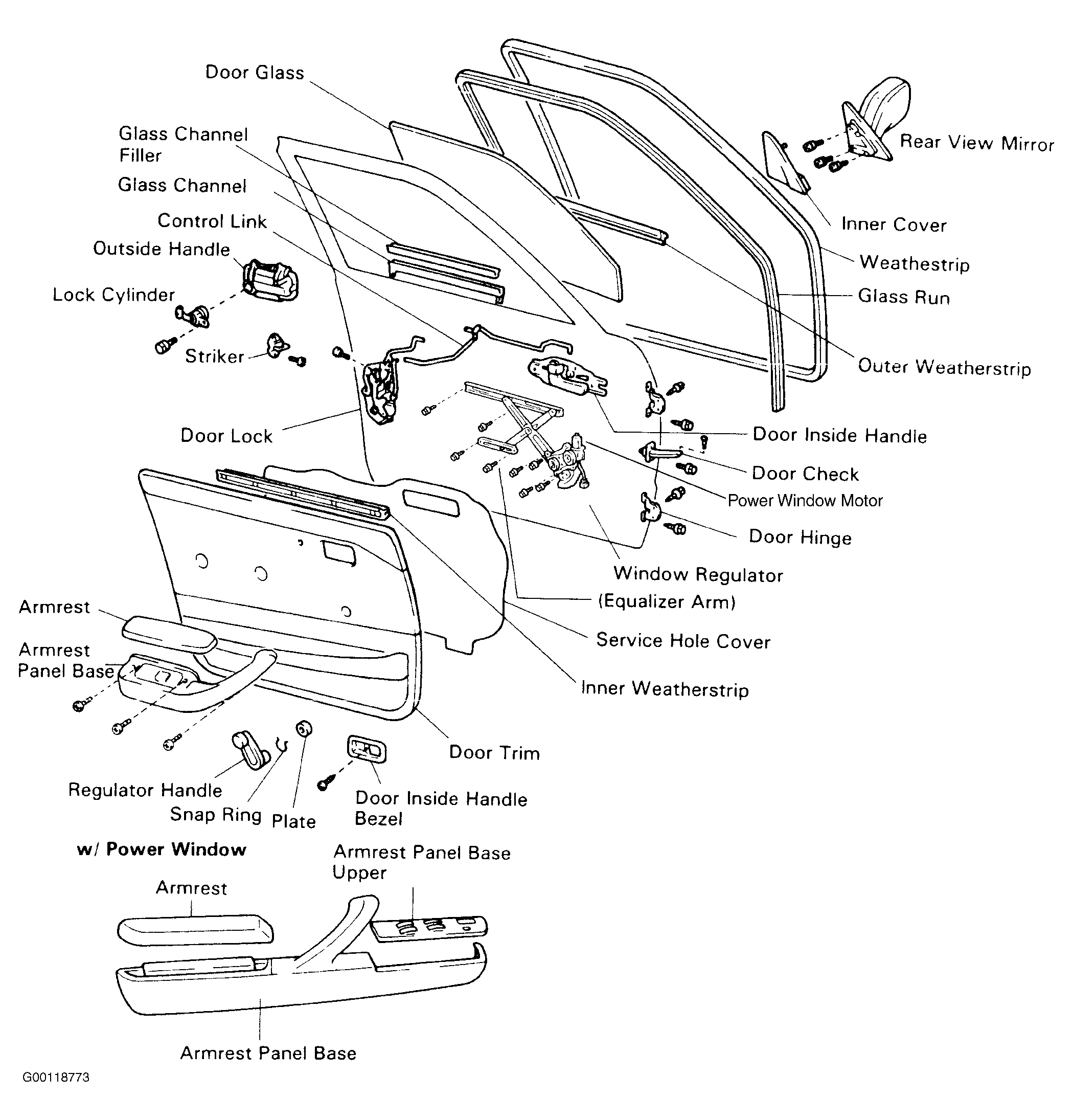

Fig 2: Exploded View Of Front Door Components
G00118773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

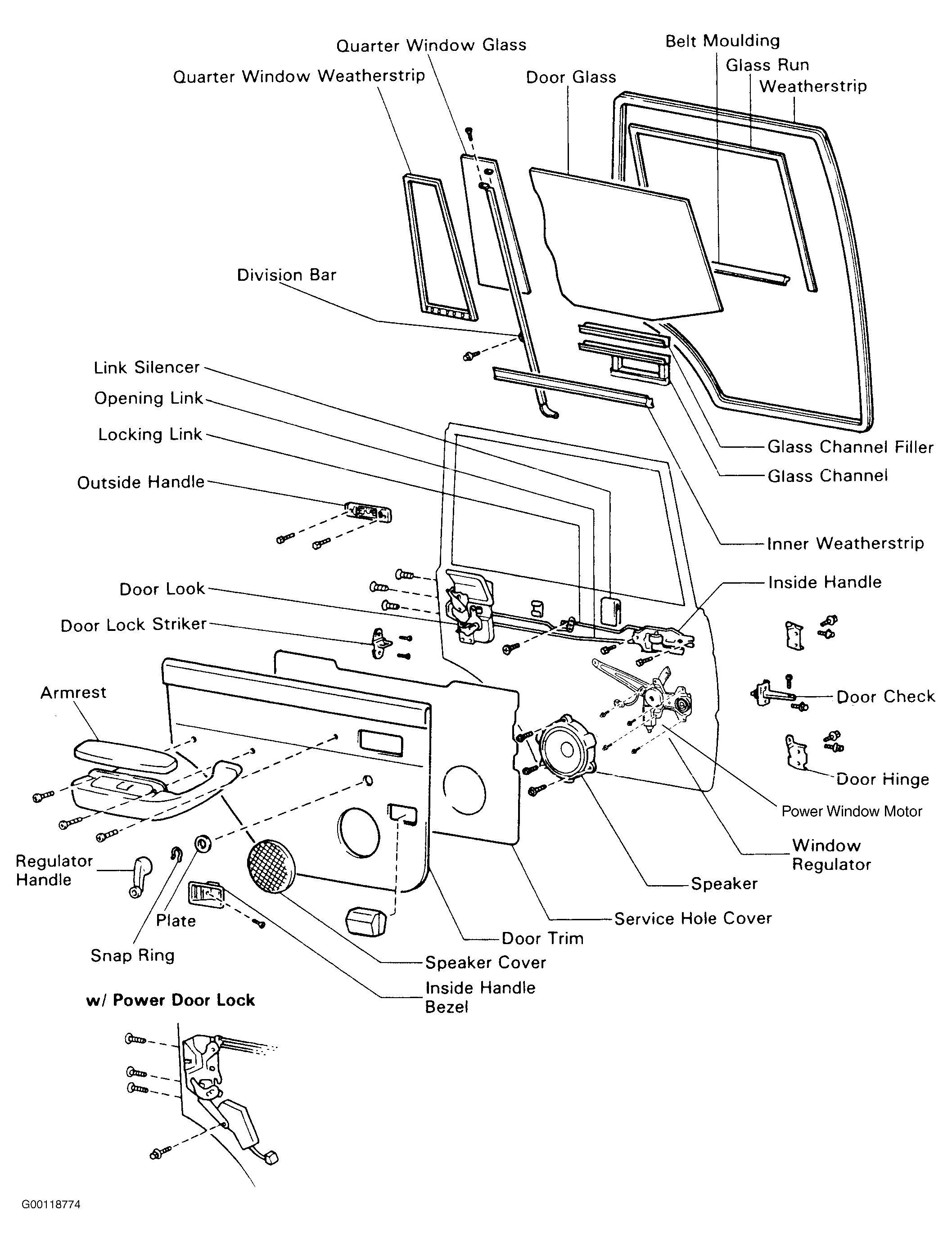

Fig 3: Exploded View Of Rear Door Components
G00118774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

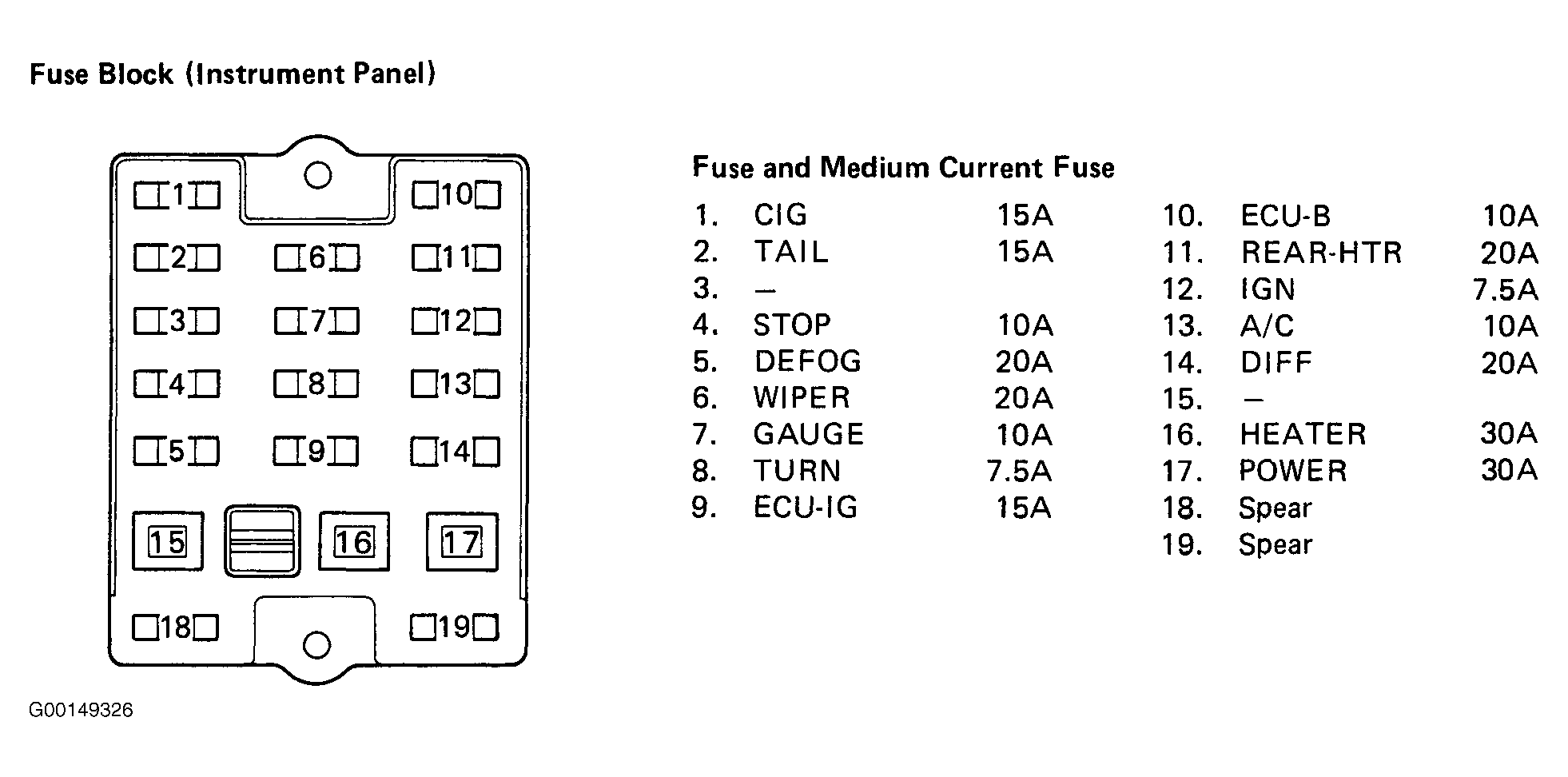

Fig 4: Identifying Fuse Block Fuses
G00149326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

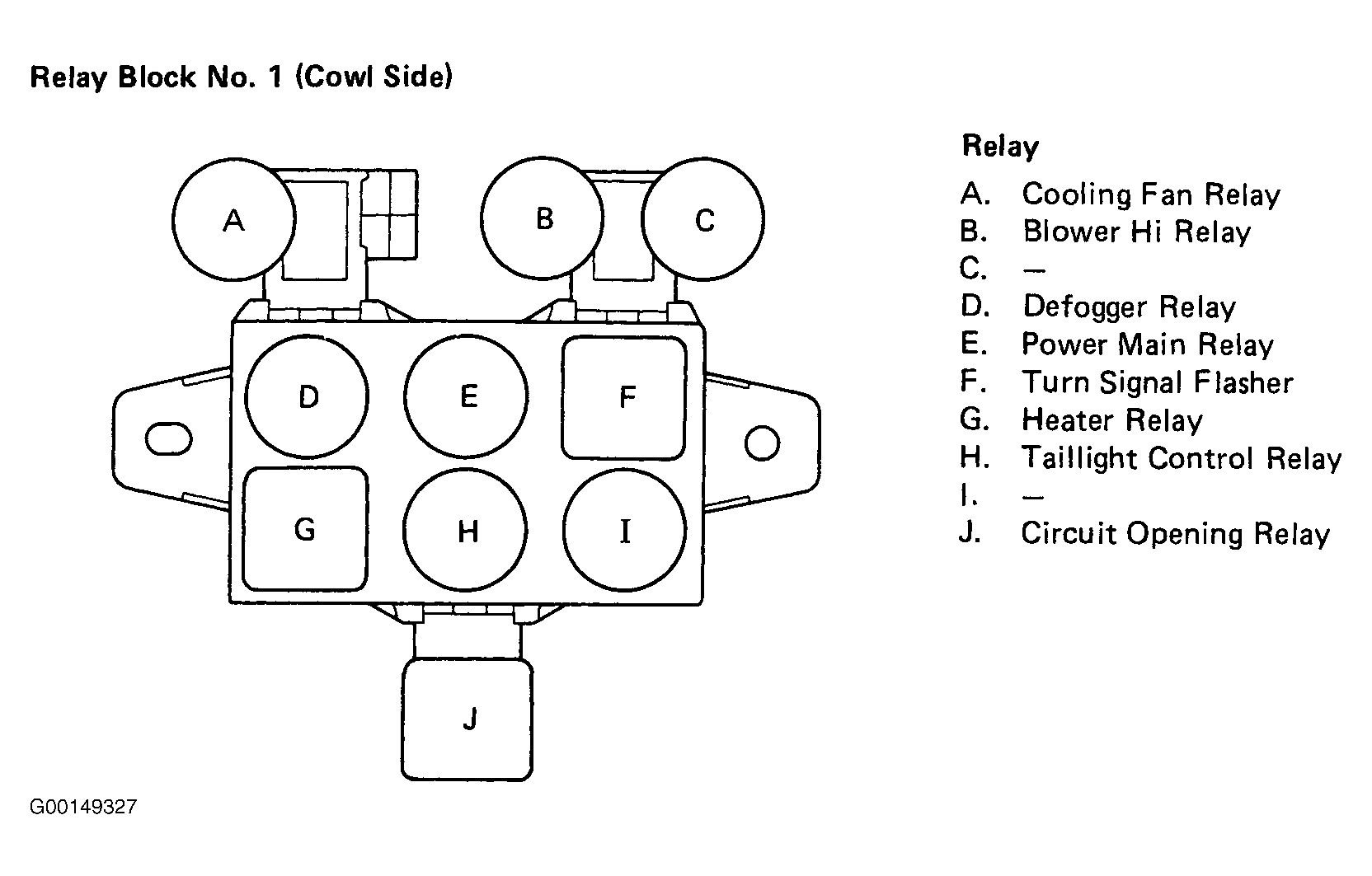

Fig 5: Identifying Relay Block No. 1 Relays
G00149327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
