Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Blocks | ||

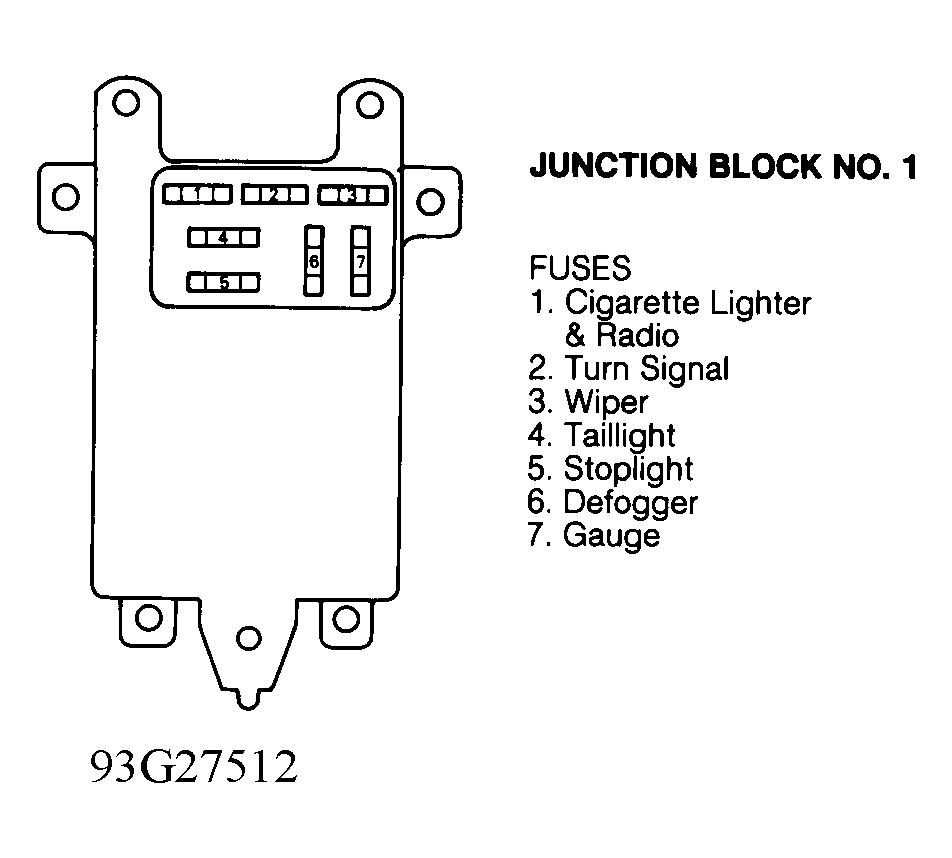

| No. 1 (Junction Block) | Behind lower left side of instrument panel. See Figure & Figure . | |

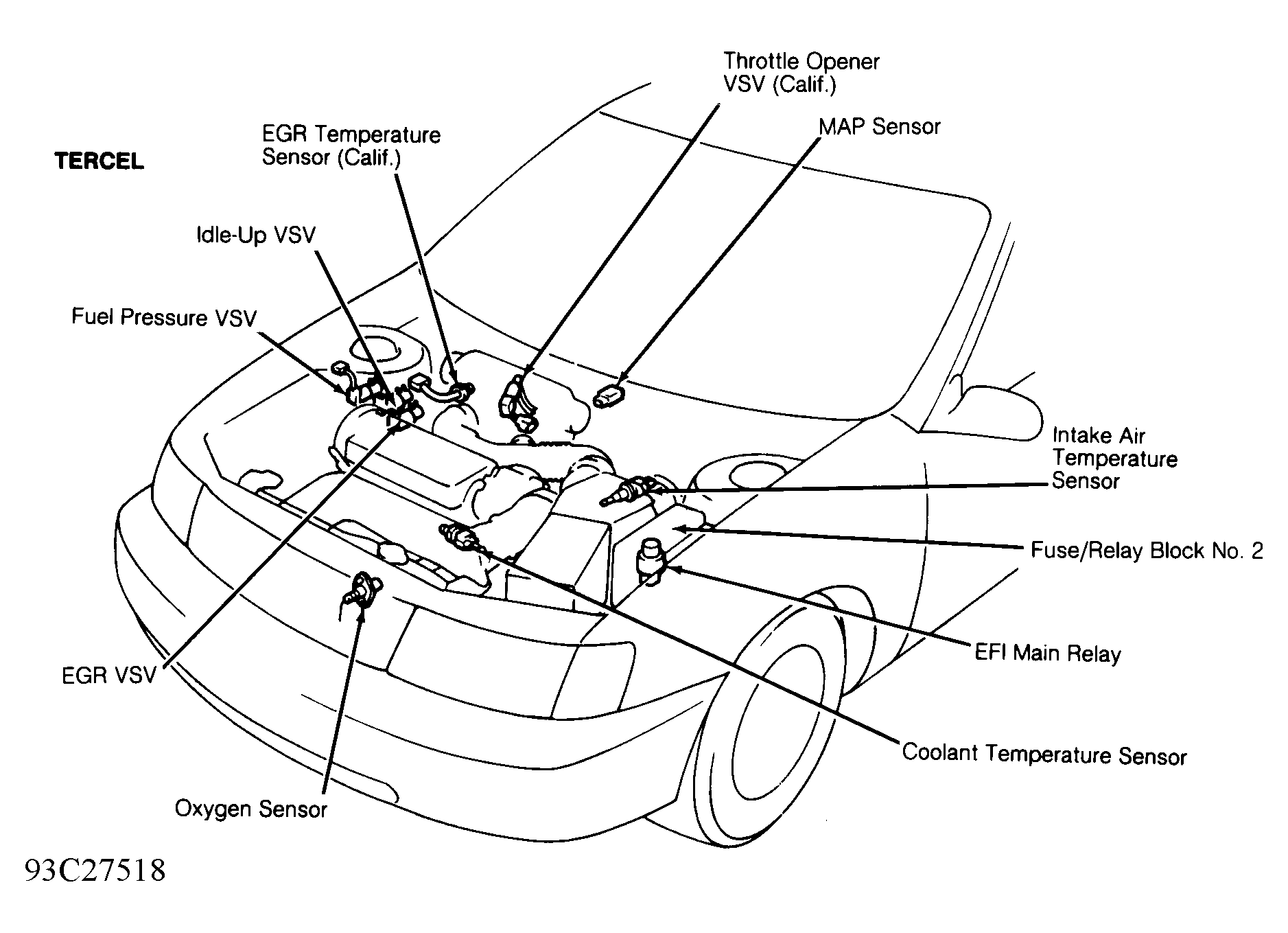

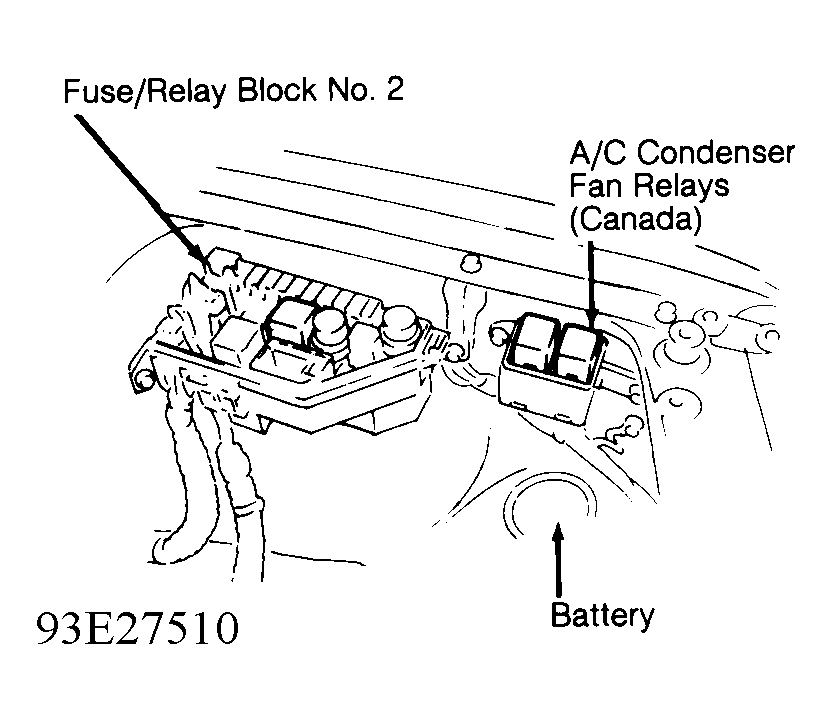

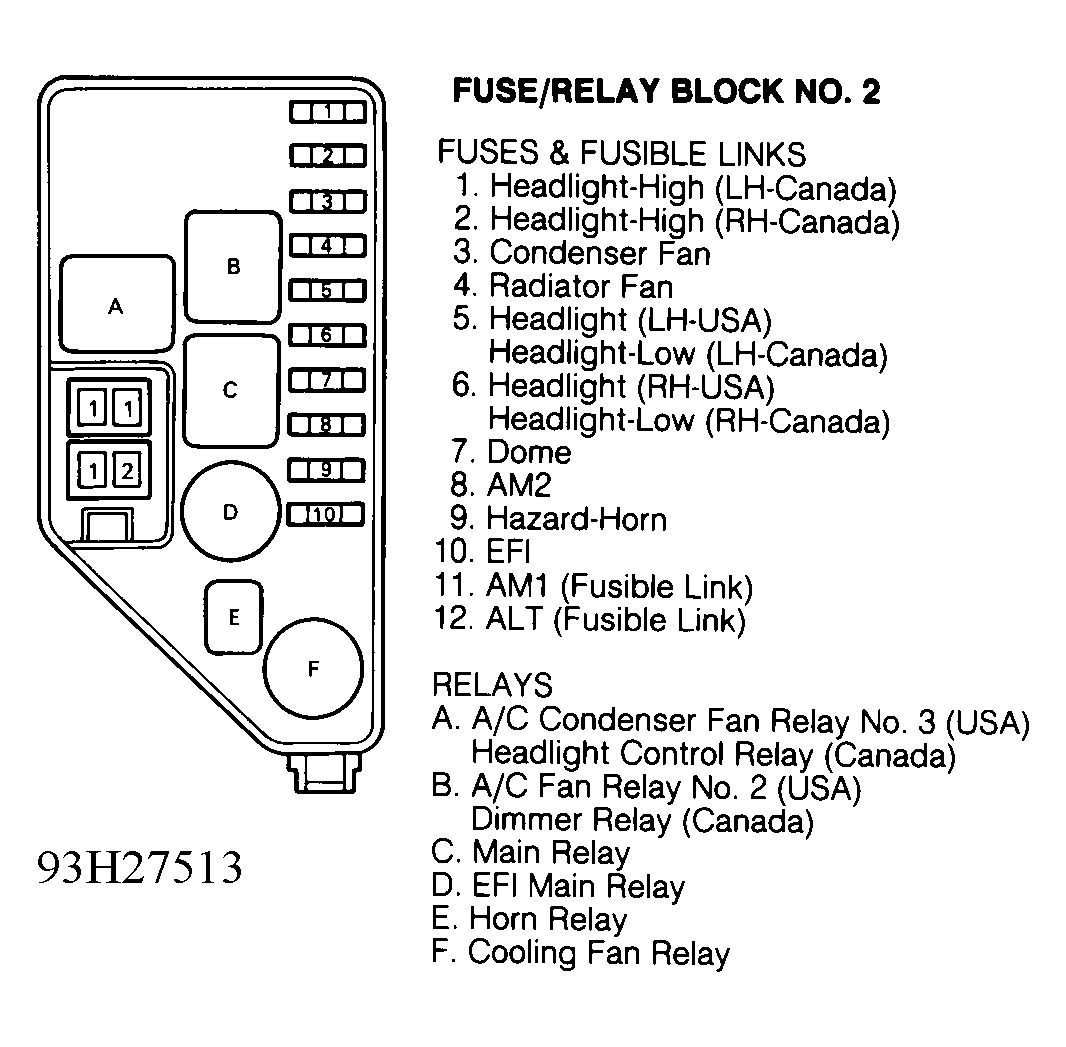

| No. 2 | In engine compartment, in front of left shock tower. See Figure, Figure & Figure . | |

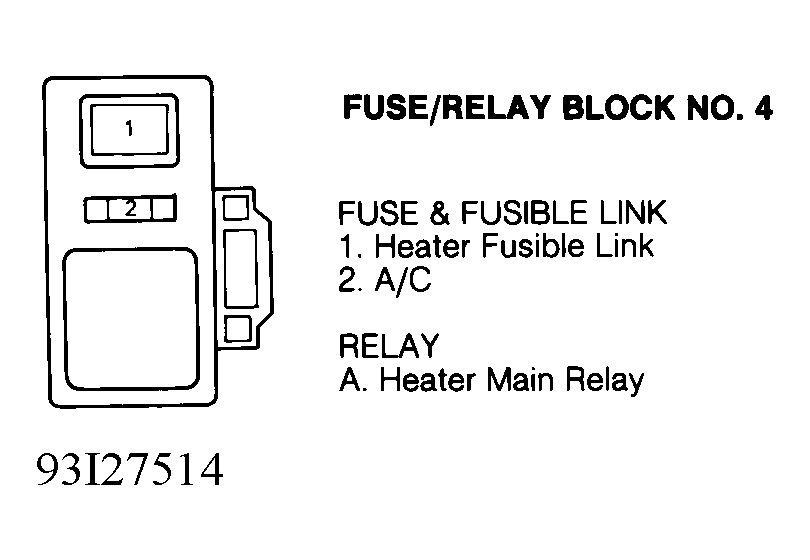

| No. 4 | Near right kick panel, right side of glove box. See Figure & Figure . | |

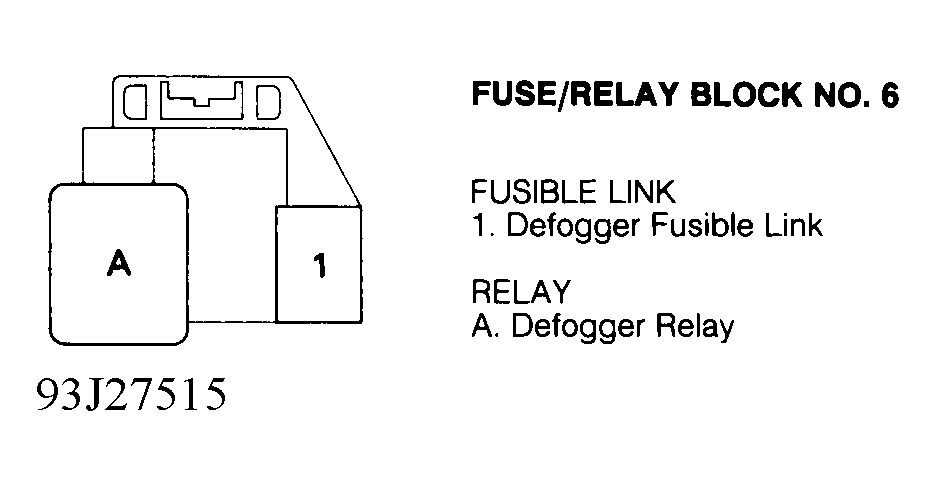

| No. 6 | Behind lower left side of instrument panel, above junction block No. See Figure & Figure . | |
| Fusible Links | In fuse/relay blocks. See Figure, Figure & Figure . | |
