Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers & Main Fuses | ||
| A/C Fuse (For Rear A/C) | Behind right side of dash, left side of glove box. See Figure. | |
| Front Heater CB | In fuse/relay block No. 1. See Figure. | |

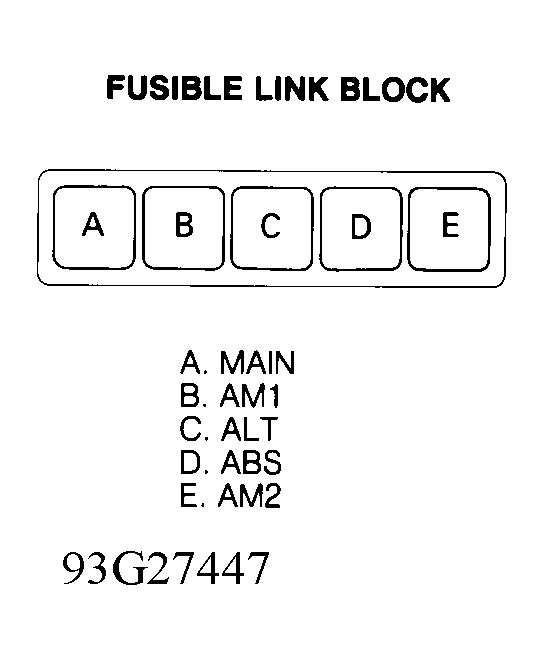

| Fusible Links | In fusible link block mounted to right side of battery. See Figure. | |
| Power Door CB | In fuse/relay block No. 1. See Figure. | |
| Power Main CB (Accessories) | In fuse/relay block No. 1. See Figure. | |

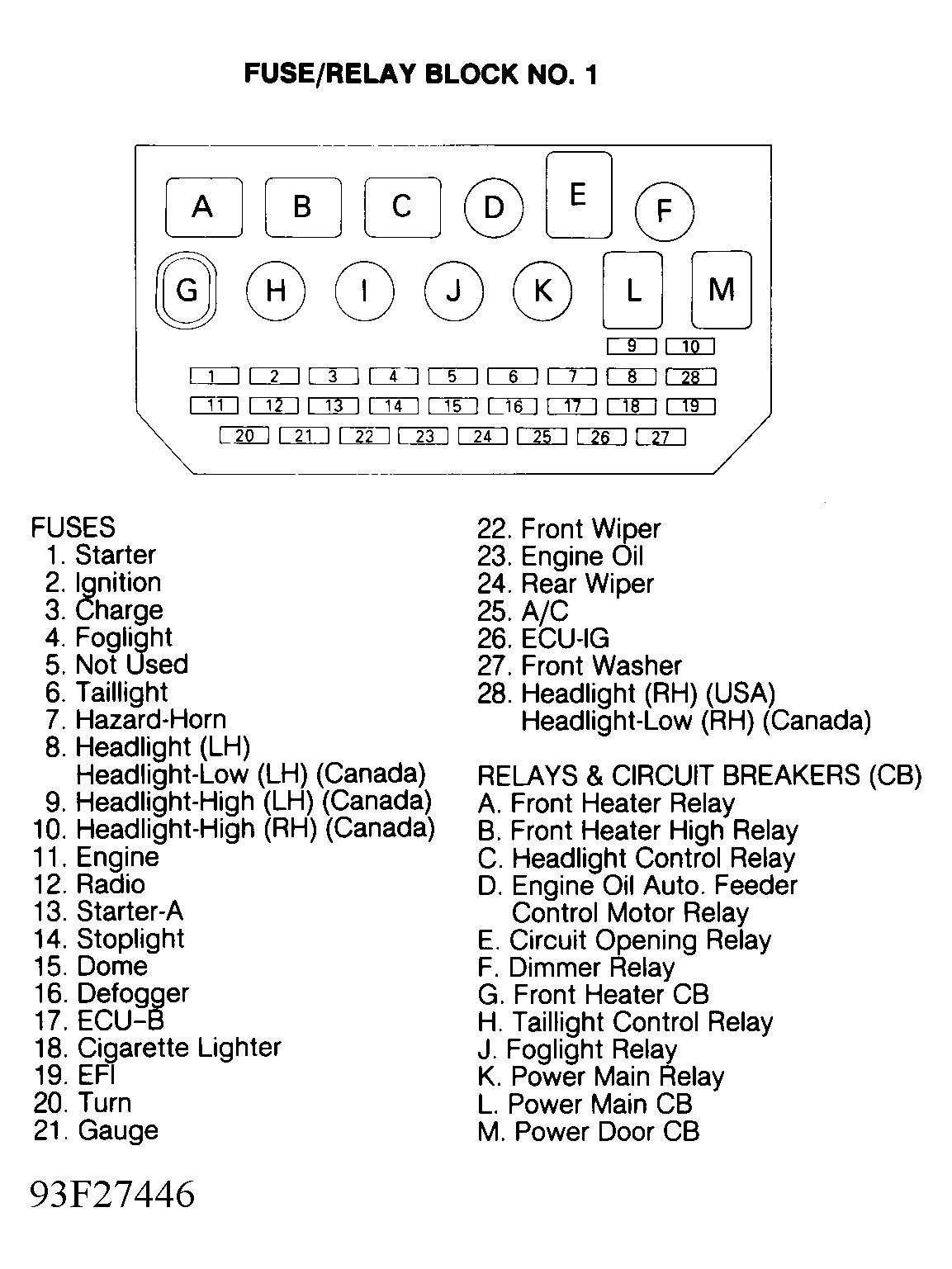

| Fuse/Relay Block No. 1 | Inside top of center console. See Figure & Figure . | |
| Relay Block No. 2 | Behind instrument cluster. See Figure. | |
