All Others

Air temperature sensor is an integral part of airflow meter. Check resistance at terminals E2 and THA of airflow meter. See AIRFLOW METER RESISTANCE SPECIFICATIONS  table.

Fig 1: Air Temperature Sensor Chart (Camry, Celica, Paseo & Tercel)
G93B79583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

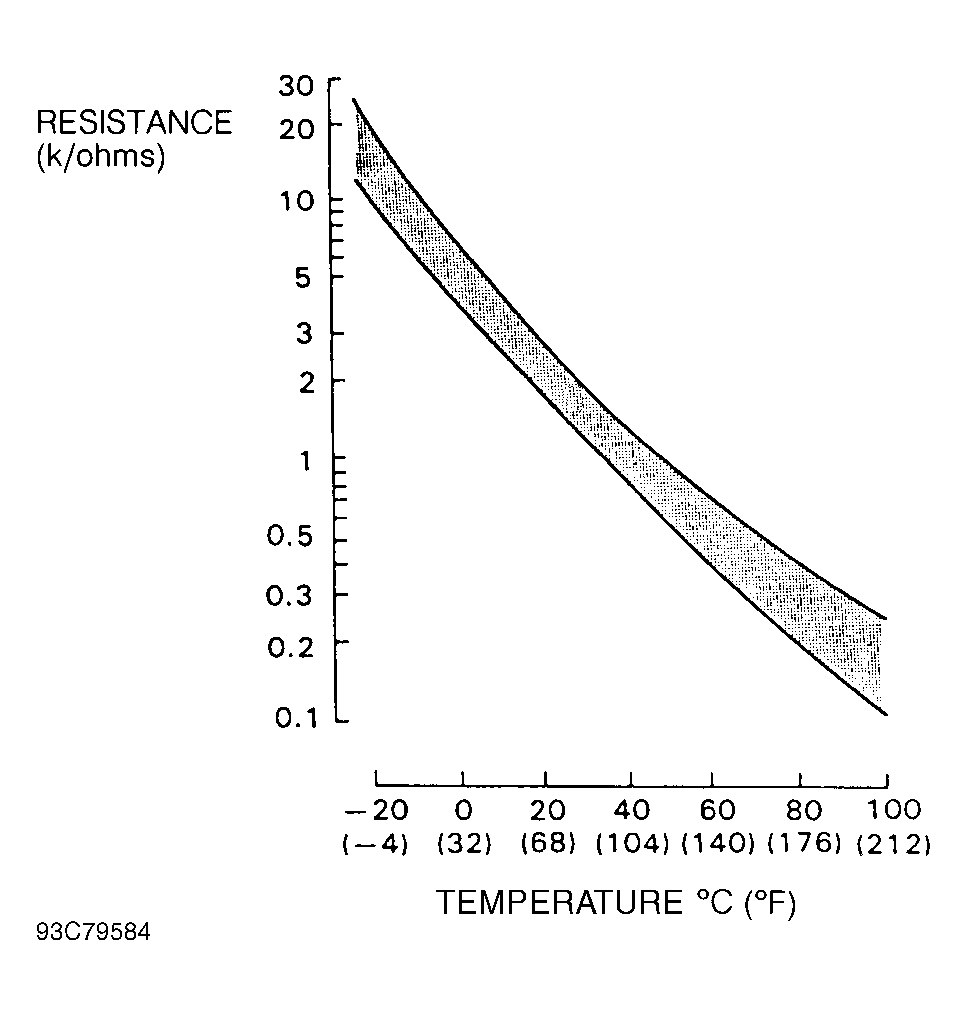

Fig 2: Air Temperature Sensor Chart (Except Camry, Celica, Paseo & Tercel)
G93C79584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
