Engine Controls - Tests W/Codes
>>
Trouble Code Diagnostic Charts
>>
Code 14 - Ignition Signal
Code 14 - Ignition Signal
NOTE:
To check ignition components, see
SYSTEM/COMPONENT TESTS
article in this section.

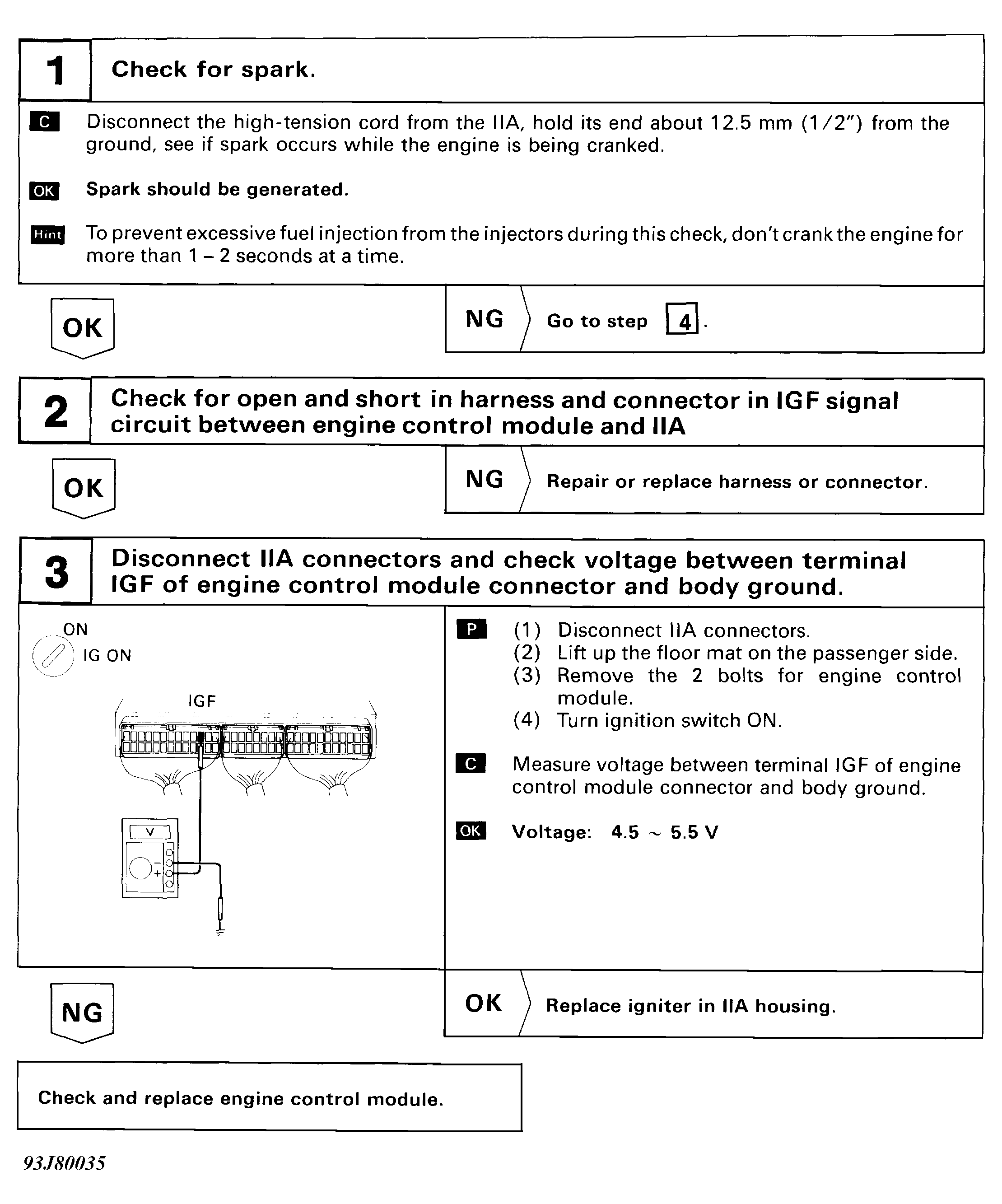

Fig 1: Code 14 Flow Chart - Ignition Signal (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

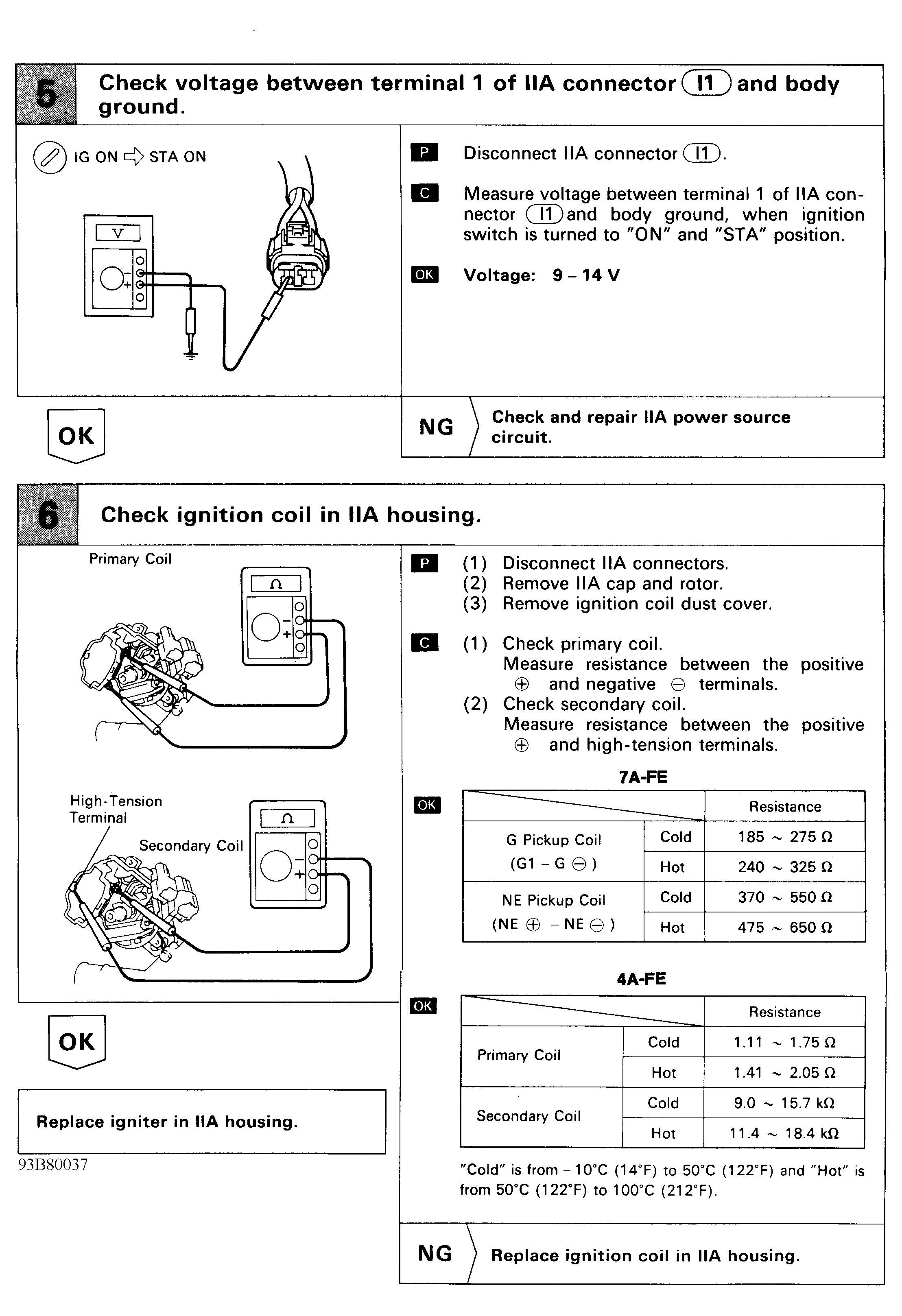

Fig 2: Code 14 Flow Chart - Ignition Signal (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

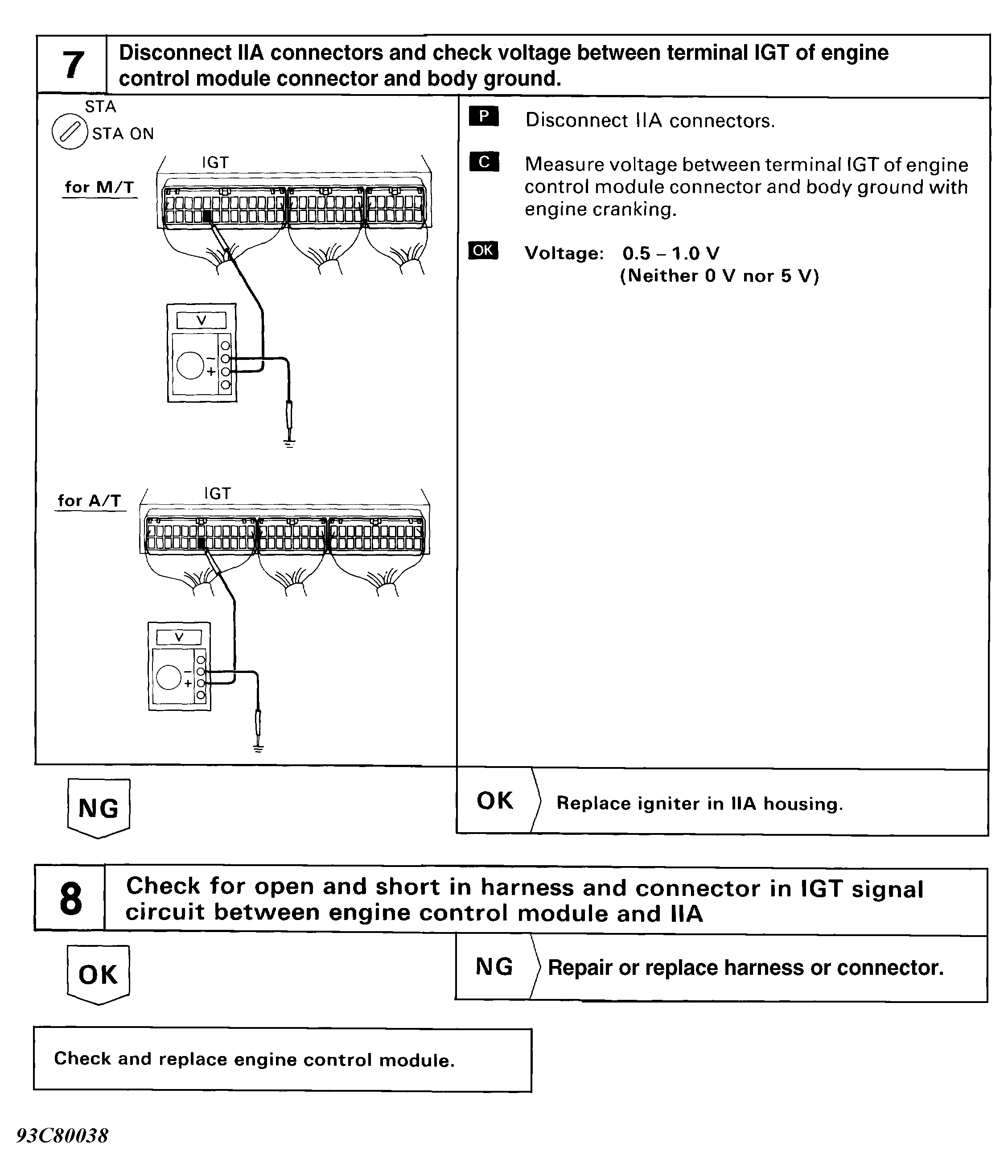

Fig 3: Code 14 Flow Chart - Ignition Signal (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

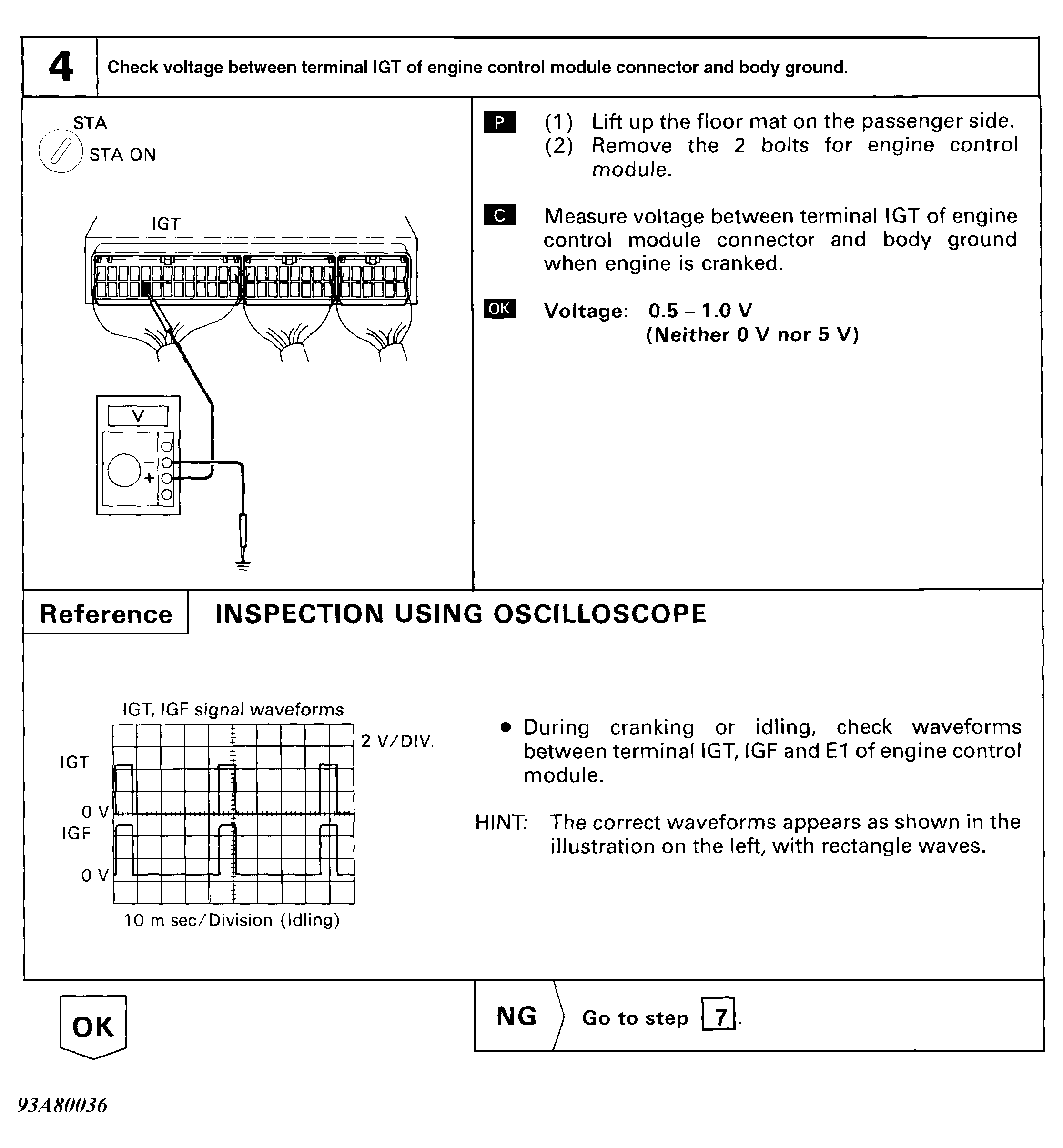

Fig 4: Code 14 Flow Chart - Ignition Signal (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
