Home >> Toyota >> 1993 >> Corolla Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Trouble Code Diagnostic Charts >> Code 31 - Map Sensor Signal

Code 31 - Map Sensor Signal

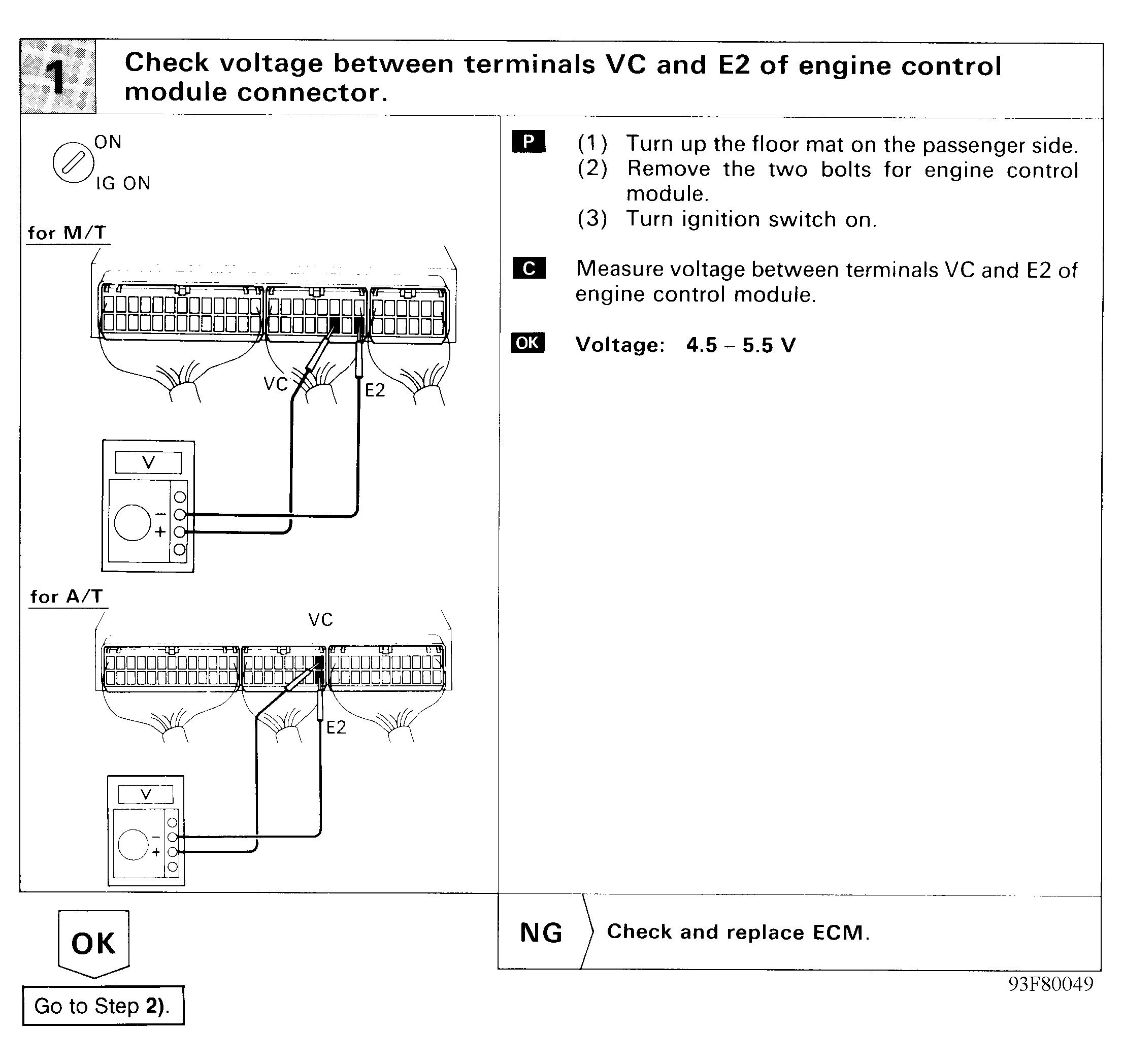

Fig 1: Code 31 Flow Chart - MAP Sensor Signal (1 Of 2)
G93F80049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

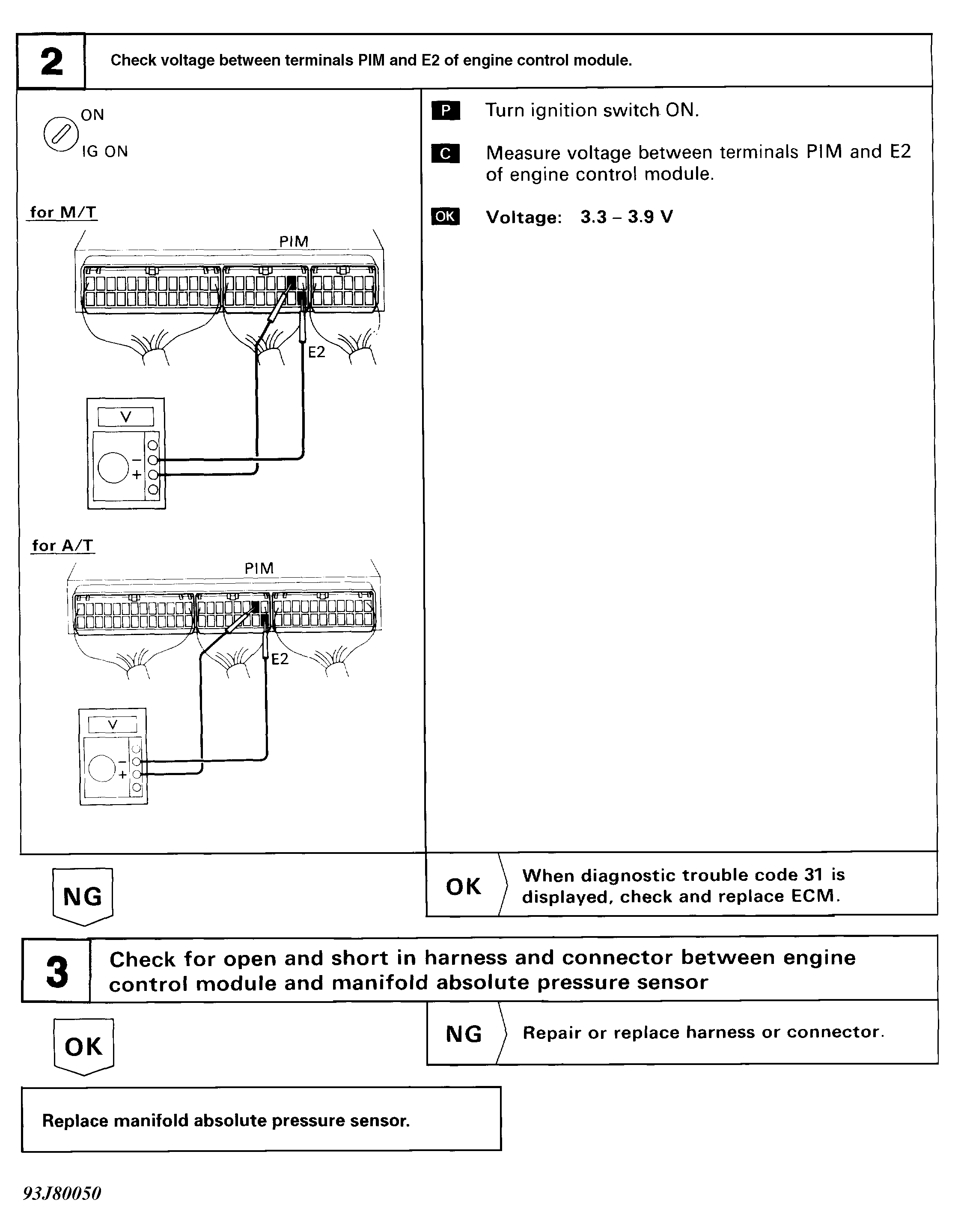

Fig 2: Code 31 Flow Chart - MAP Sensor Signal (2 Of 2)
G93J80050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
