Sensor Rotors: Notes

Inspect sensor rotor serrations for scratches, cracks, missing teeth, or warping. Replace drive shaft or hub as necessary if rotor is damaged.

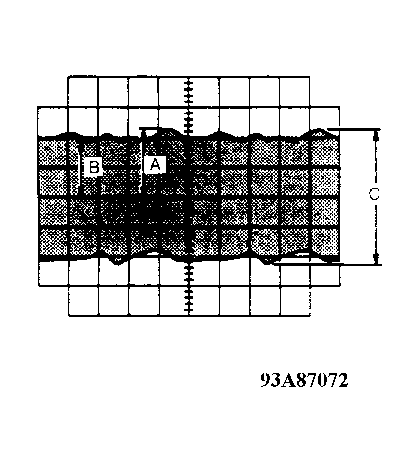

Fig 1: Checking Speed Sensor Output Waveform
G93A87072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
