Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

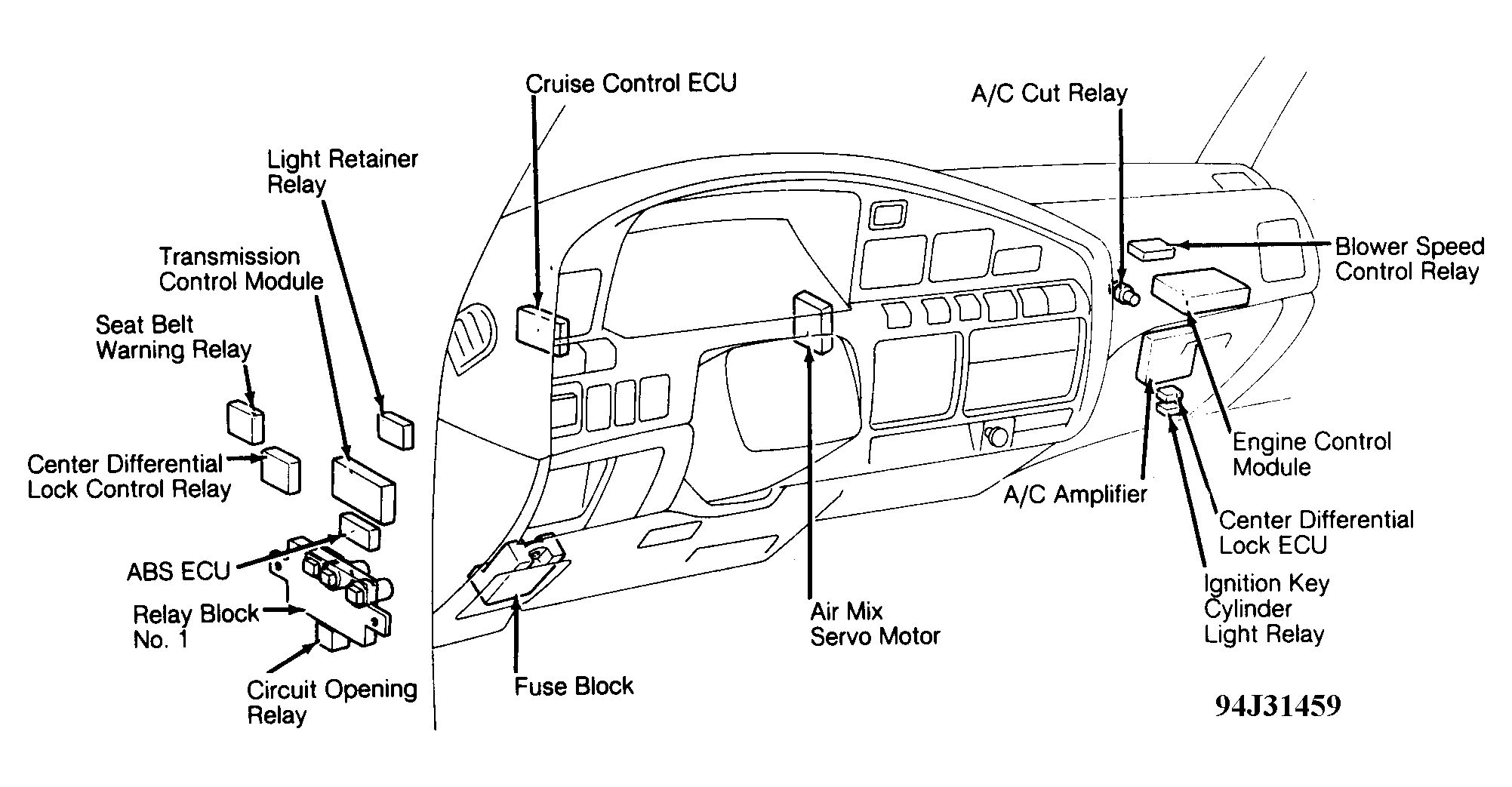

| ABS ECU | Behind left kick panel, above relay block No. 1. See Figure. |
| Center Differential Lock ECU | Under right side of dash. See Figure. |
| Cruise Control ECU | Behind left side of instrument panel, left of cluster. See Figure. |

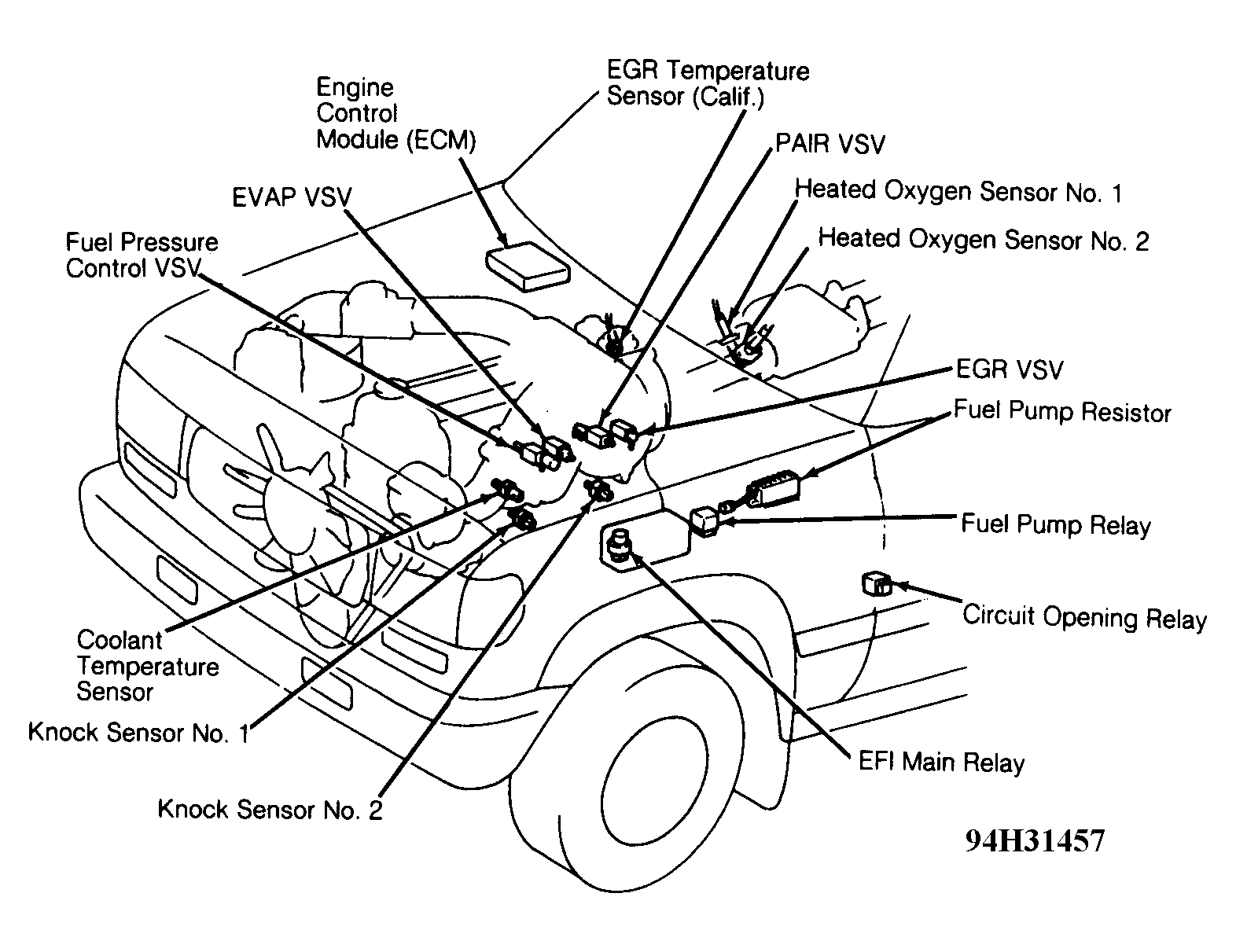

| ECM (Engine Control Module) | Behind right side of dash, above glove box. See Figure, Figure & Figure . |
| Shift Lock ECU | Under center console, near gearshift lever. |

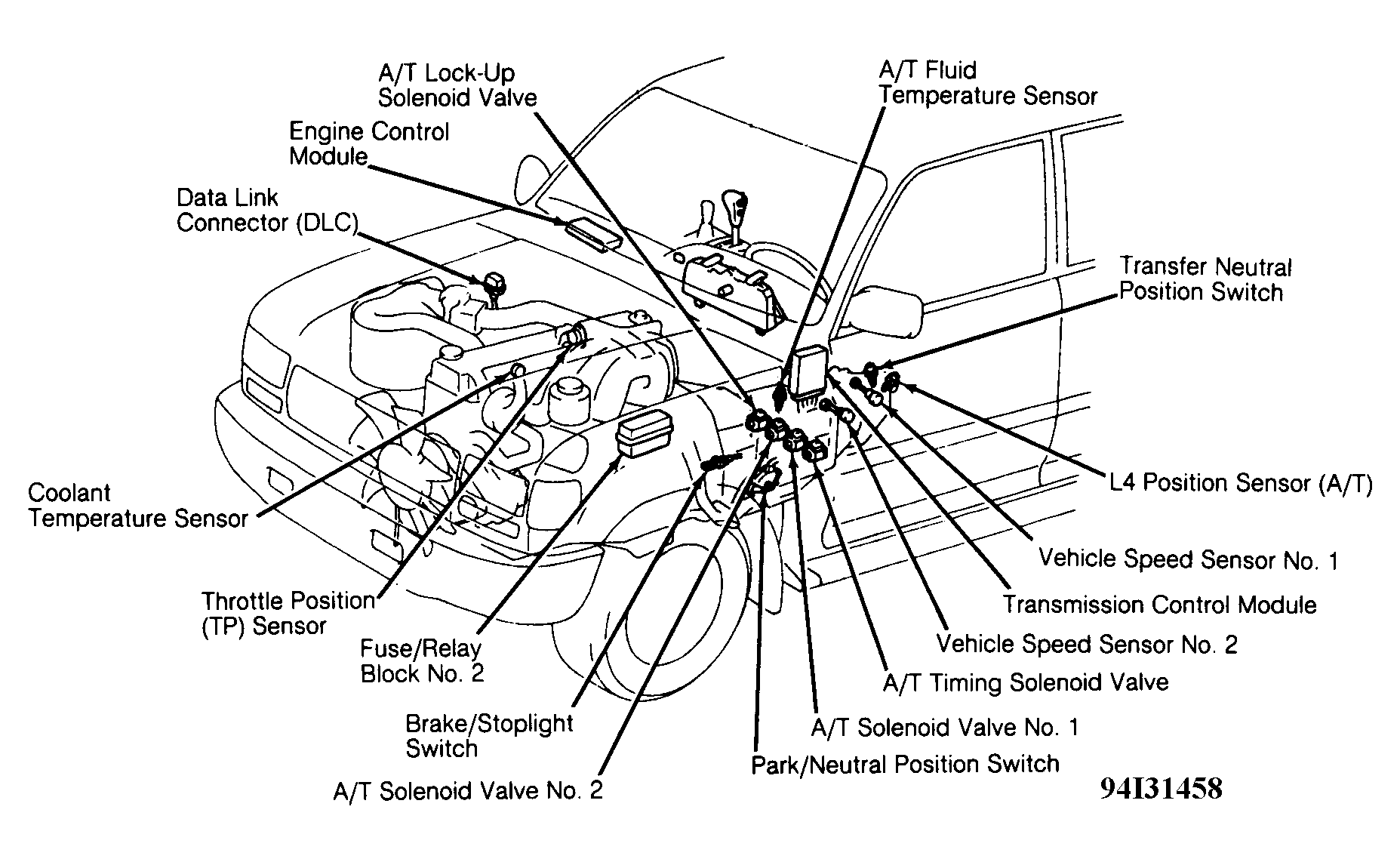

| TCM (Transmission Control Module) | Behind left kick panel, above relay block No. 1. See Figure & Figure . |
