Pick-Up Coil Resistance

Note pick-up coil terminal identification on the distributor. See Fig 1 and Fig 2. Using ohmmeter, measure resistance between specified terminals. See PICK-UP COIL RESISTANCE SPECIFICATIONS table. Replace distributor assembly if pick-up coil resistance is not within specification.

PICK-UP COIL RESISTANCE SPECIFICATIONS

Application

Pick-Up Coil Terminals

⁽¹⁾ Ohms

Turbo

G1 & G-

125-200

Turbo

G2 & G-

125-200

Turbo

NE & G-

155-250

Non-Turbo

G+ & G-

185-275

Non-Turbo

NE+ & NE-

370-550

⁽¹⁾	Specification is with pick-up coil temperature of 14-122°F (-10-50°C).

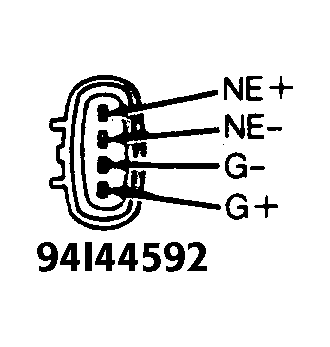

Fig 1: Identifying Pick-Up Coil Terminals (Non-Turbo)

Fig 2: Identifying Pick-Up Coil Terminals (Turbo)
