ECM Power Source Check
ECM Power Source Check

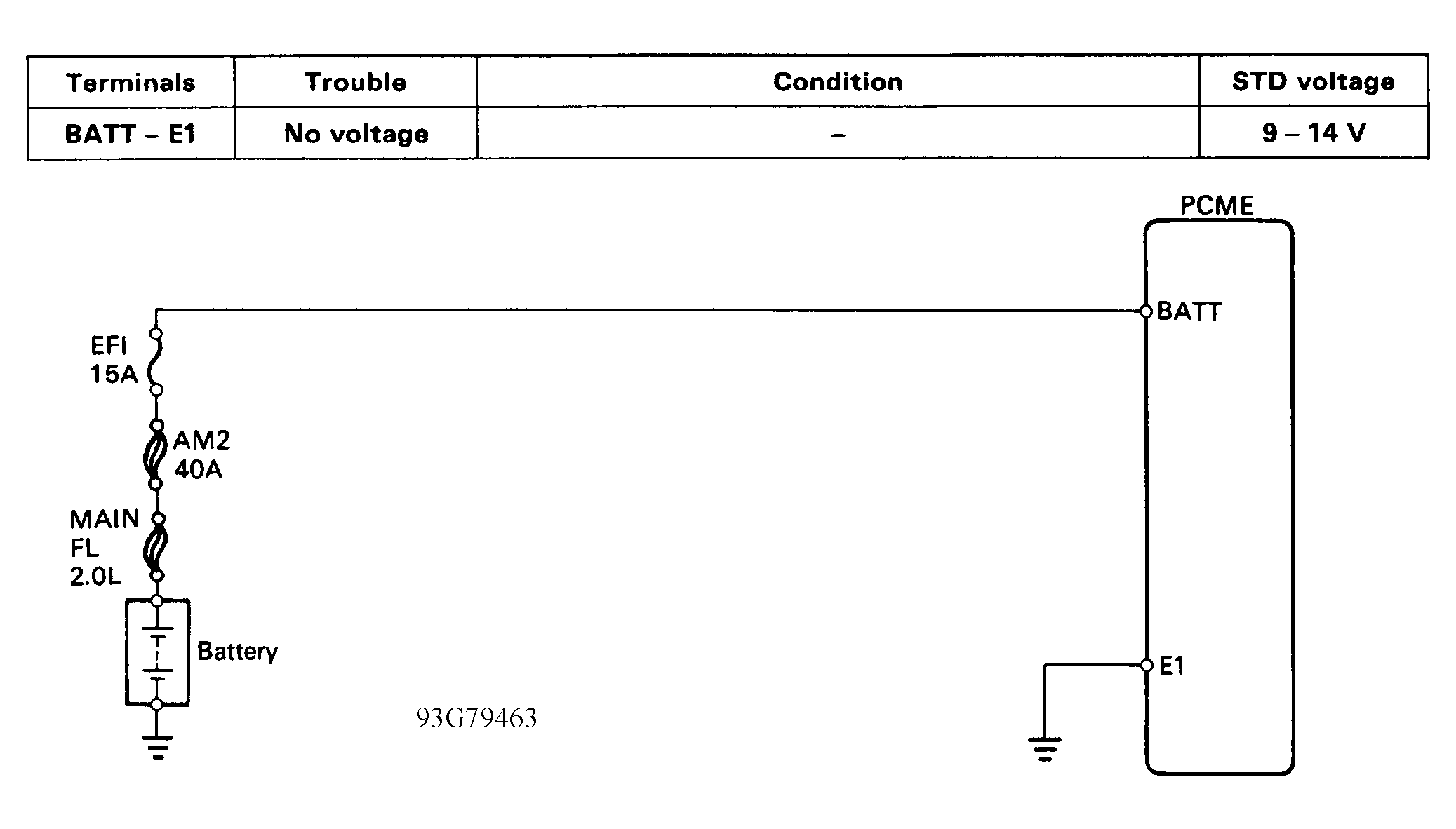

Fig 1: ECM Power Source Check - Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

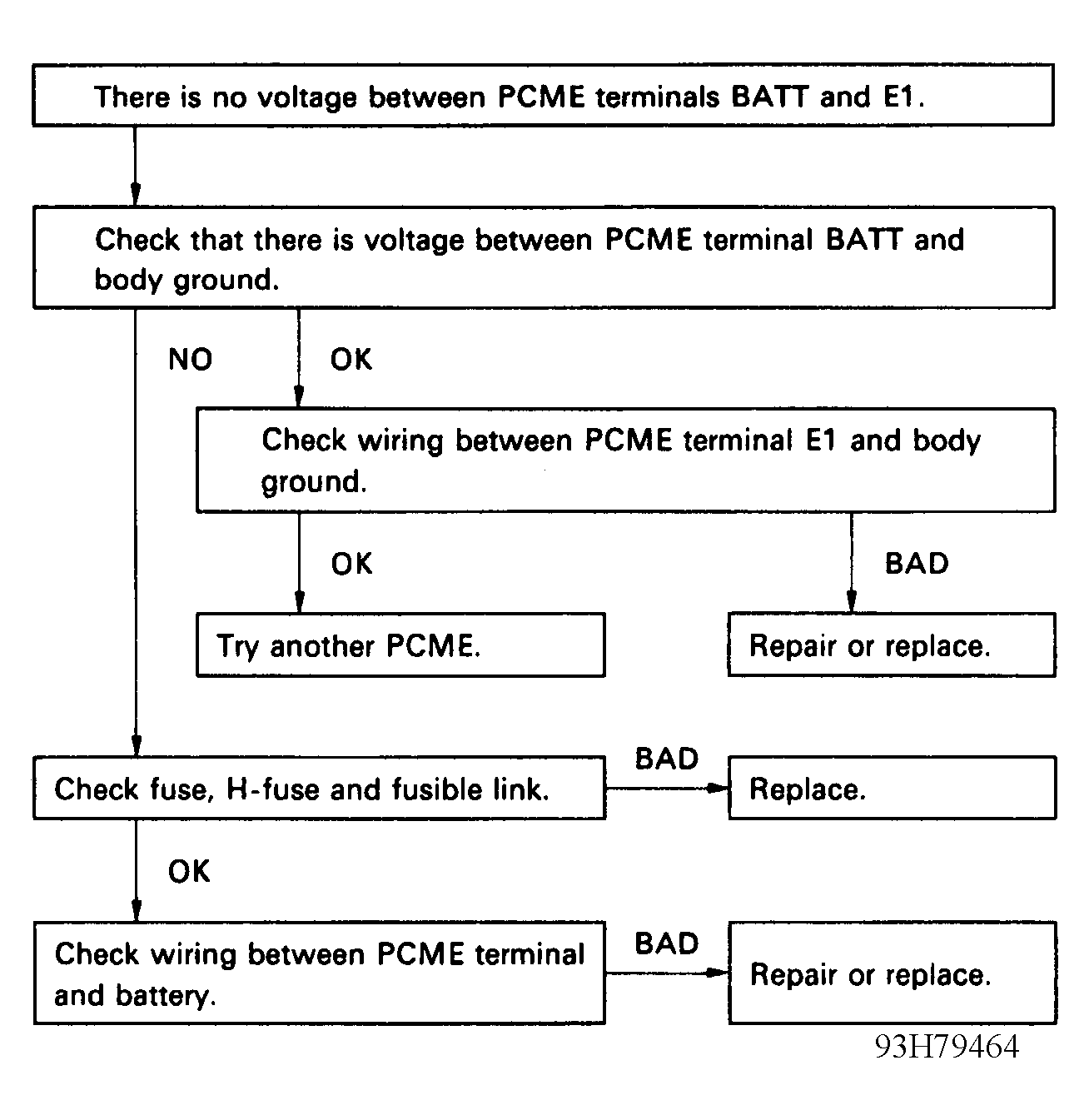

Fig 2: ECM Power Source Check - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
