Engine Controls - Tests W/Codes
>>
Trouble Code Charts
>>
ECM Terminal Identification
ECM Terminal Identification

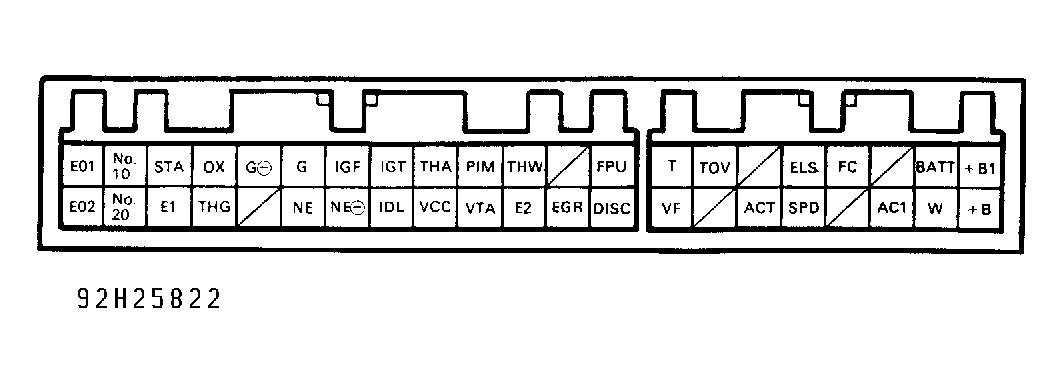

Fig 1: ECM Terminal Identification (Automatic Transaxle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ECM Terminal Identification (Manual Transaxle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
