Control Units

CONTROL UNITS LOCATION

Component	Location

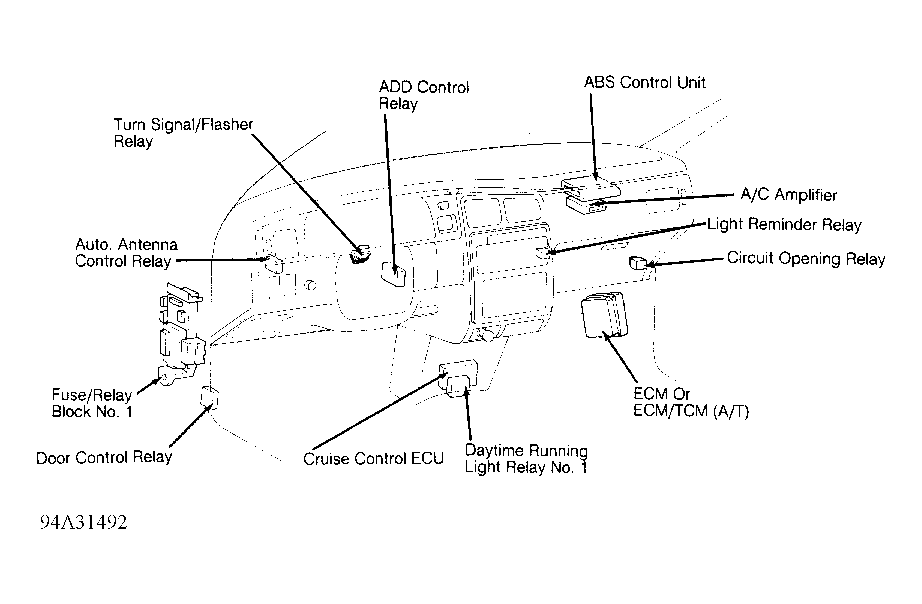

ABS Control Unit	Behind right side of dash, above glove box. See Figure.
Cruise Control ECU	Under center of dash. See Figure.

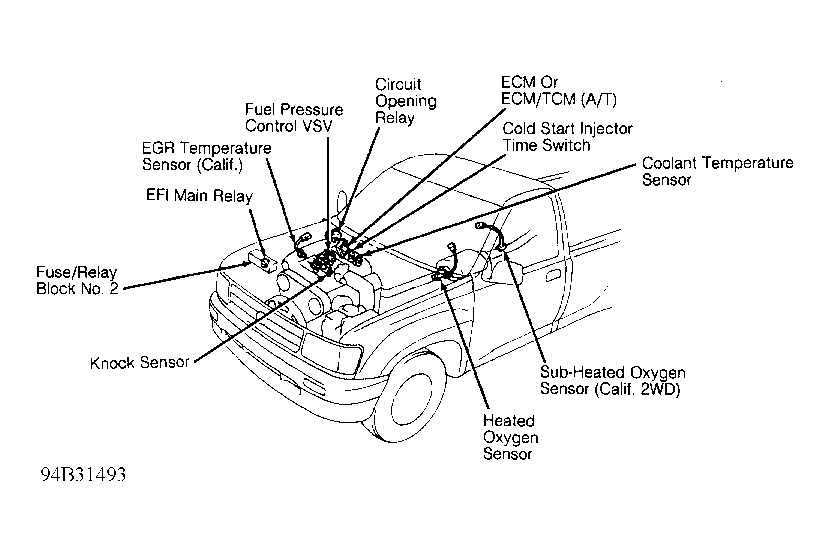

ECM	Behind right kick panel. See Figure & Figure .
ECM/TCM (A/T)	Behind right kick panel. See Figure & Figure .
