Starter Relay Test

Locate and remove starter relay. See STARTER RELAY LOCATION table. See Fig 2. Using ohmmeter, verify continuity between relay terminals No. 1 and 2. See Fig 1. Continuity should not exist between terminals No. 3 and 5. If continuity is not as indicated, replace relay.
Check relay operation by applying battery voltage through terminals No. 1 and 2. See Fig 1. Continuity should now exist between terminals No. 3 and 5. If relay does not test as indicated, replace relay.

Fig 1: Testing Starter Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

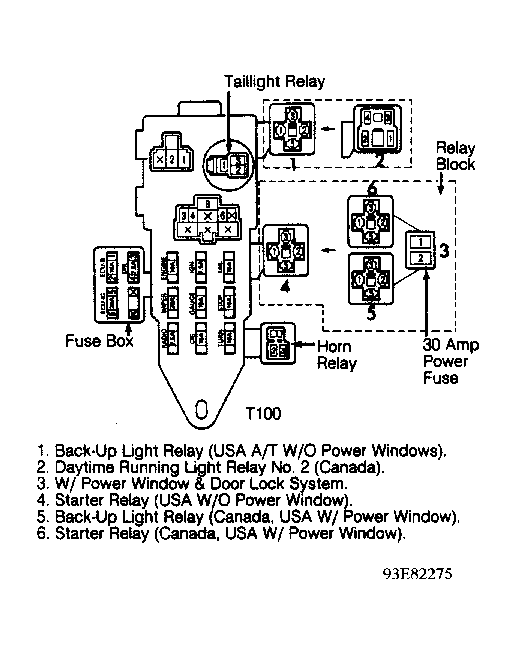

Fig 2: Locating Starter Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STARTER RELAY LOCATION

Application

Location

T100 ⁽¹⁾

Driver Side Relay Box No. 1

⁽¹⁾	On US models without power windows, relay is on side of relay box above horn relay. On Canadian and US models with power windows, relay is on side of relay above back-up light relay.
