Power & Ground Circuits
For testing of power and ground circuits, see information in PIN VOLTAGE CHARTS article. See ECM LOCATION table for identifying ECM mounting locations.
ECM LOCATION
| Model | Location |
|---|---|
| T100 | Behind Passenger's Side Kick Panel |
NOTE:

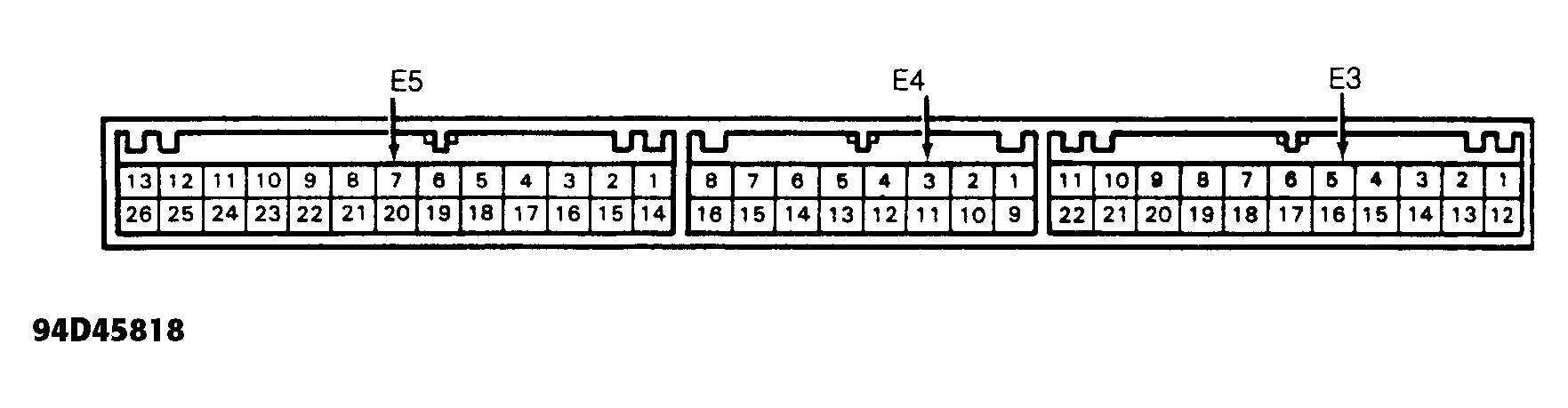

Fig. Fig 1 identifies ECM terminals used for performing tests on various components in this article. For ECM terminal identification on 3.0L, see PIN VOLTAGE CHARTS
article.
