Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G96D03689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

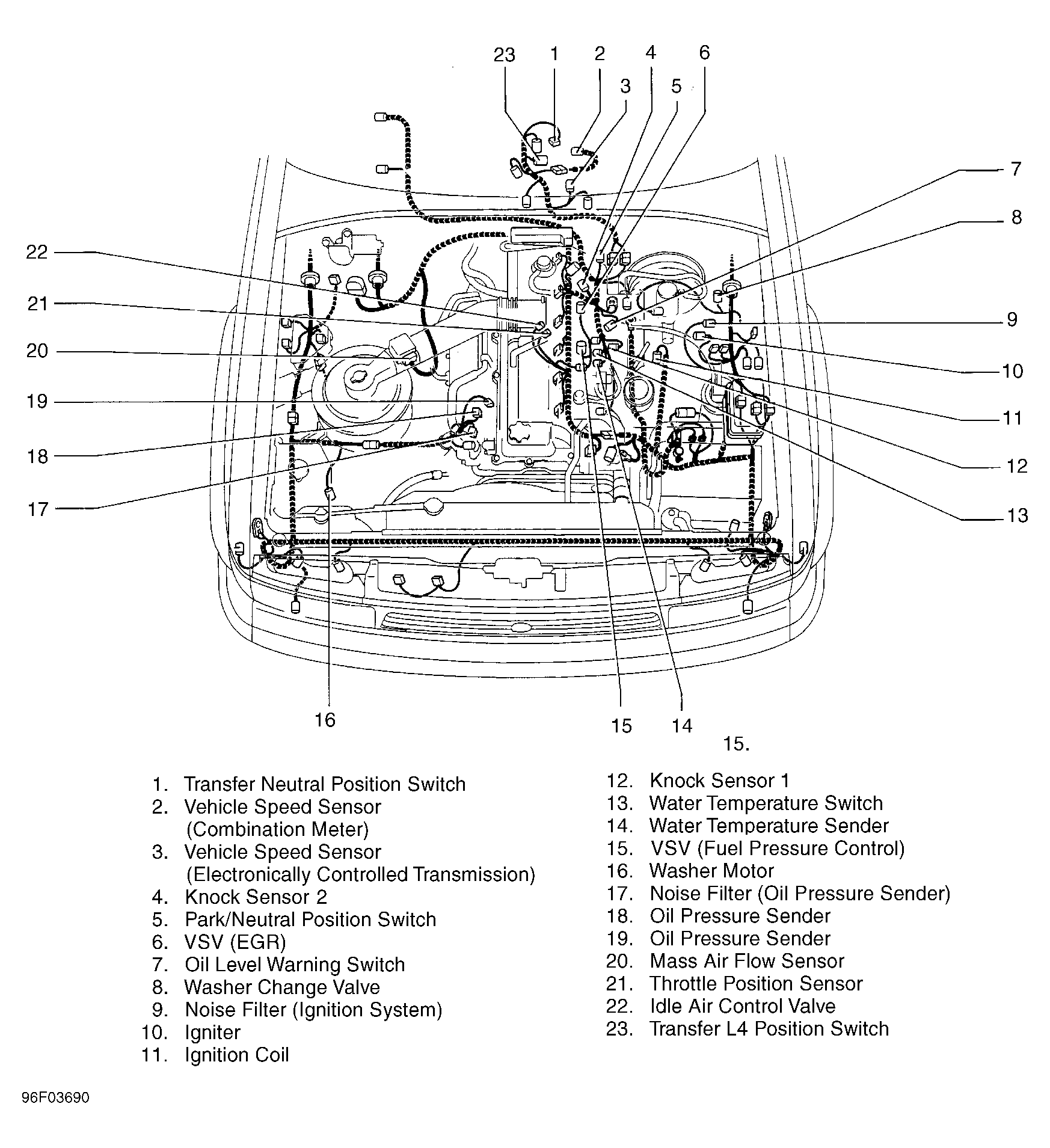

Fig 2: Engine Compartment
G96F03690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Dash
G00145137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Left Side Of Vehicle
G00145138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

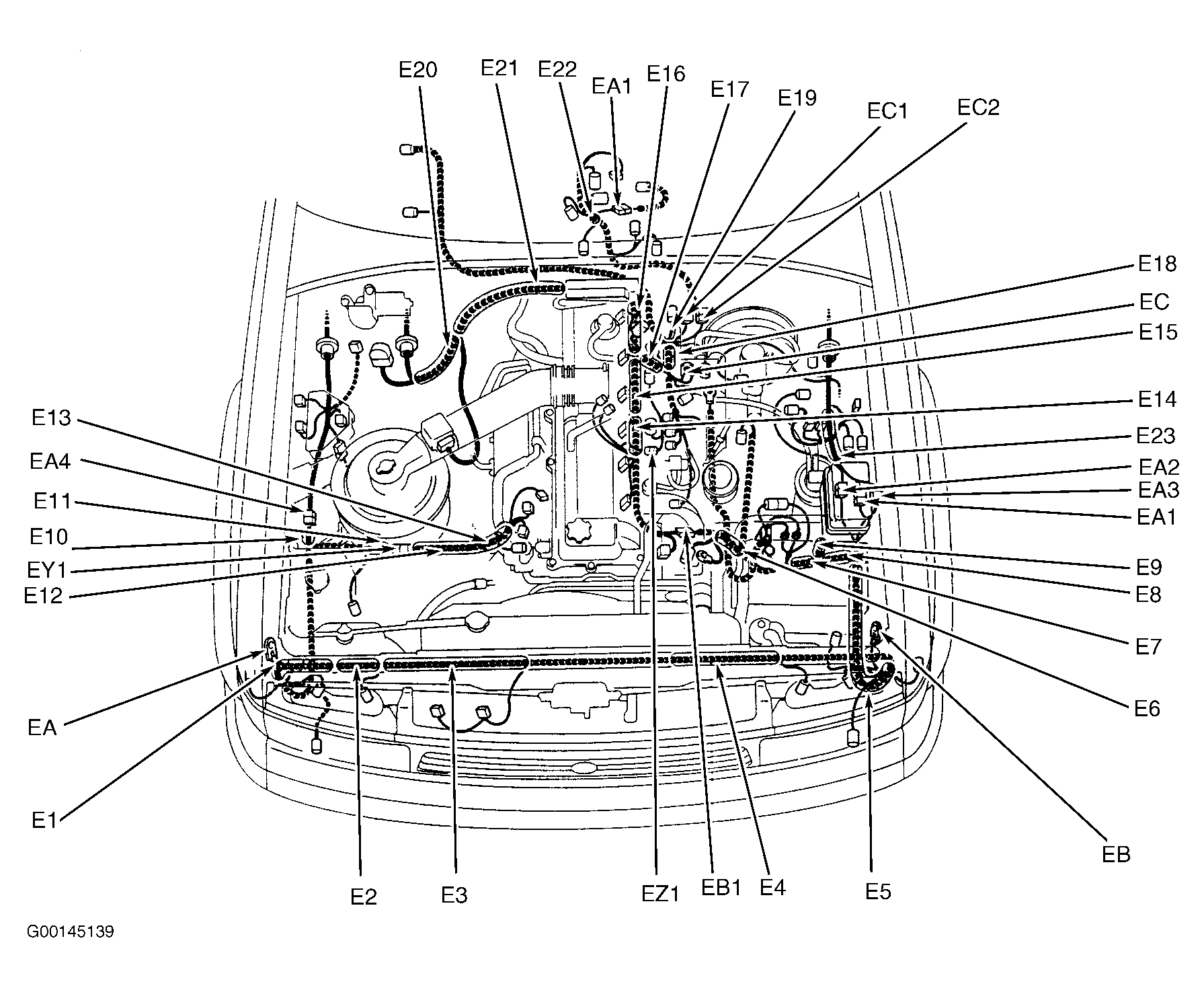

Fig 5: Engine Compartment
G00145139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
