Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

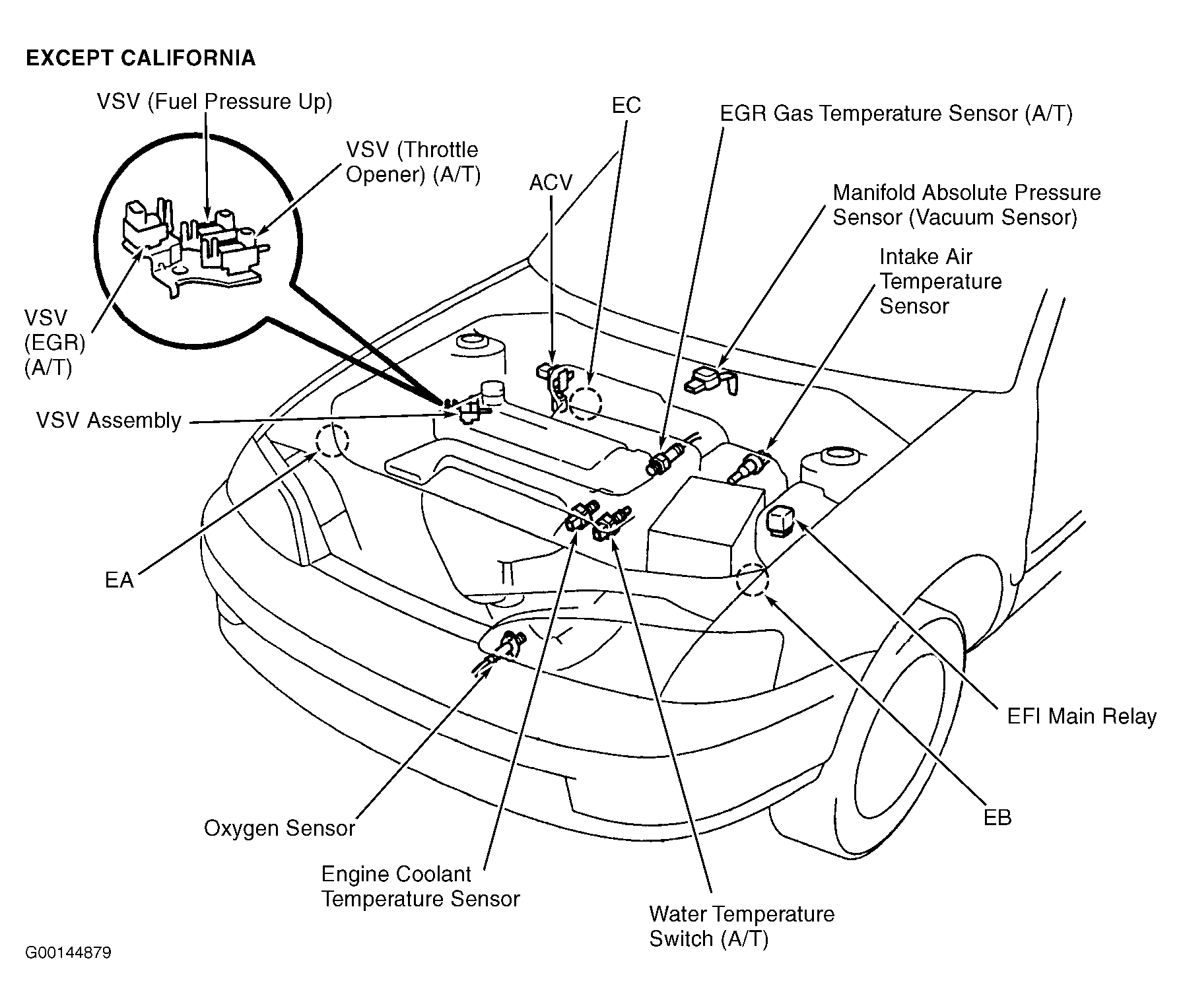

Fig 1: Engine Compartment (Except California)
G00144879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Compartment
G96I03719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Dash
G00144880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

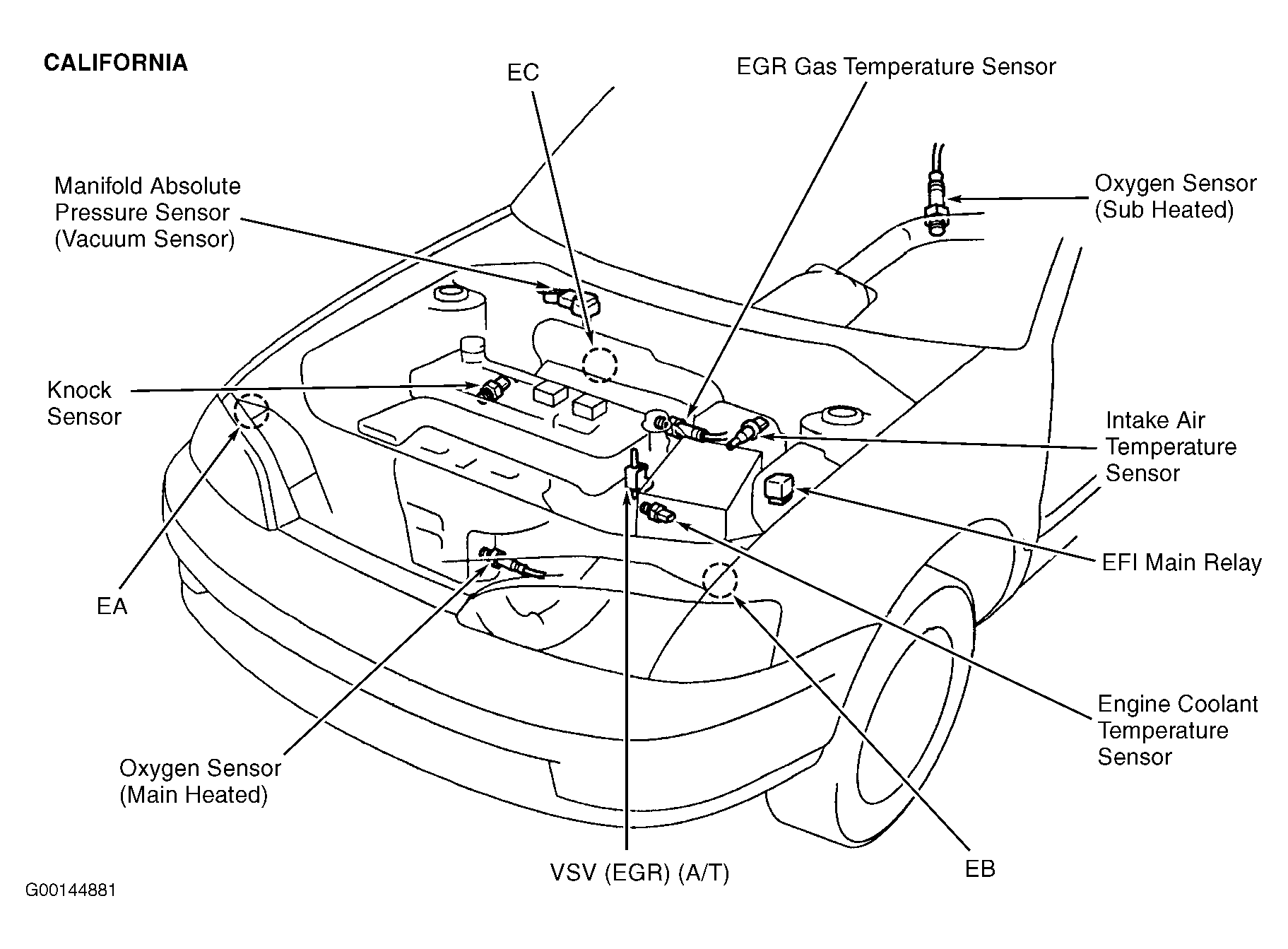

Fig 4: Engine Compartment (California)
G00144881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
