Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

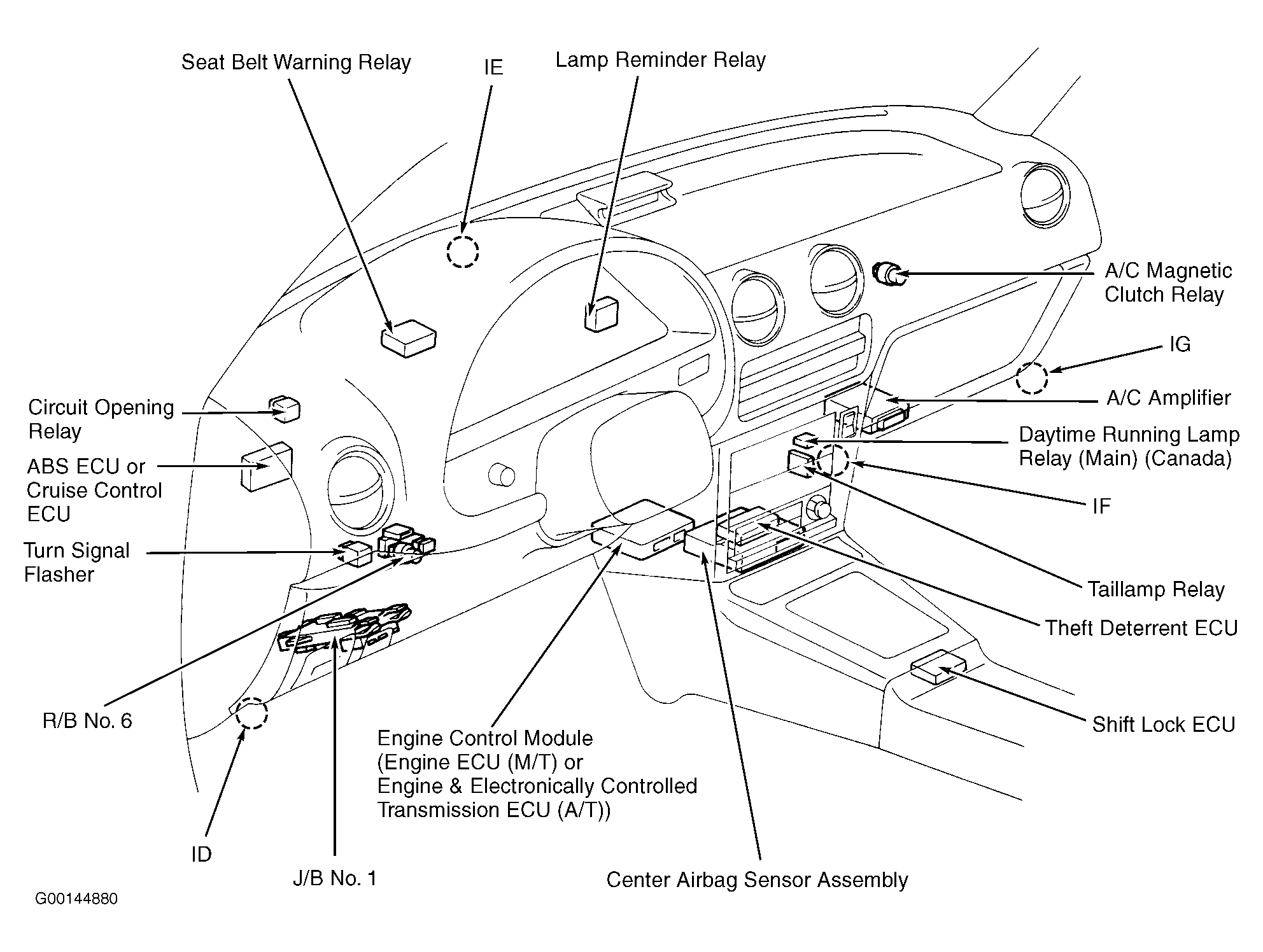

| ABS ECU | Behind dash, left of steering column. See Figure. |
| A/C Amplifier | Behind right side of dash. See Figure. |
| Center Air Bag Sensor Assembly | Behind center of dash. See Figure. |
| Cruise Control ECU | Behind dash, left of steering column. See Figure. |
| Engine Control Module (Engine ECU) (M/T) or Engine & Electronically Controlled Transmission ECU (A/T) | Below center of dash. See Figure. |
| Shift Lock ECU | Below center console, rear of gear selector. See Figure. |
| Theft Deterrent ECU | Behind center of dash. See Figure. |
