Home >> Toyota >> 1995 >> Tercel Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Component Location

Component Location

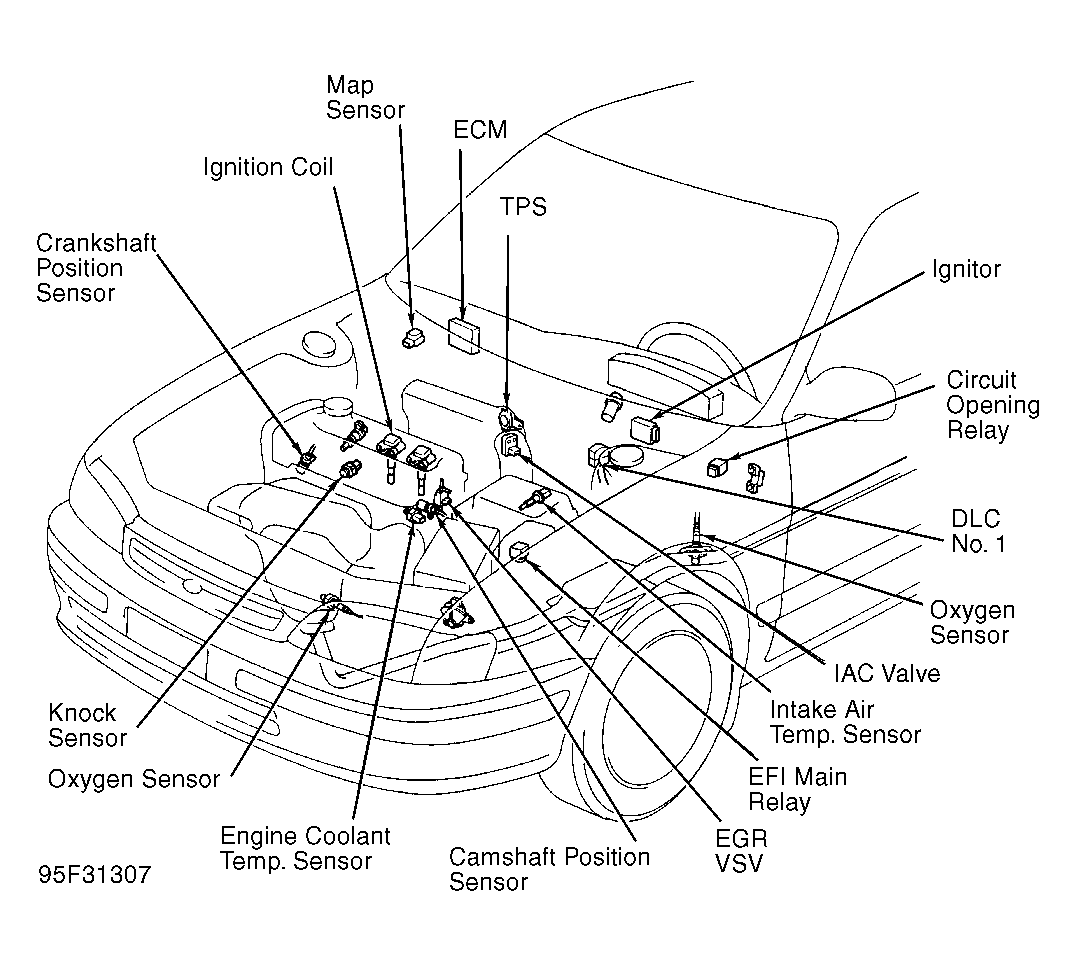

Fig 1: Component Locations

G95F31307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECM LOCATION

Model	Location
Tercel	Behind Glove Box
