Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

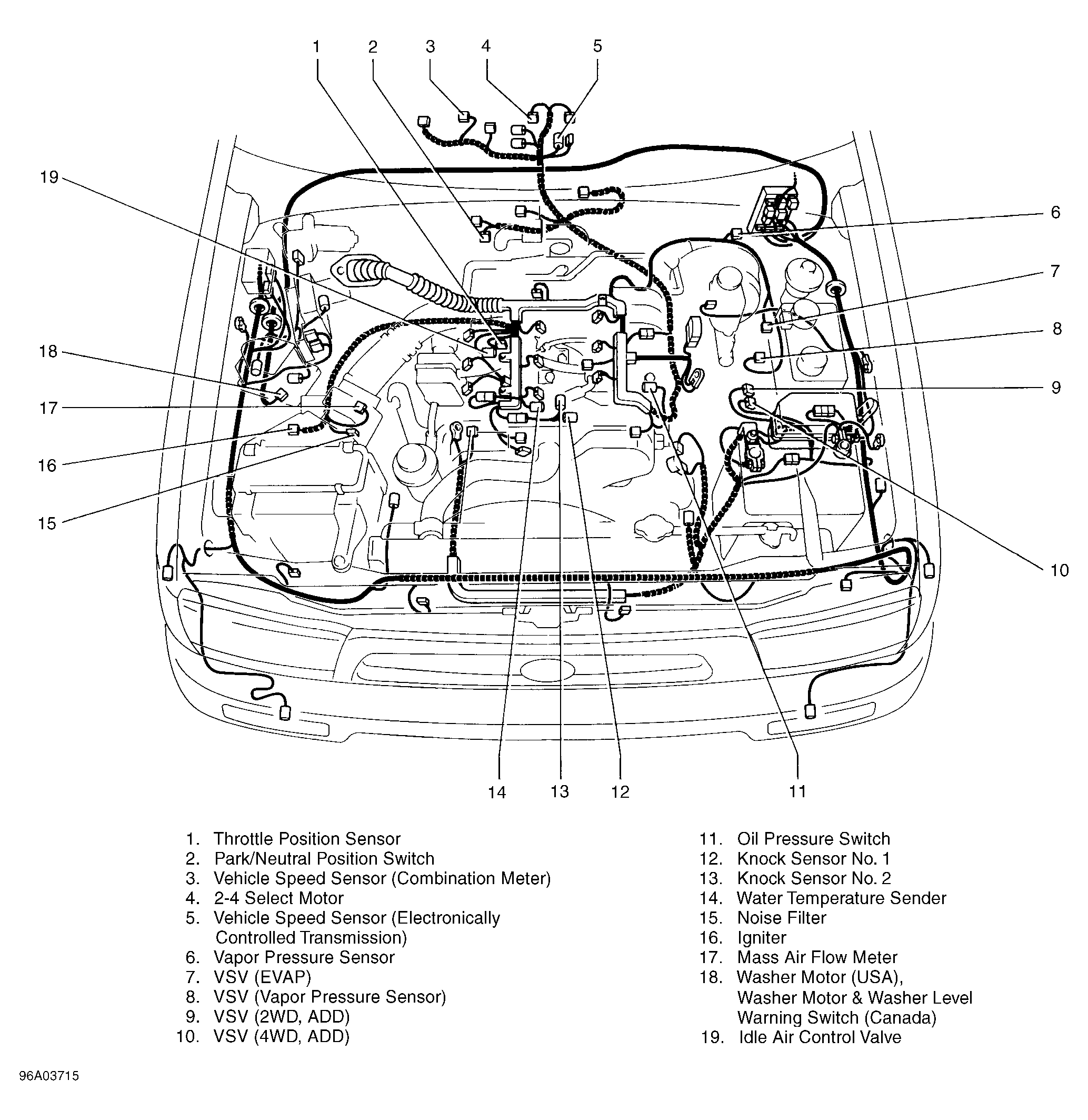

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

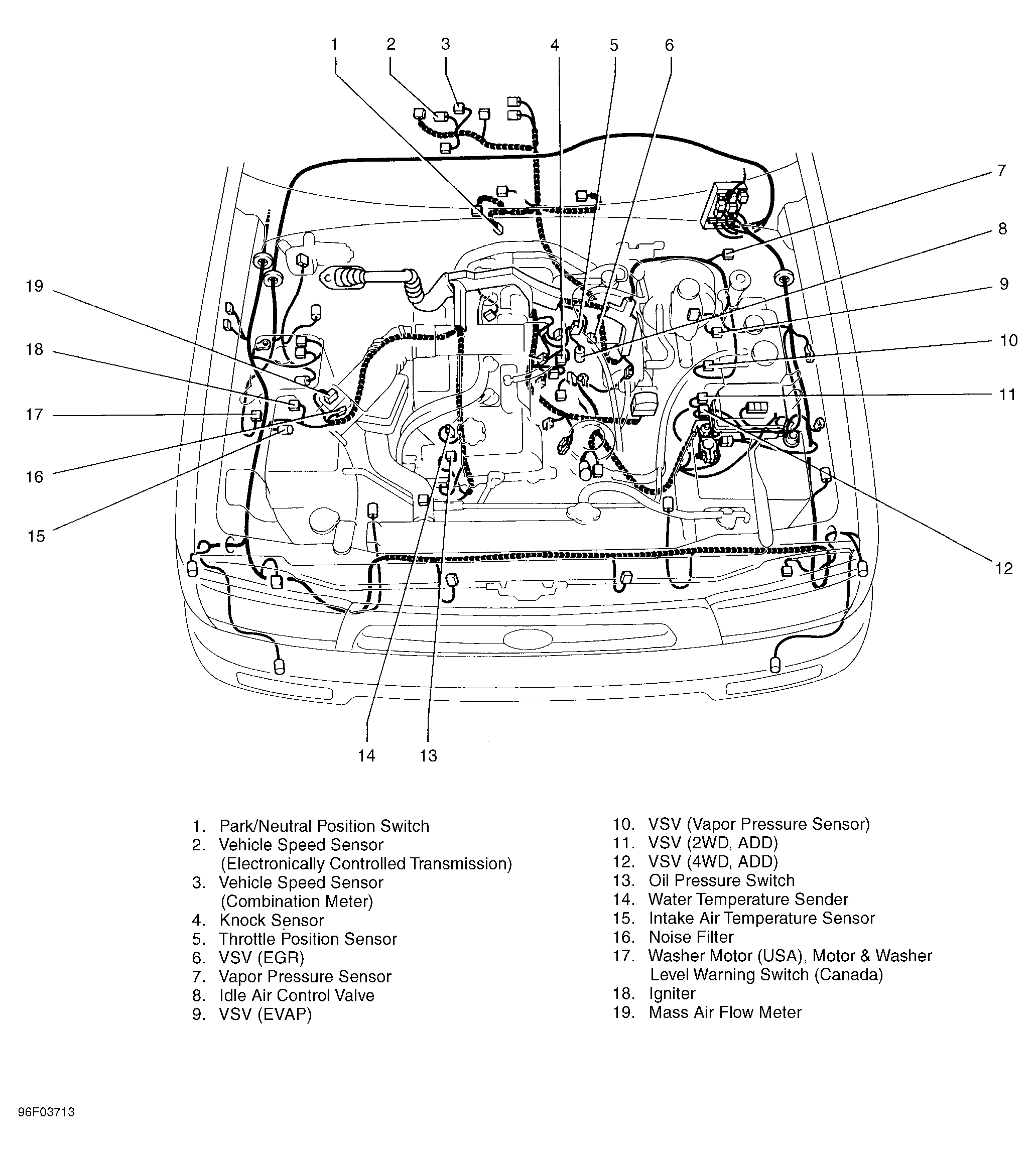

Fig 2: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

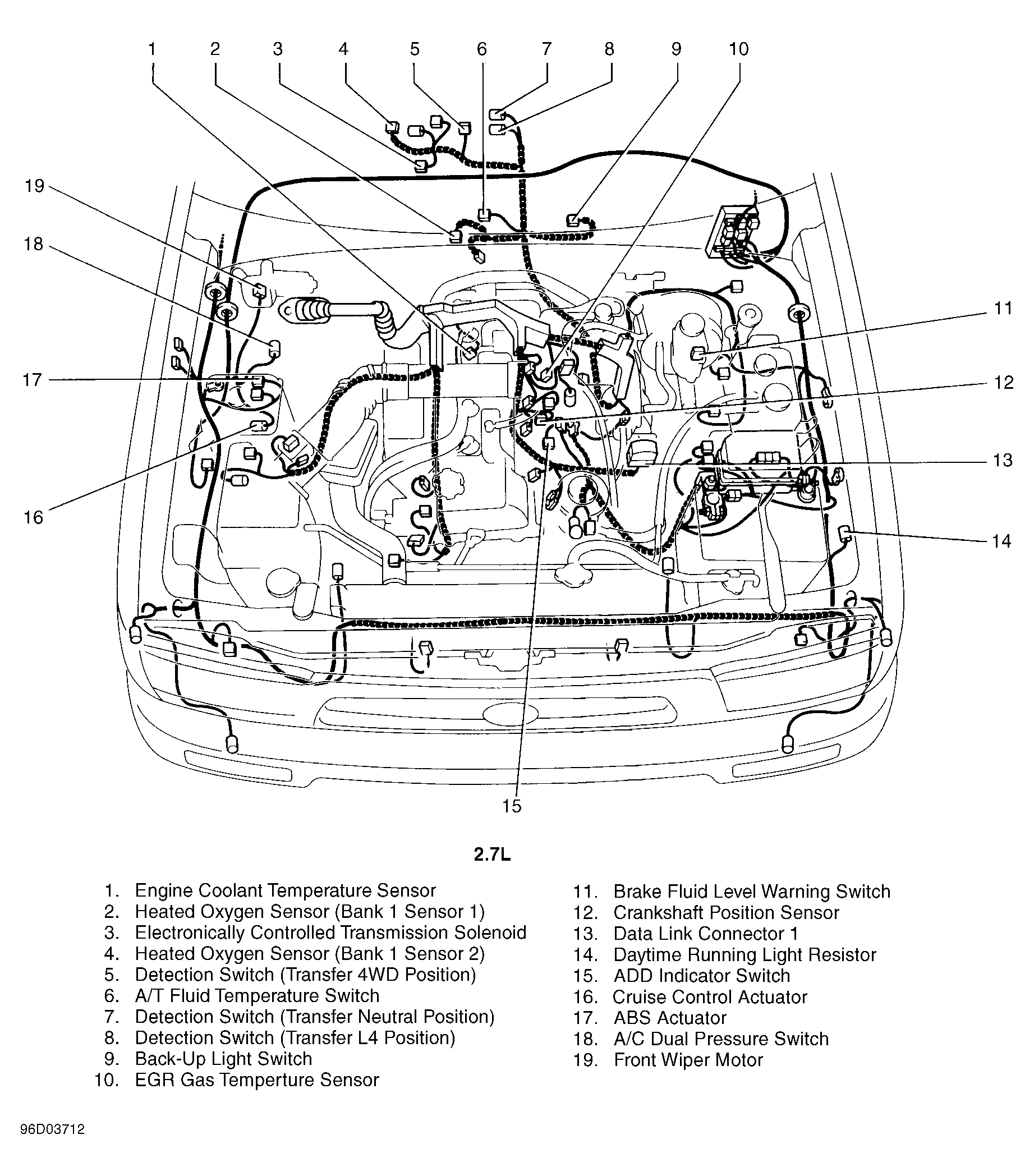

Fig 4: Engine Compartment (2.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

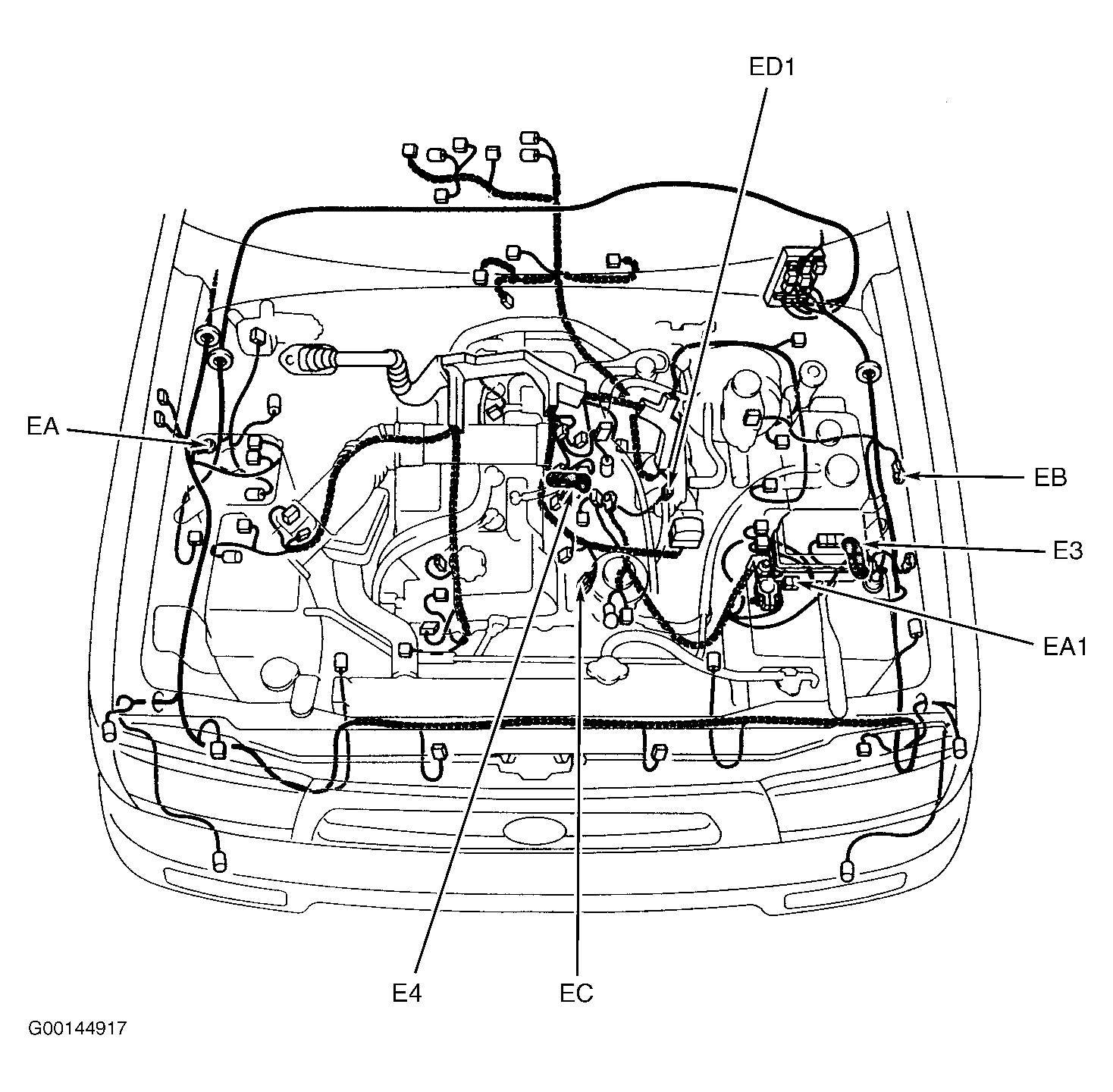

Fig 5: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

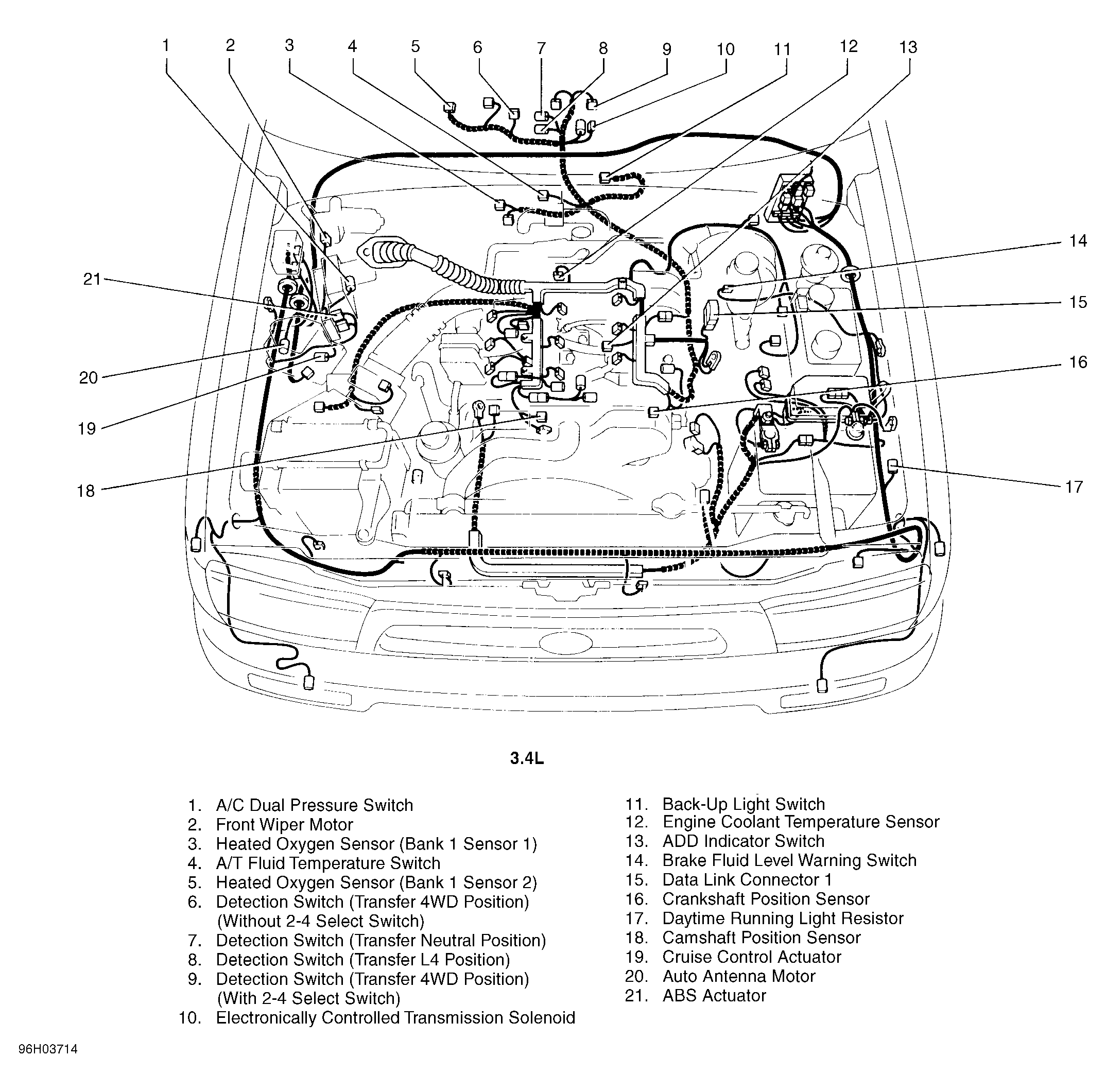

Fig 6: Engine Compartment (3.4L)

Fig 7: Engine Compartment

Fig 8: Engine Compartment (3.4L)

Fig 9: Engine Compartment (2.7L)
