Component Testing

For component testing, see CIRCUIT TESTS. ABS circuits and harness can be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Fig 1.

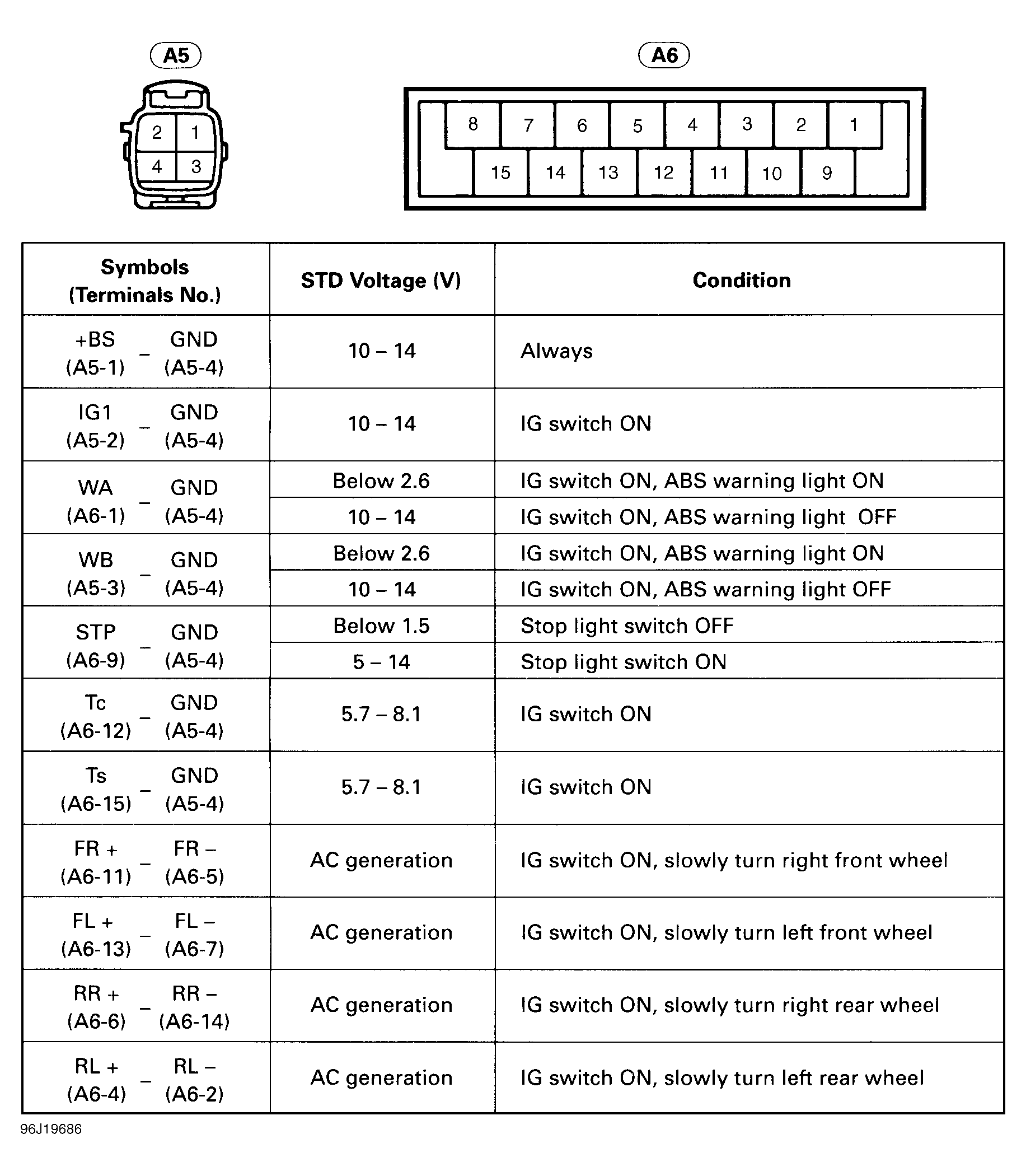

Fig 1: ABS ECU Standard Values Chart
