Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

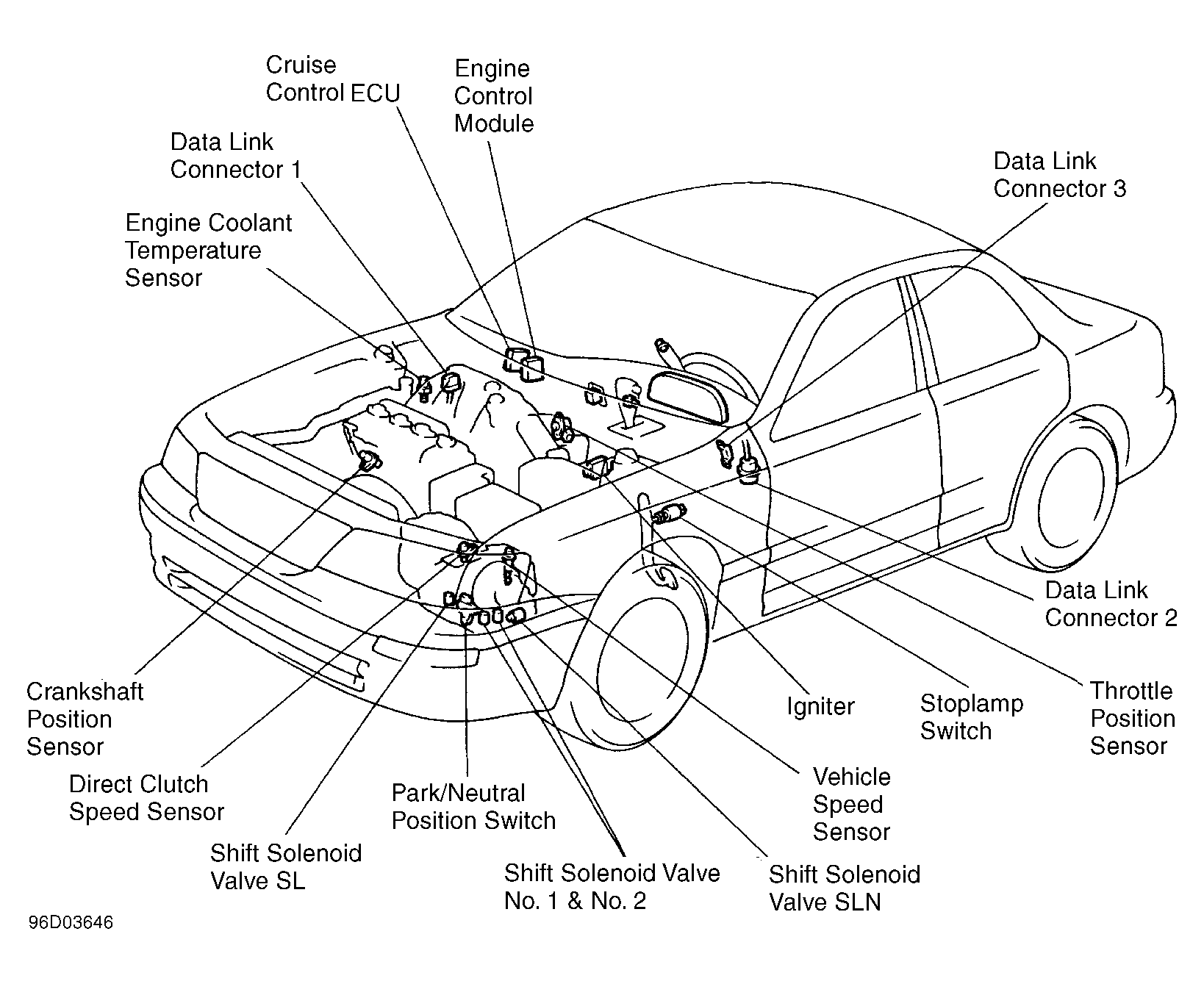

Fig 1: Engine Compartment
G96D03646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Compartment
G00116844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Vehicle Overview
G00122975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash
G00122976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
