Control Units
CONTROL UNITS

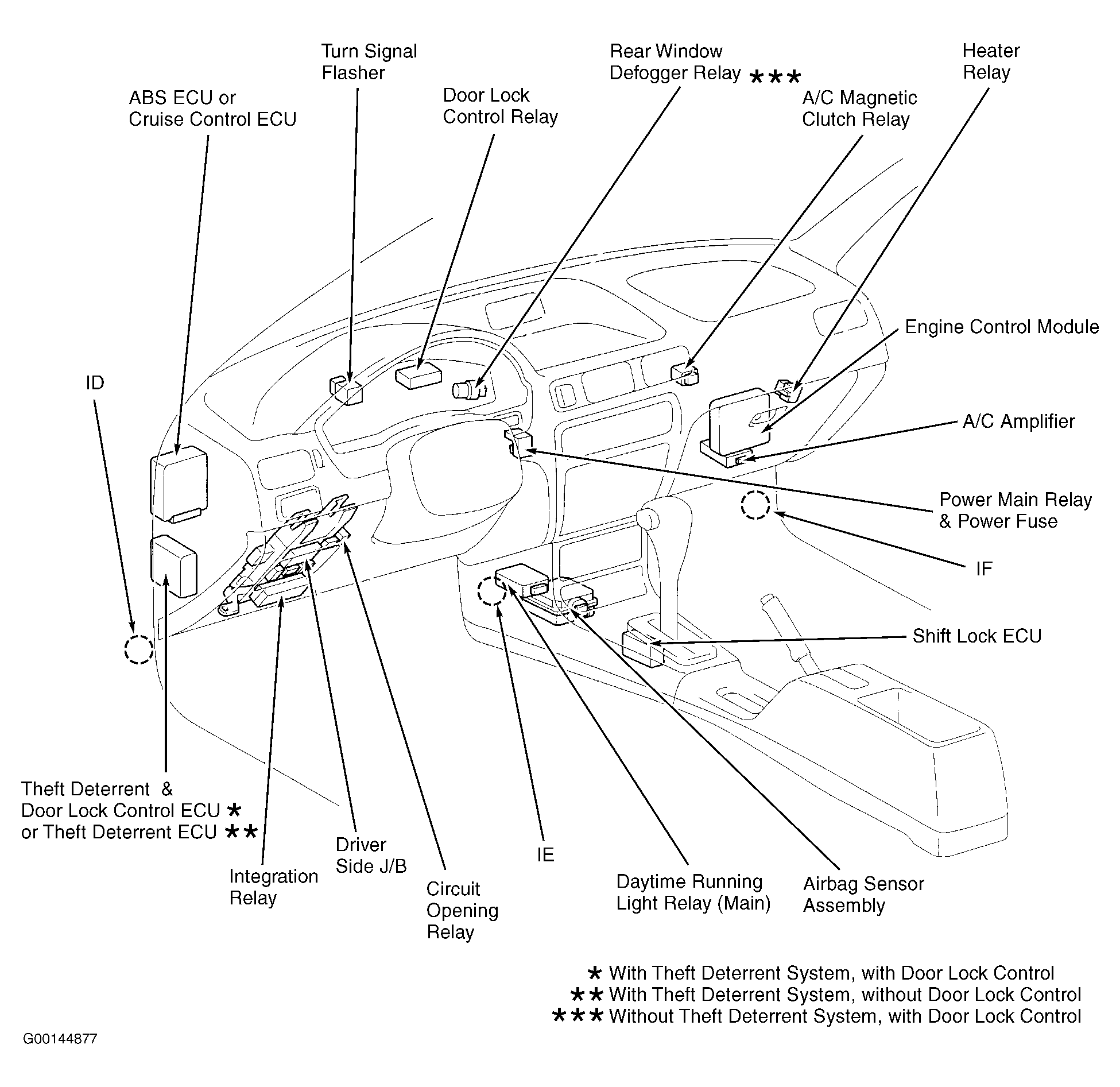

| Component | Component Location |
|---|---|
| ABS ECU | Behind dash, left of steering column. See Figure. |
| A/C Amplifier | Behind glove box. See Figure. |
| Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control ECU | Behind dash, left of steering column. See Figure. |
| Engine Control Module | Behind glove box. See Figure. |
| Shift Lock ECU | Below center console, rear of gear selector. See Figure. |
| Theft Deterrent ECU (W/O Door Lock Control) | Behind dash, left of steering column. See Figure. |
| Theft Deterrent ECU & Door Lock Control ECU (W/ Door Lock Control) | Behind dash, left of steering column. See Figure. |
