Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

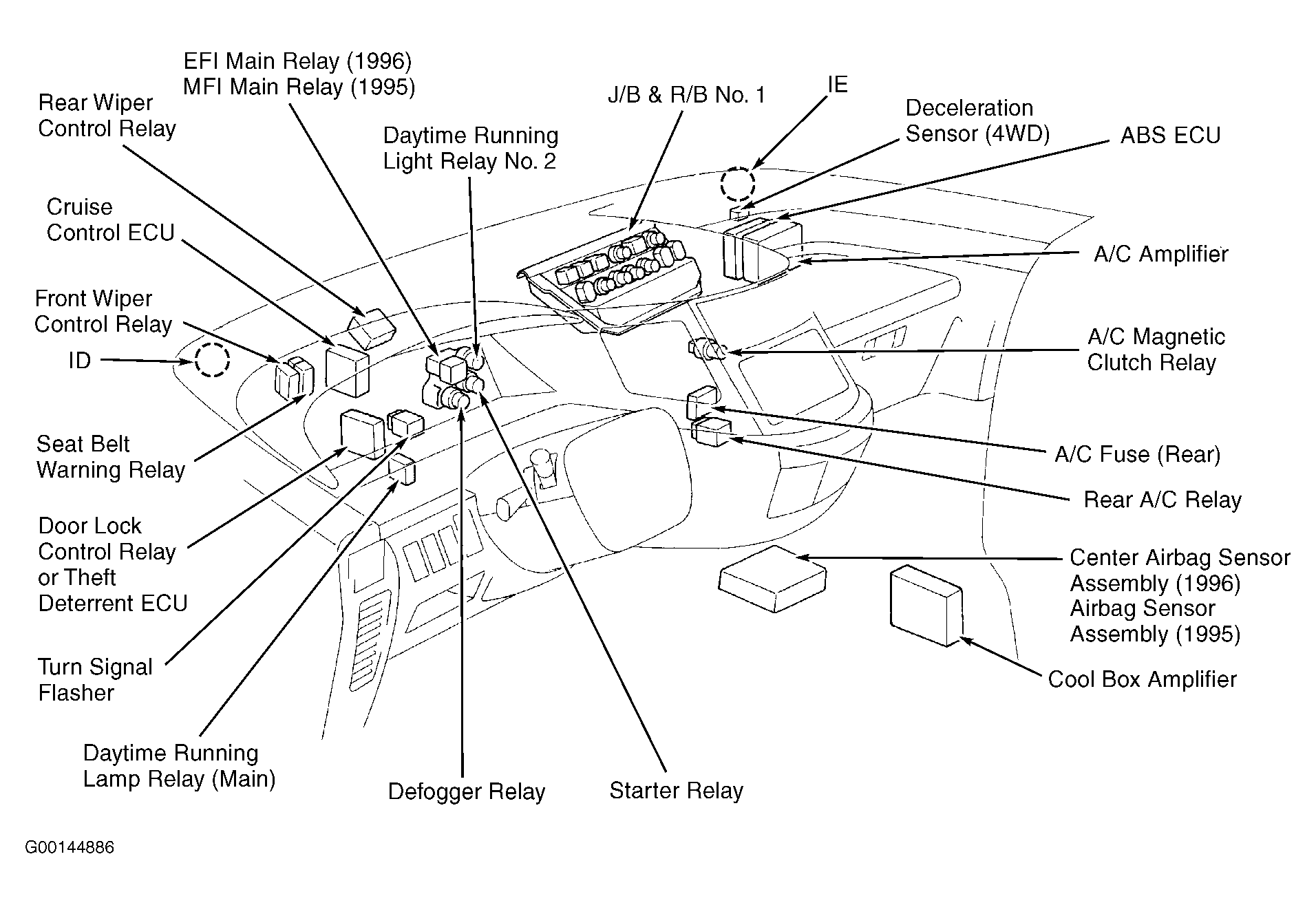

| ABS ECU | Behind right side of dash. See Figure. |
| A/C Amplifier | Behind right side of dash. See Figure. |
| Air Bag Sensor Assembly (Center) (1996) | Below center of dash. See Figure. |
| Air Bag Sensor Assembly (1995) | Below center of dash. See Figure. |
| Cool Box Amplifier | Below center of dash, in cool box. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |

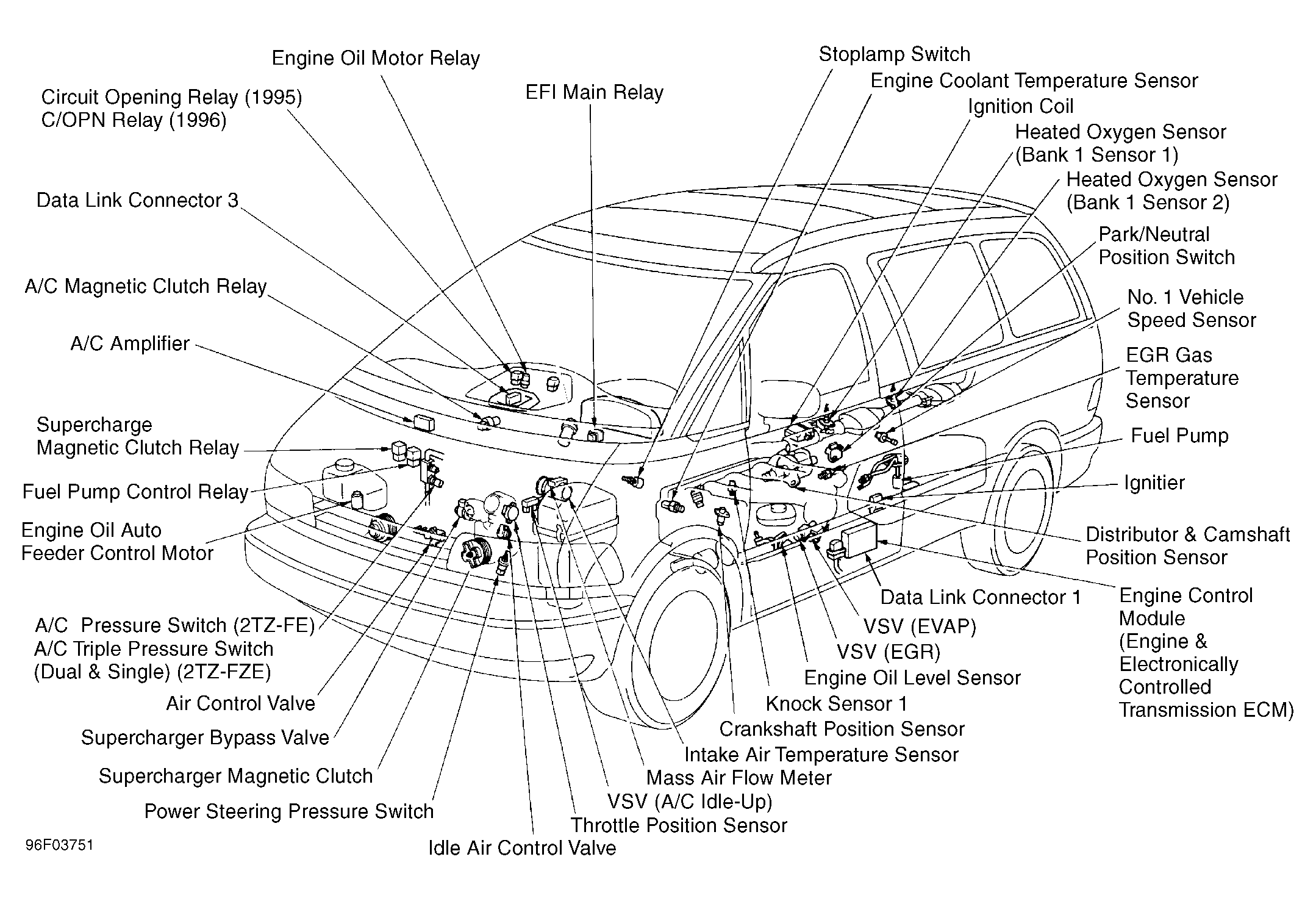

| Engine Control Module (Engine & Electronically Controlled Transmission ECM) | Left of driver's seat, under left front seat leg. See Figure. |
| Stereo Component Amplifier | Behind right side of dash. |
| Theft Deterrent ECU | Behind dash, left of steering column. See Figure. |
| Woofer Speaker Amplifier | On right side of cargo area. |
