Control Units

CONTROL UNITS

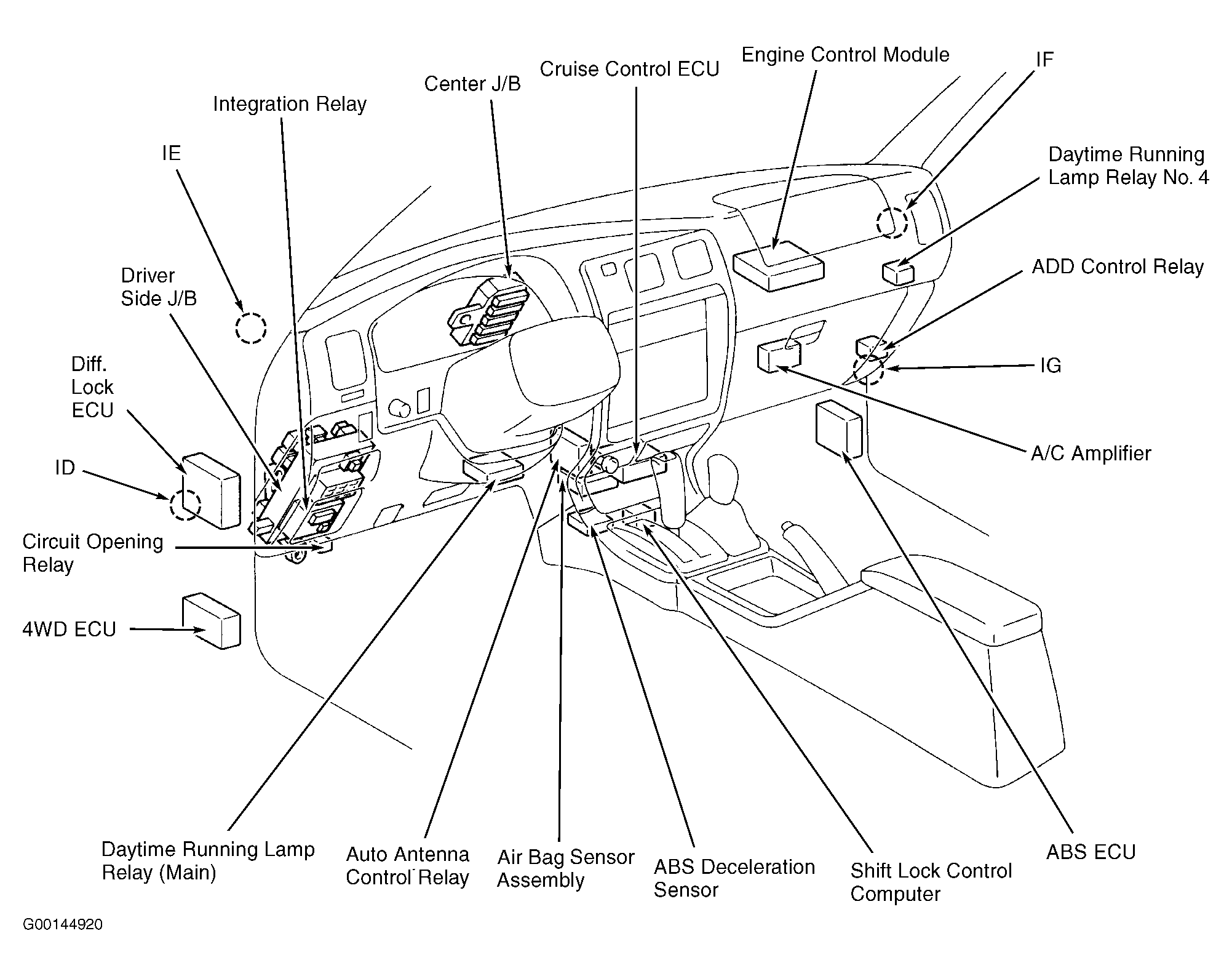

Component Component Location
ABS ECU At right kick panel. See Figure.
Air Bag Sensor Assembly Behind center of dash. See Figure.
Cruise Control ECU Behind center of dash. See Figure.
Differential Lock ECU At left kick panel. See Figure.
Engine Control Module Behind right side of dash. See Figure.
Shift Lock Control Computer Under center of dash, near front of center console. See Figure.
4WD ECU At left kick panel. See Figure.
