Service Point Locations

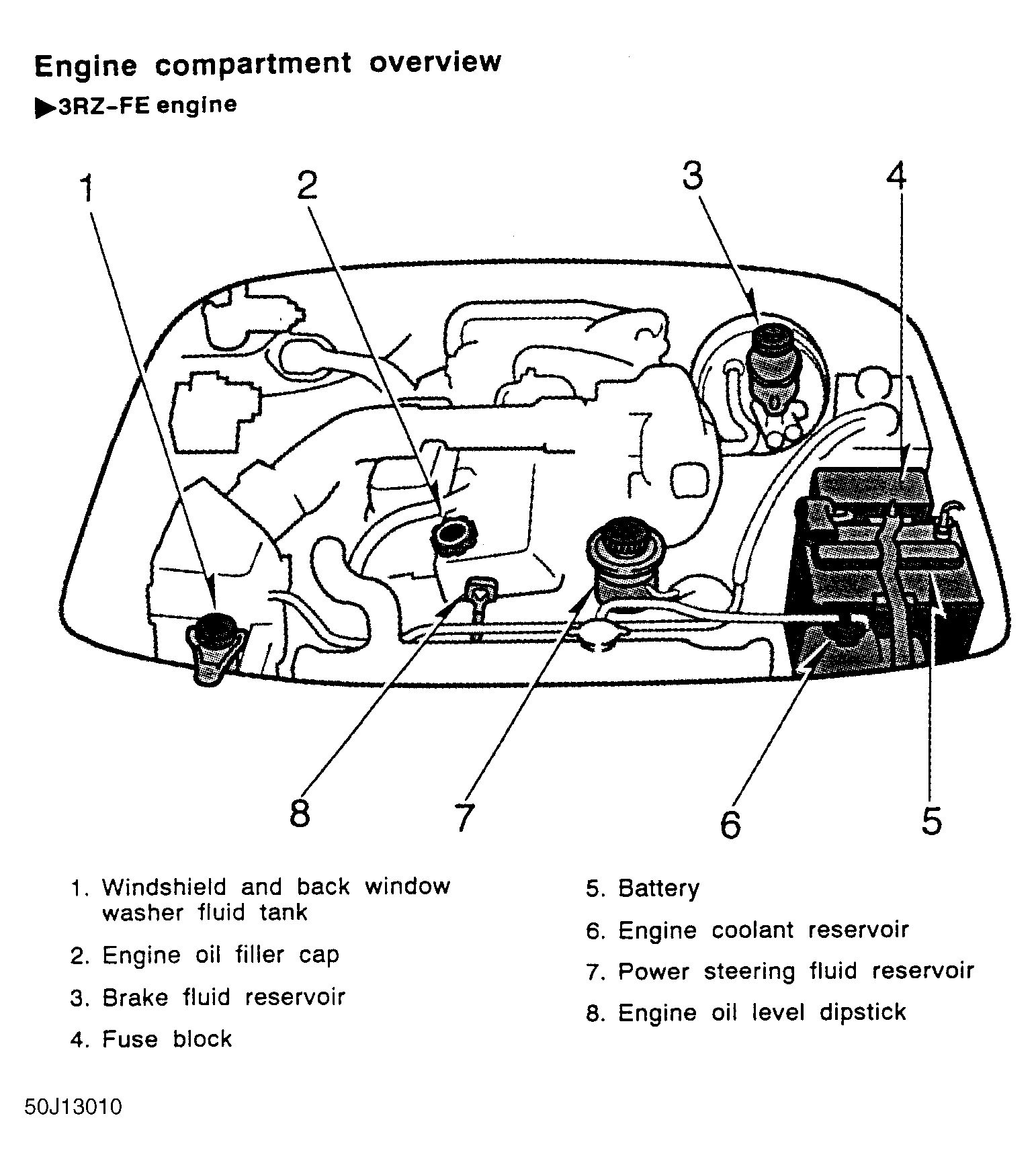

Fig 1: Service Point Locations - 3RZ-FE Engine
G50J13010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

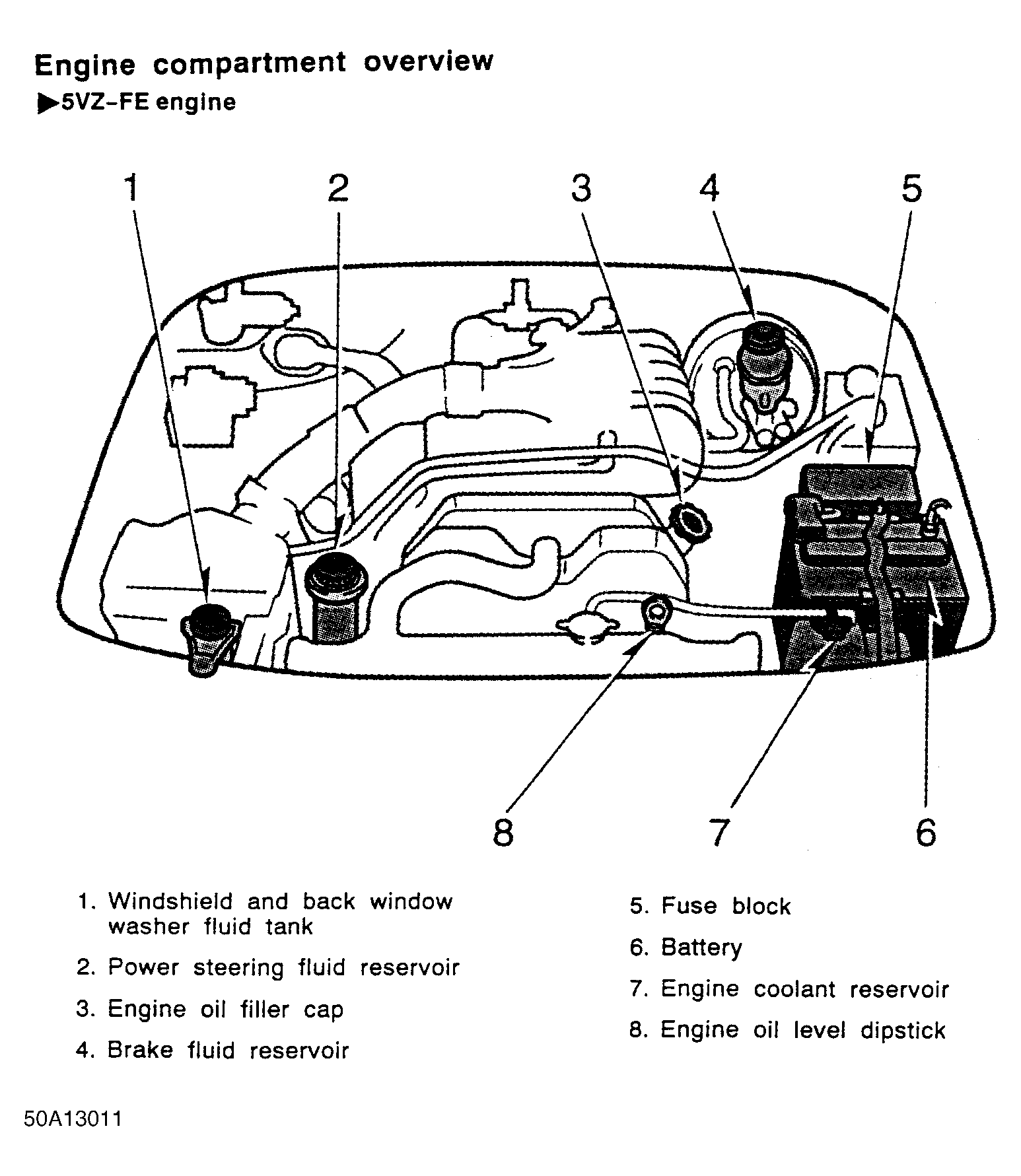

Fig 2: Service Point Locations - 5VZ-FE Engine
G50A13011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

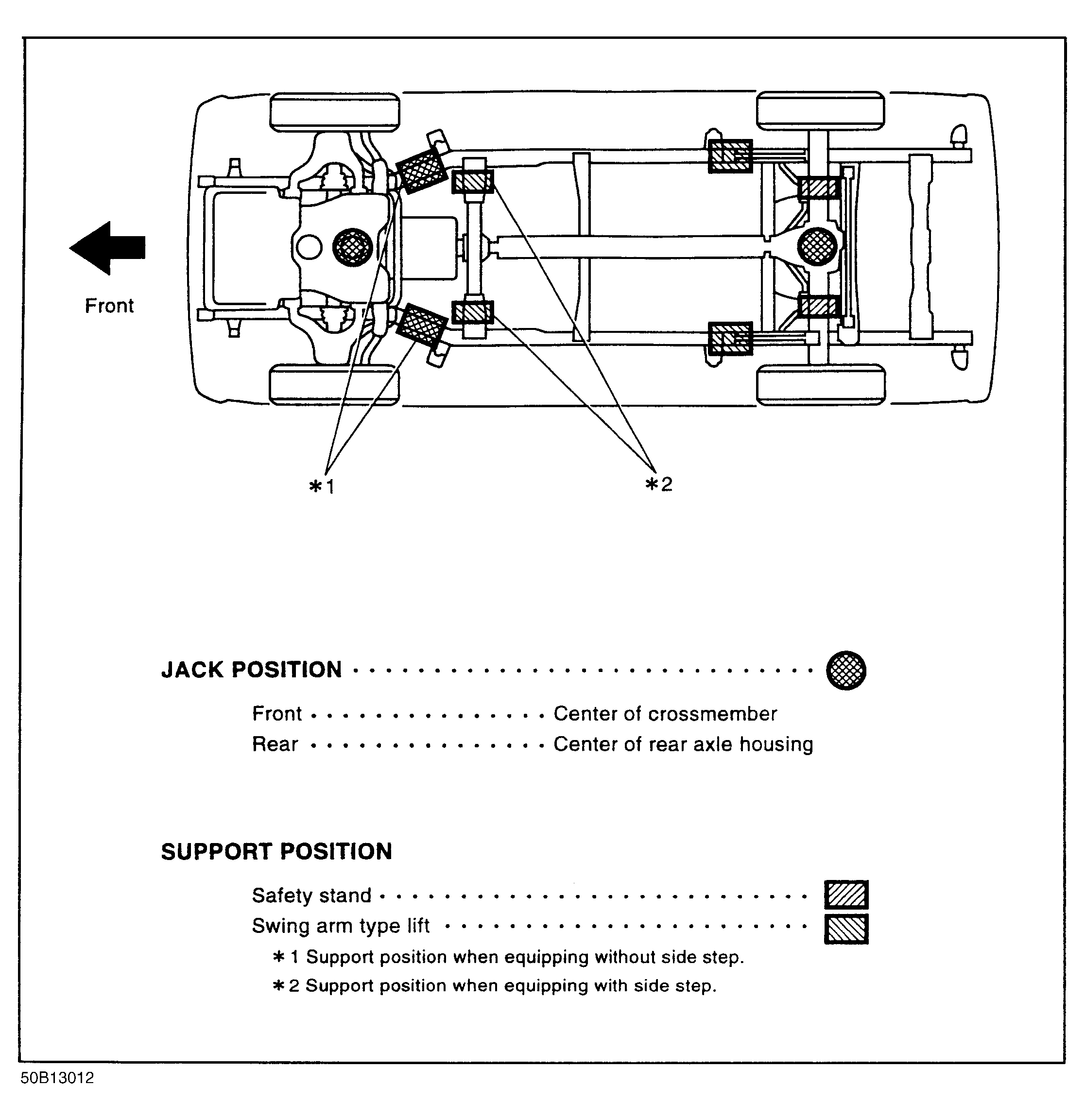

Fig 3: Lift Point Locations
G50B13012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
