Vehicle Access Code Programming

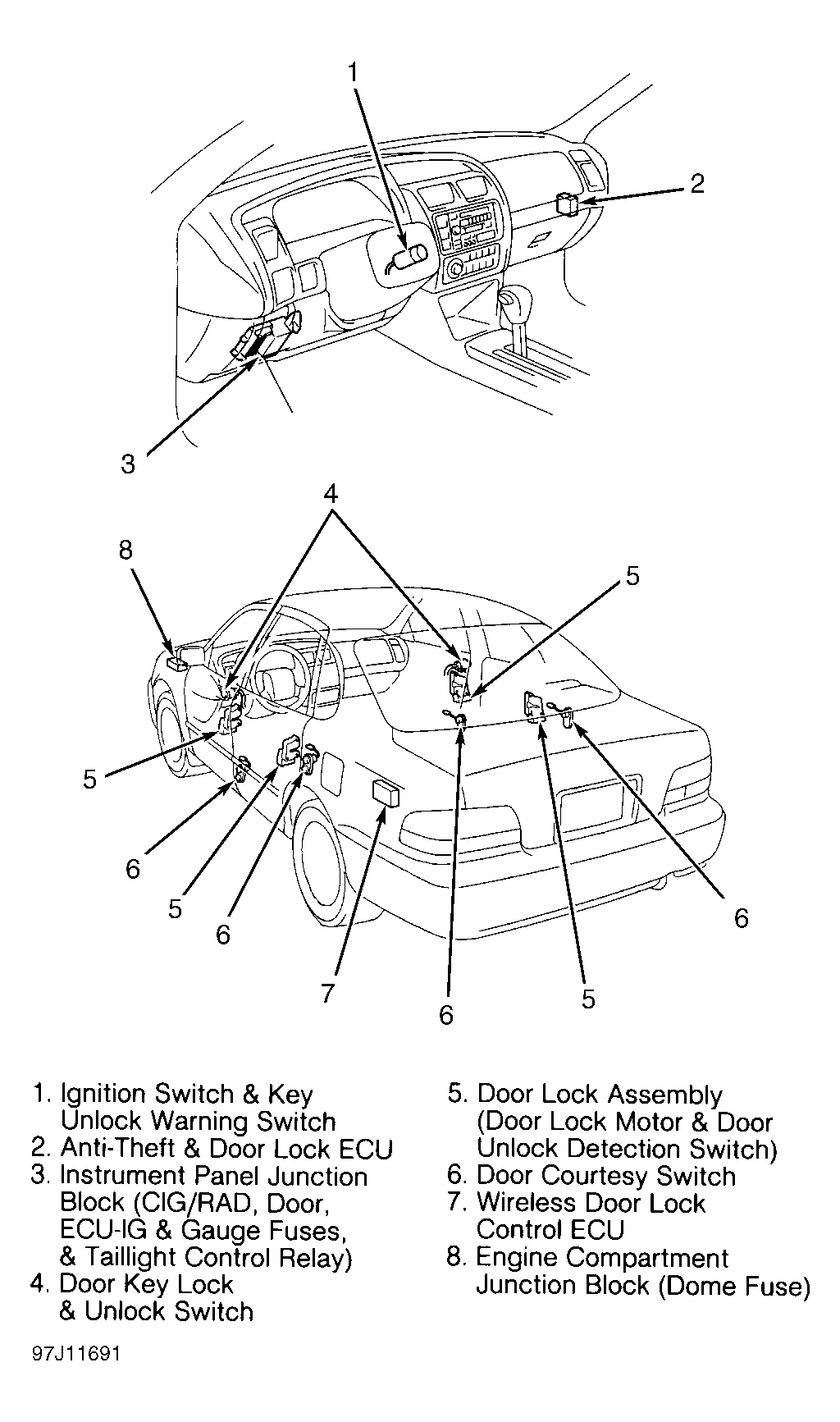

  1. Locate wireless door lock ECU in left panel of luggage compartment. See Figure. Ground terminal No. 9 (Black wire) on ECU. All doors and trunk should lock and unlock. Depress any single button on No. 1 transmitter. All doors and trunk should lock and unlock.
  2. Program No. 2 transmitter by repeating step 1). When programming is complete, remove ground from terminal No. 9 (Black wire) on ECU. Operate transmitters to ensure proper programming.
