Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

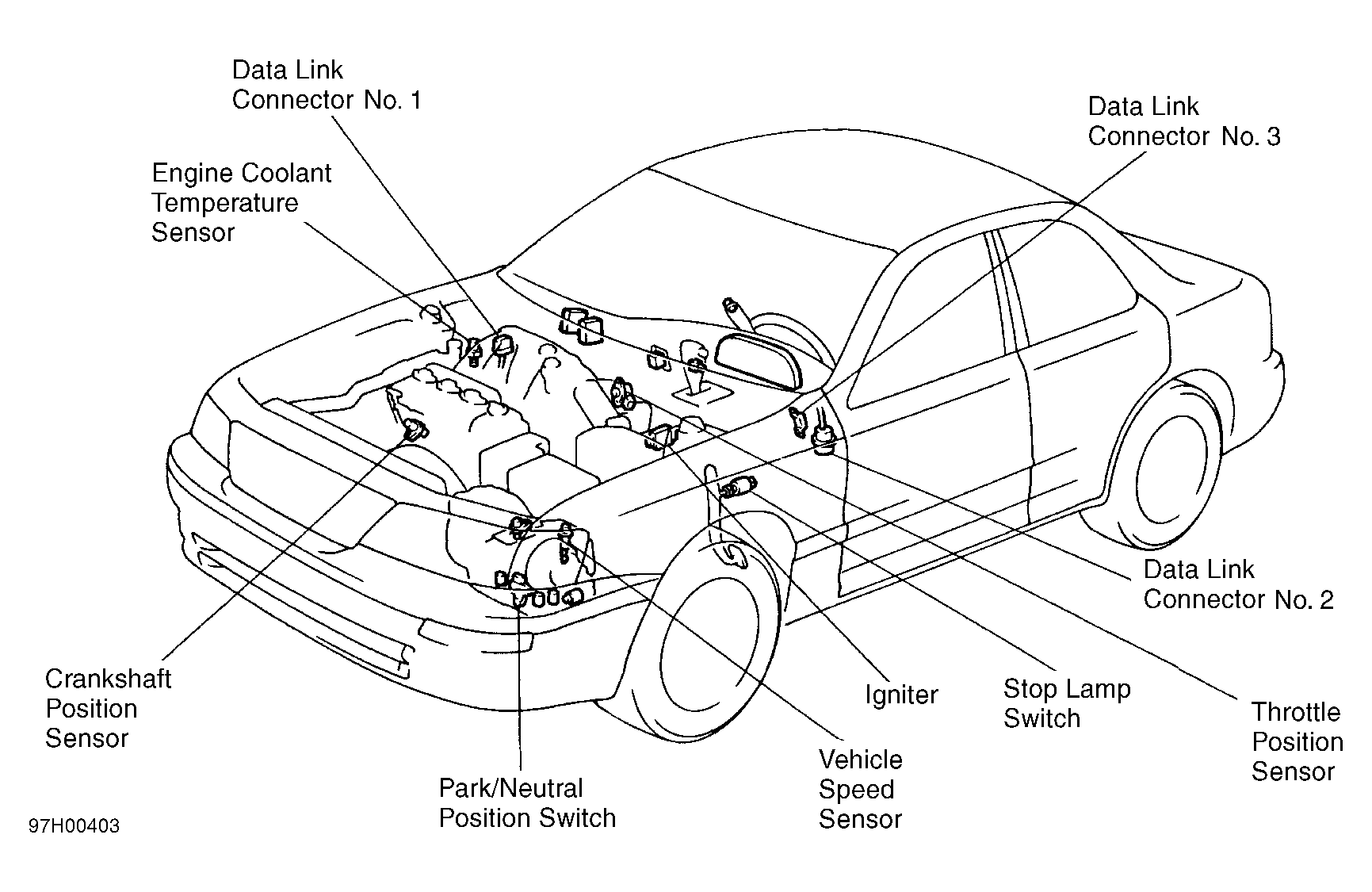

Fig 1: Engine Compartment
G97H00403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Compartment
G00116841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Vehicle Overview
G00116842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash
G00116843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
