Service Point Locations

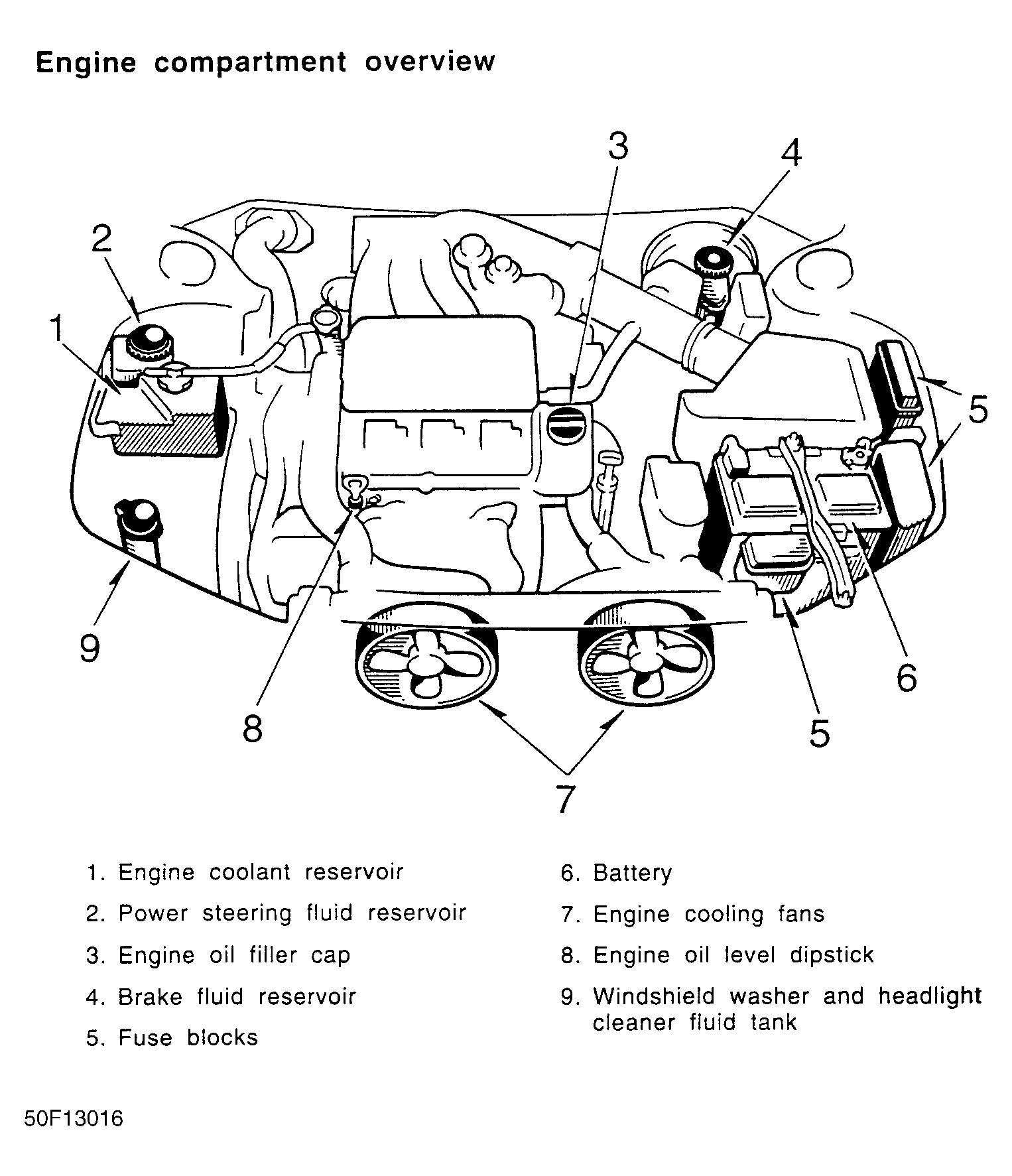

Fig 1: Service Point Locations
G50F13016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

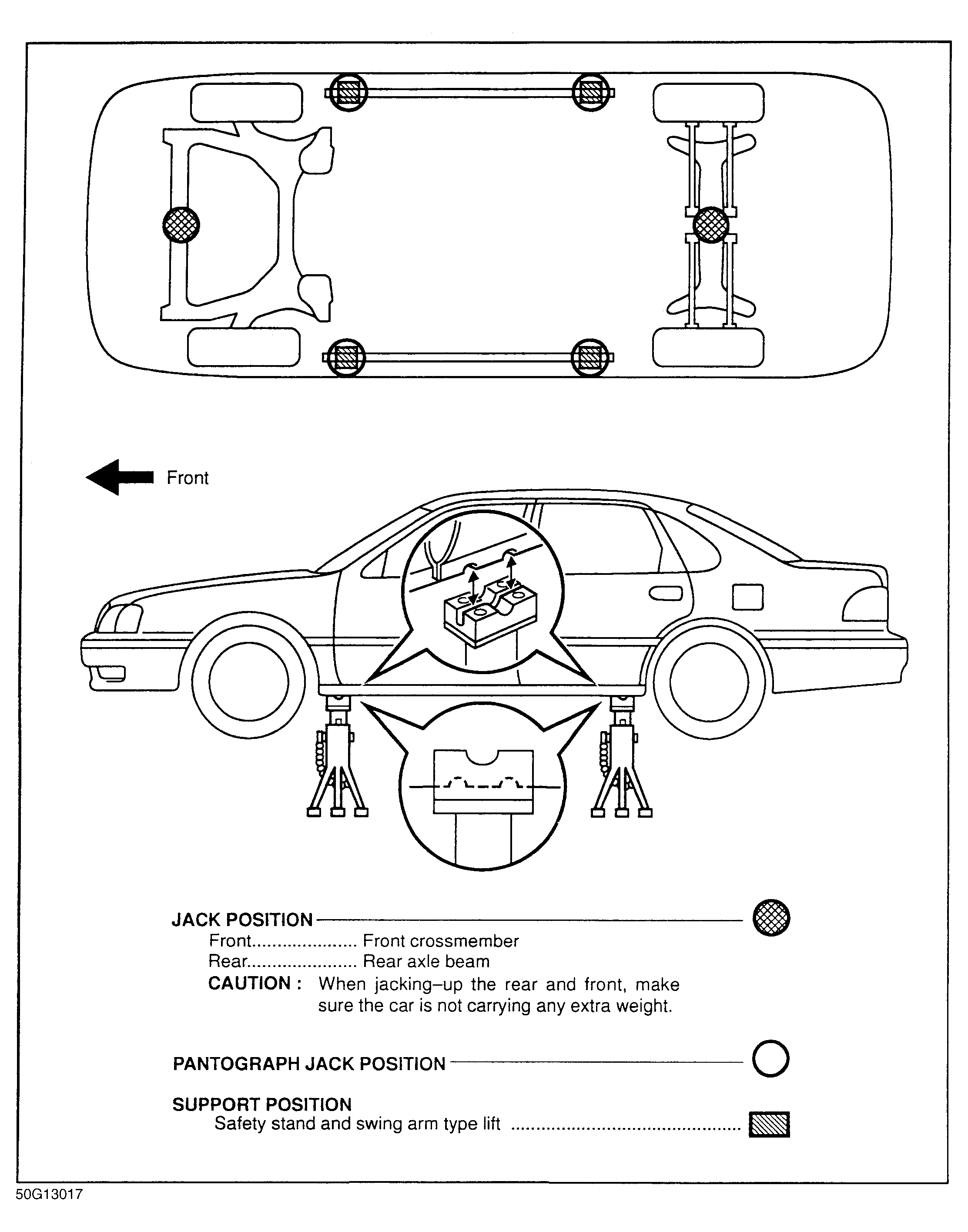

Fig 2: Vehicle Lift Point Locations
G50G13017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

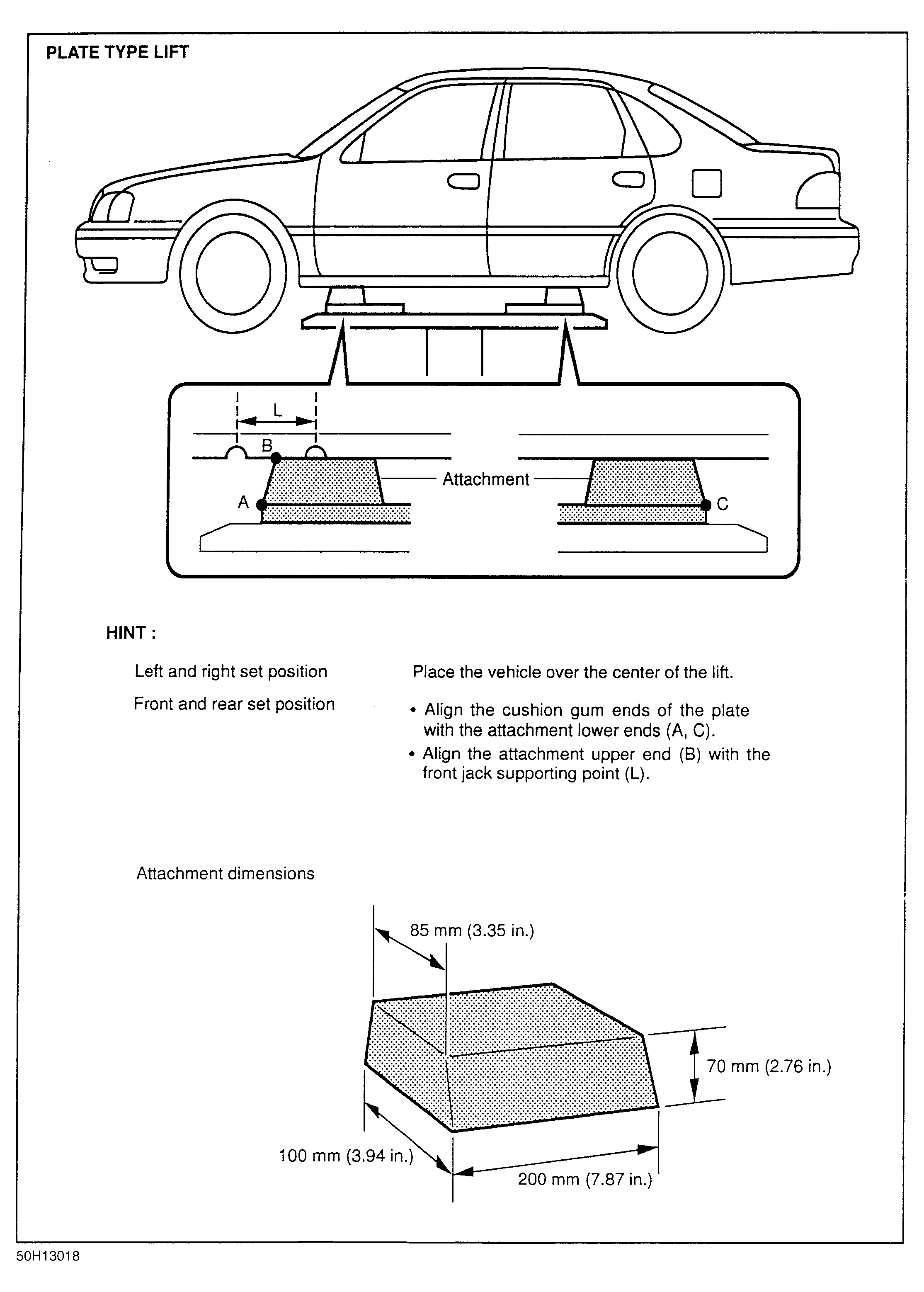

Fig 3: Vehicle Plate Type Lift Locations
G50H13018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
