Data Link Connector

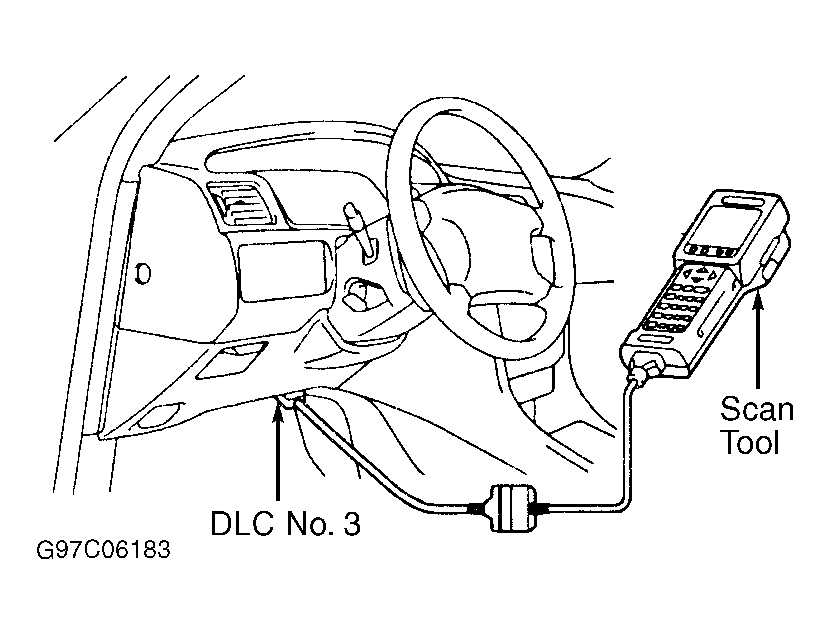

OBD-II regulations (SAE J-1850) standardizes Data Link Connector (DLC) configurations. See DATA LINK CONNECTOR (DLC) NO . 3 LOCATION table. See Figure.

DATA LINK CONNECTOR (DLC) NO. 3 LOCATION

Application Location
2.2L Left Side Of Instrument Panel, Right Of Steering Column
