Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

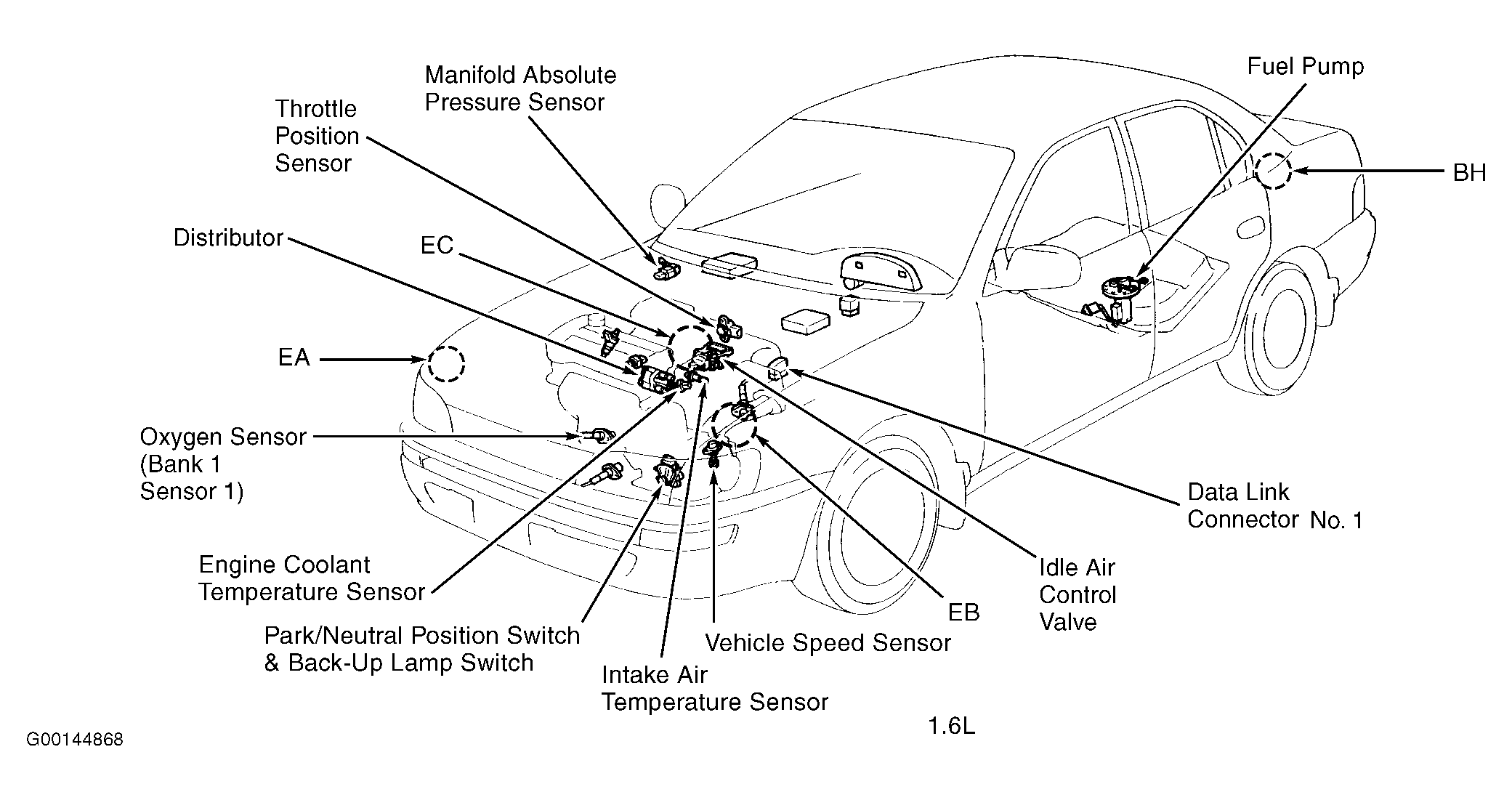

Fig 1: Vehicle Overview (1.6L)
G00144868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

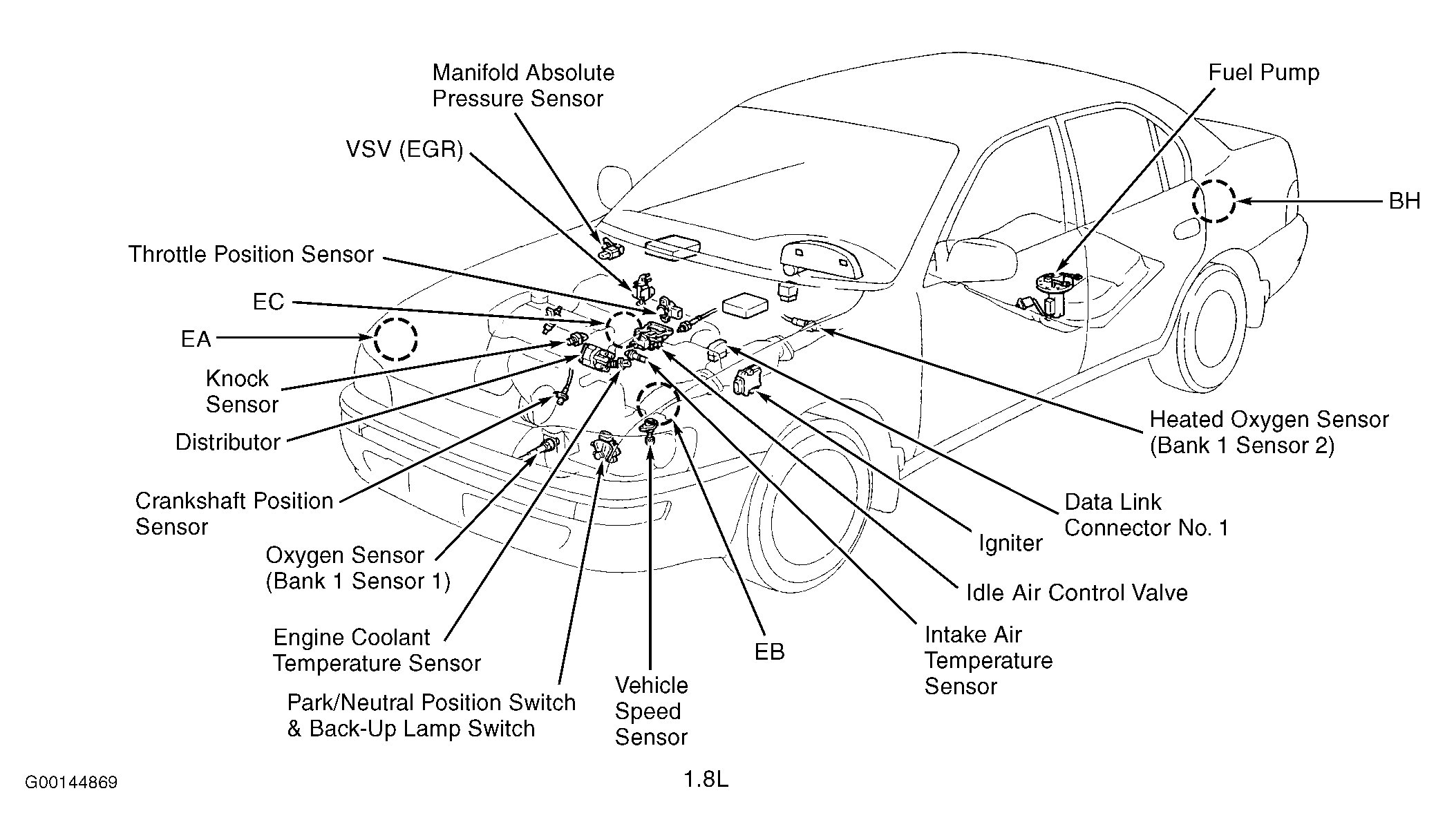

Fig 2: Vehicle Overview (1.8L)
G00144869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

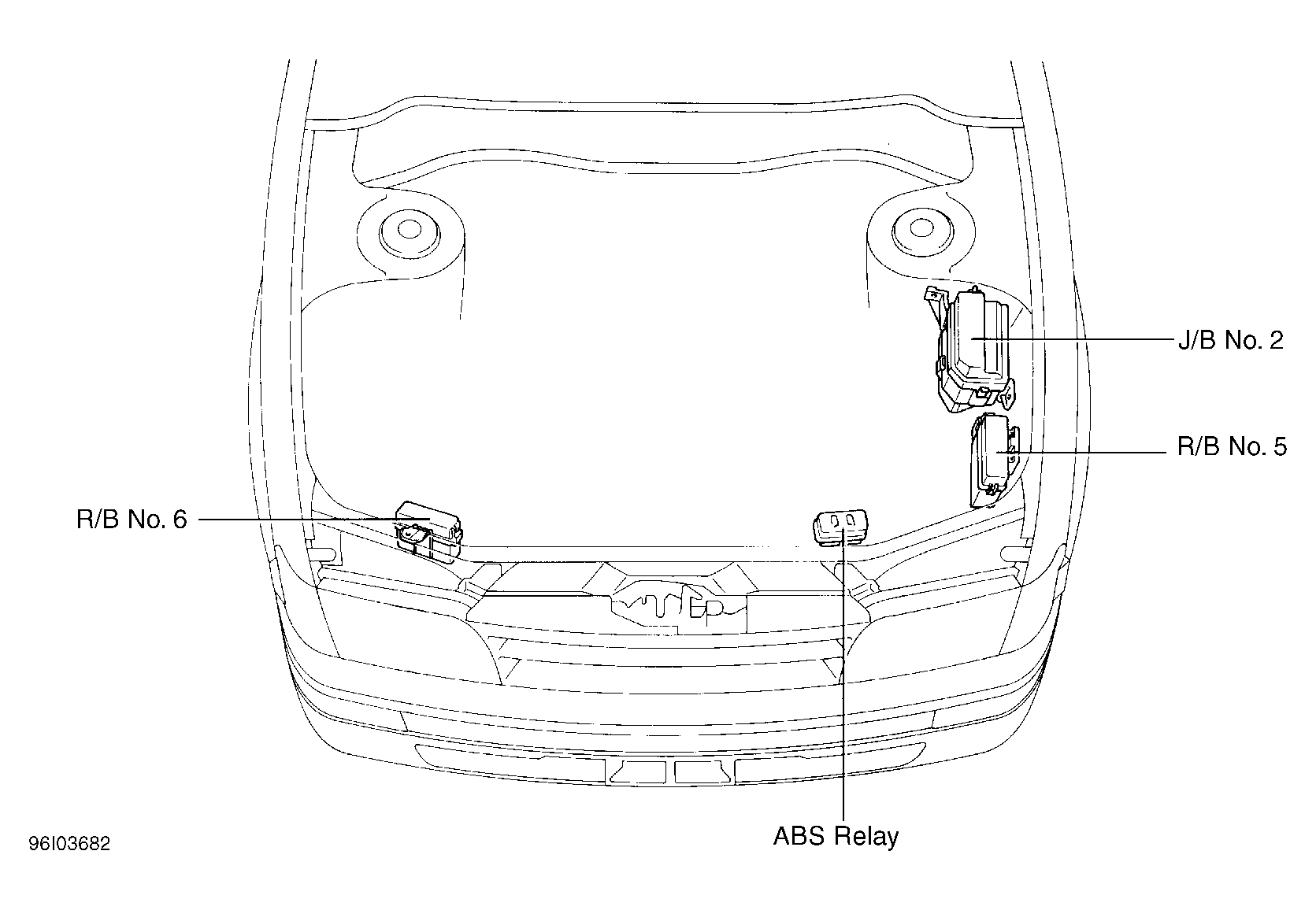

Fig 3: Engine Compartment
G96I03682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash
G00144870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
