Control Units
CONTROL UNITS

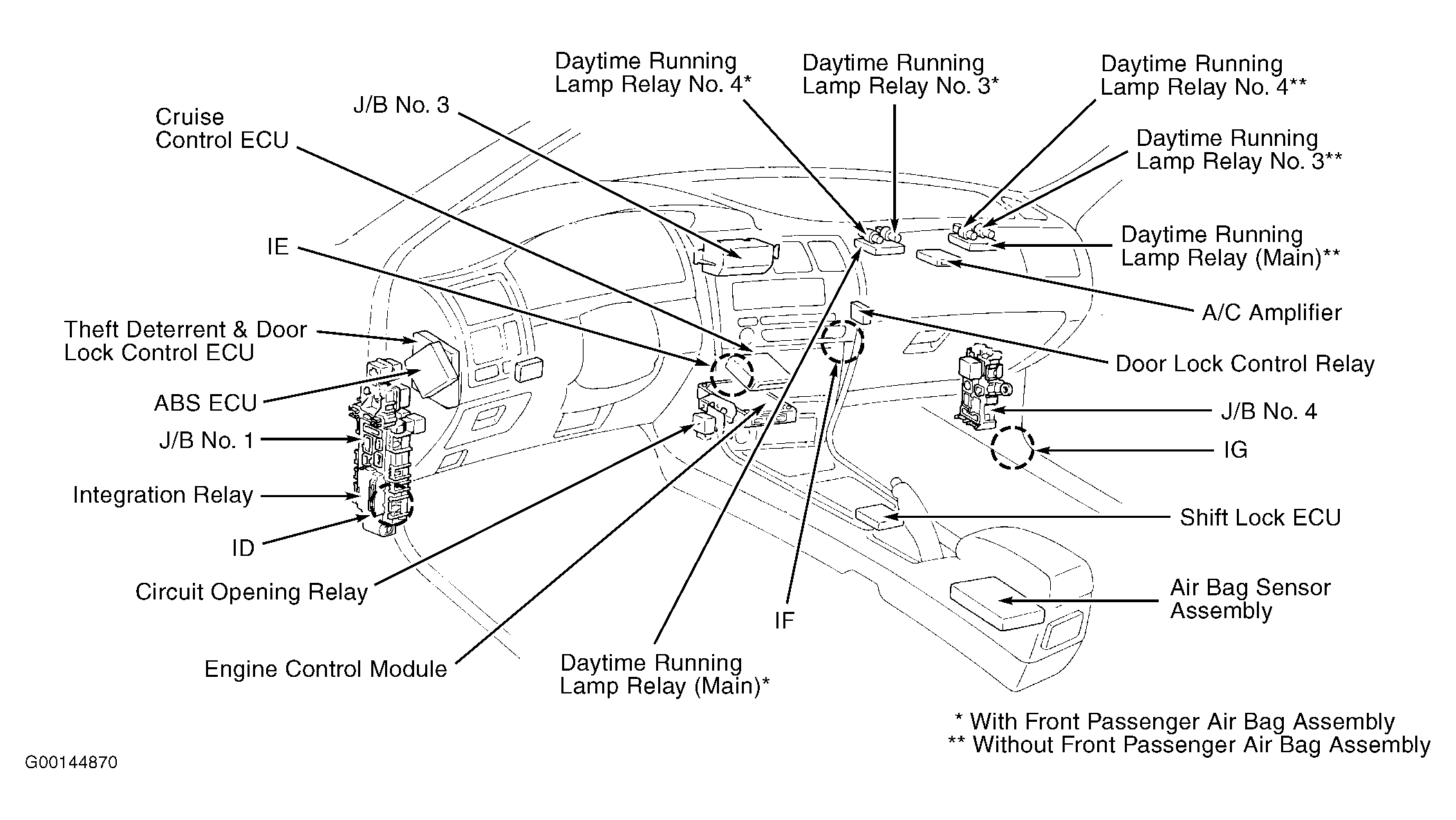

| Component | Component Location |
|---|---|
| ABS ECU | Behind dash, above left kick panel. See Figure. |
| A/C Amplifier | Behind dash, above glove box. See Figure. |
| Air Bag Sensor Assembly | Below center console, rear of park brake lever. See Figure. |
| Cruise Control ECU | Behind center of dash. See Figure. |
| Engine Control Module | Below center of dash. See Figure. |
| Shift Lock ECU | Below center console, forward of park brake lever. See Figure. |
| Theft Deterrent & Door Lock Control ECU | Behind dash, above left kick panel. See Figure. |
