Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

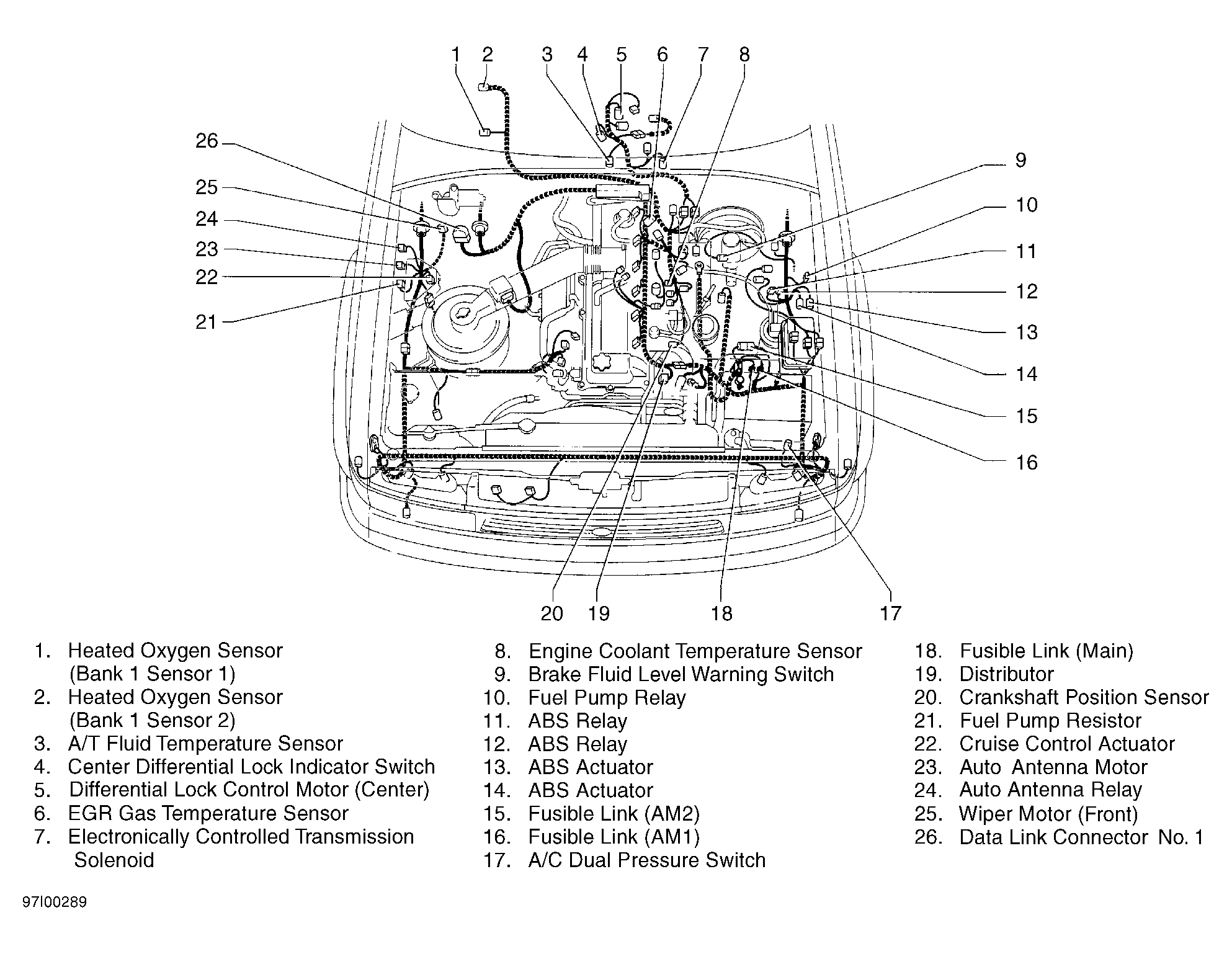

Fig 1: Engine Compartment
G97I00289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

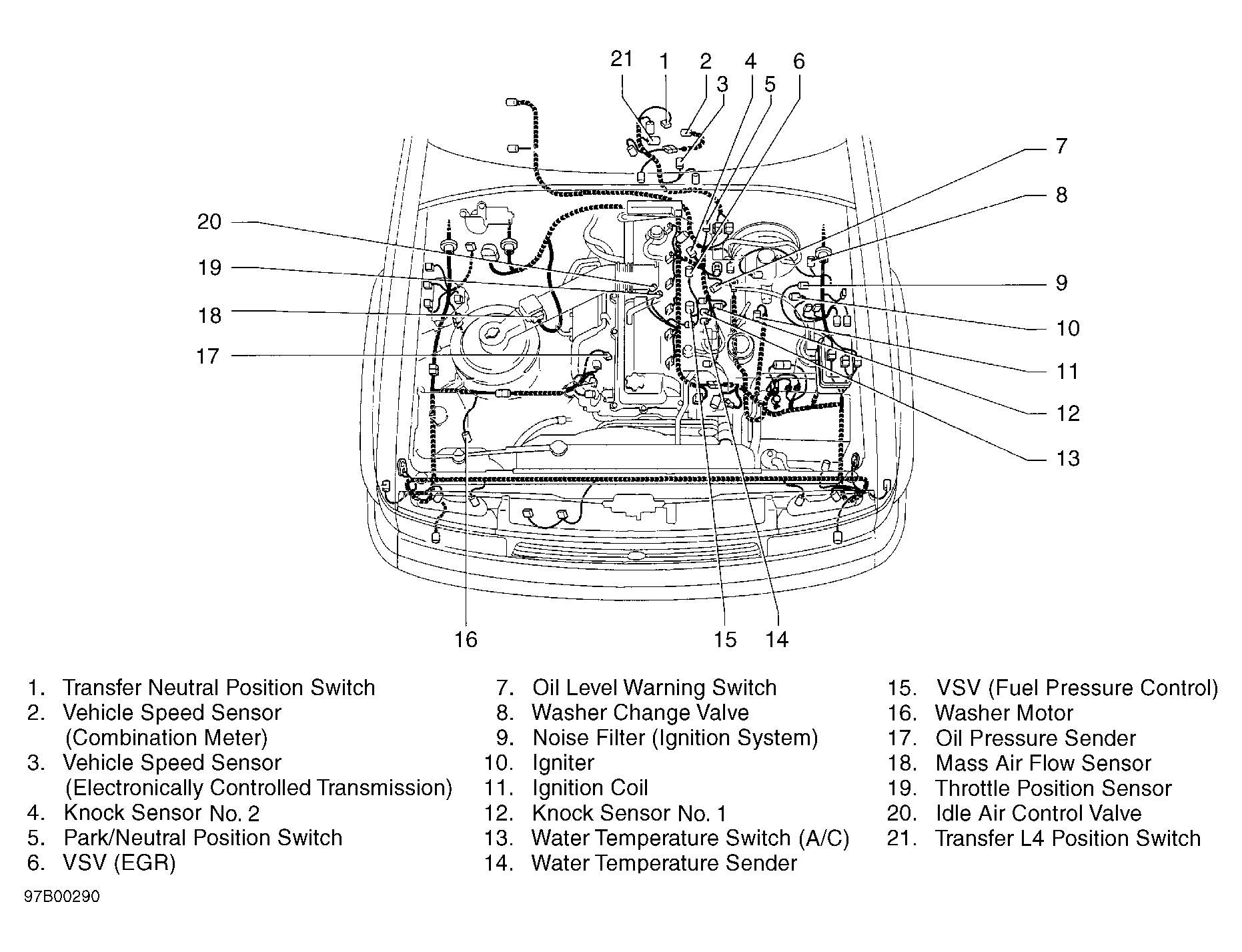

Fig 2: Engine Compartment
G97B00290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Dash
G00145134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Left Side Of Vehicle
G00145135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

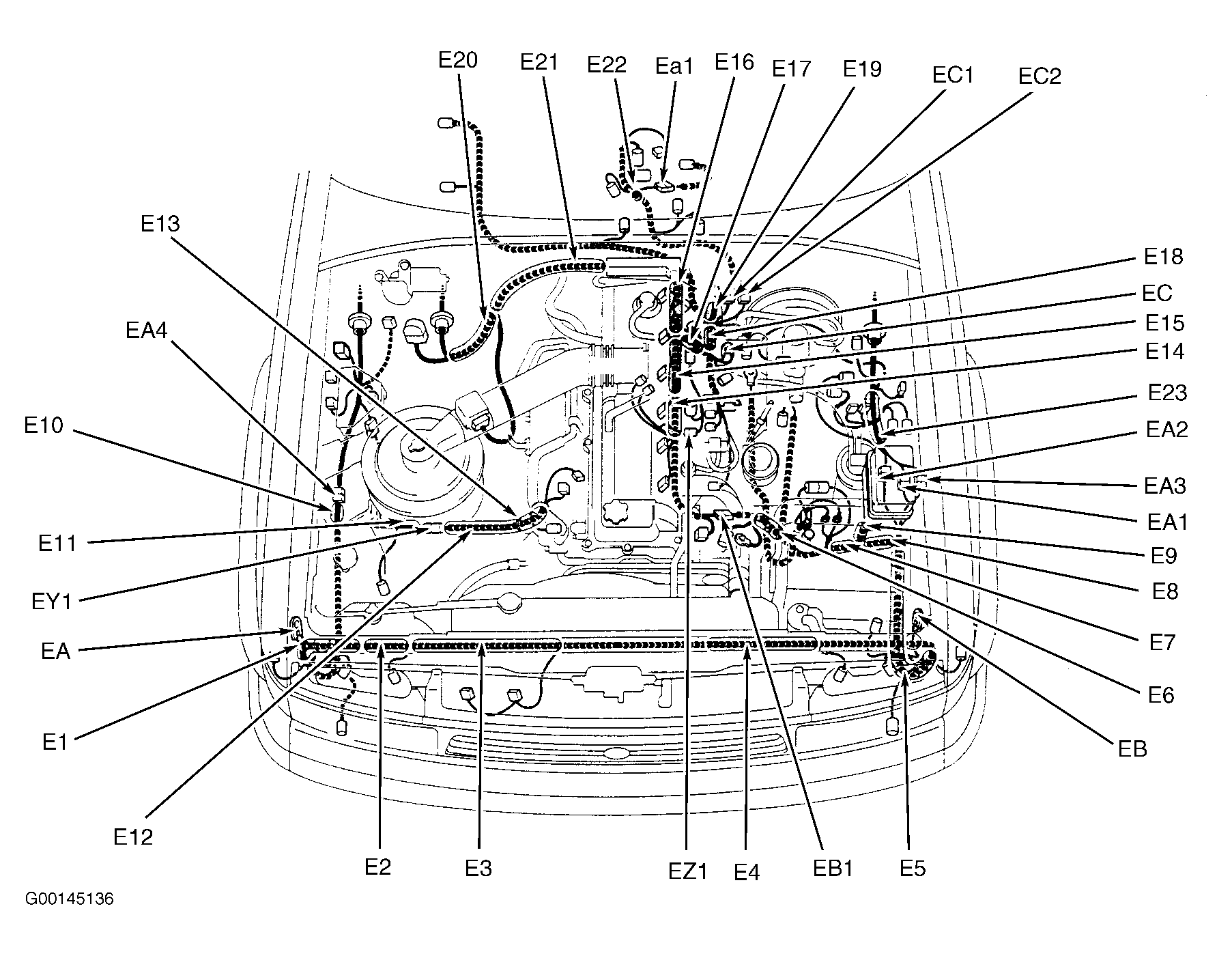

Fig 5: Engine Compartment
G00145136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
