Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G96E03722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

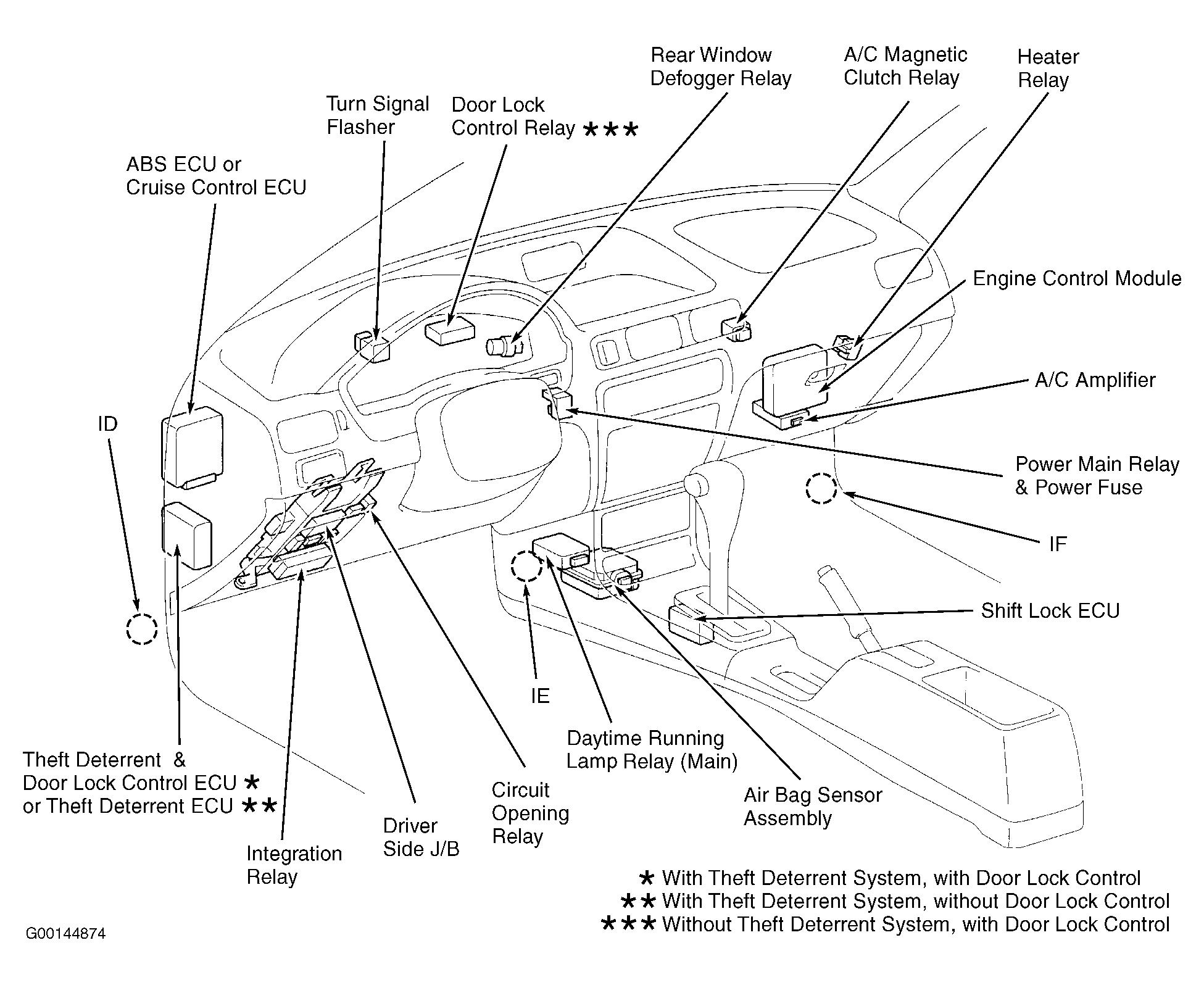

Fig 2: Dash
G00144874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

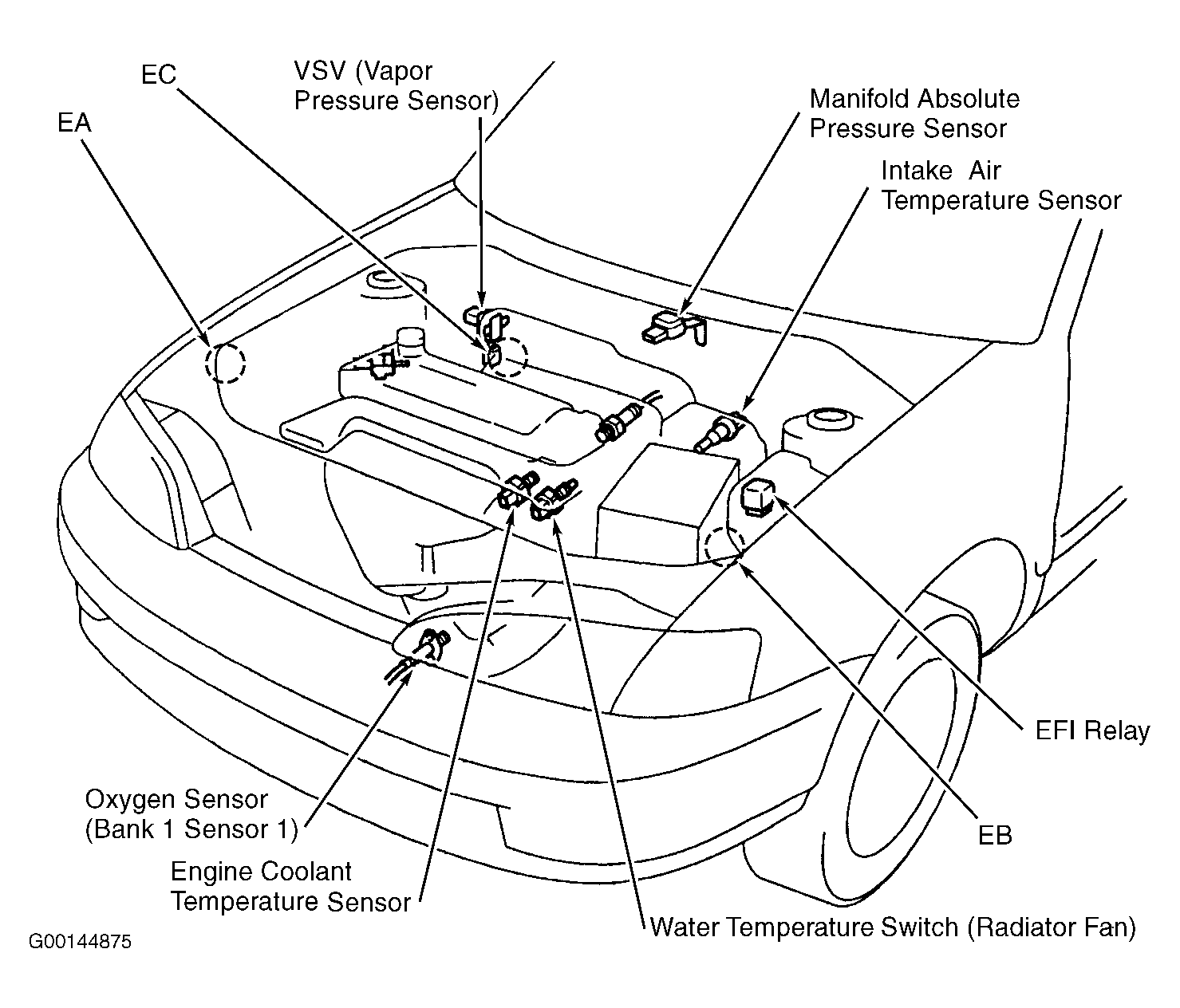

Fig 3: Engine Compartment
G00144875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
