Circuit Opening Relay

  1. Ensure ignition is off. Remove circuit opening relay. See CIRCUIT OPENING RELAY LOCATION  table. See Fig 1.
    CIRCUIT OPENING RELAY LOCATION

    Application Relay Location
    Paseo Near Top Right Corner Of Fuse/Relay Box Behind Driver's Side Lower Instrument Panel Cover, Near Steering Column
  2. To check circuit opening relay continuity, use ohmmeter to check continuity between specified terminals. See Fig 2.
  3. To check circuit opening relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 2. Replace circuit opening relay if defective.

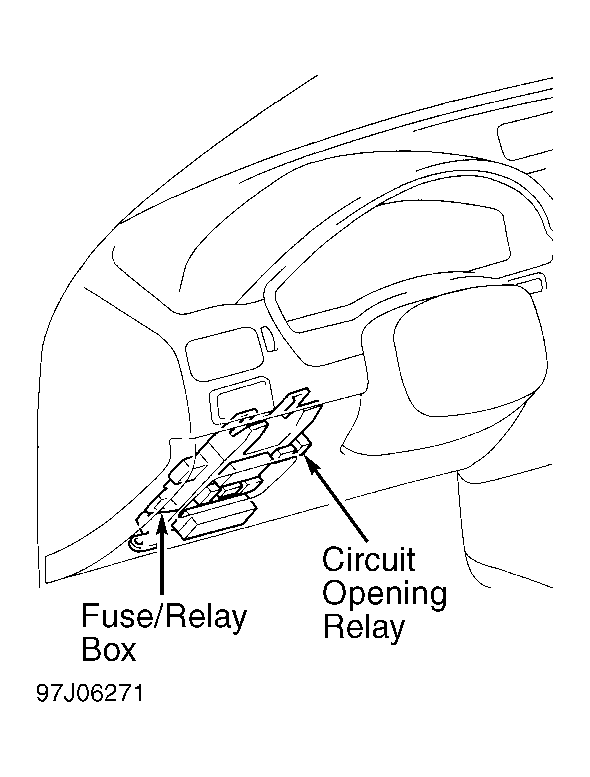

Fig 1: Locating Circuit Opening Relay Or EFI Main Relay
G97J06271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

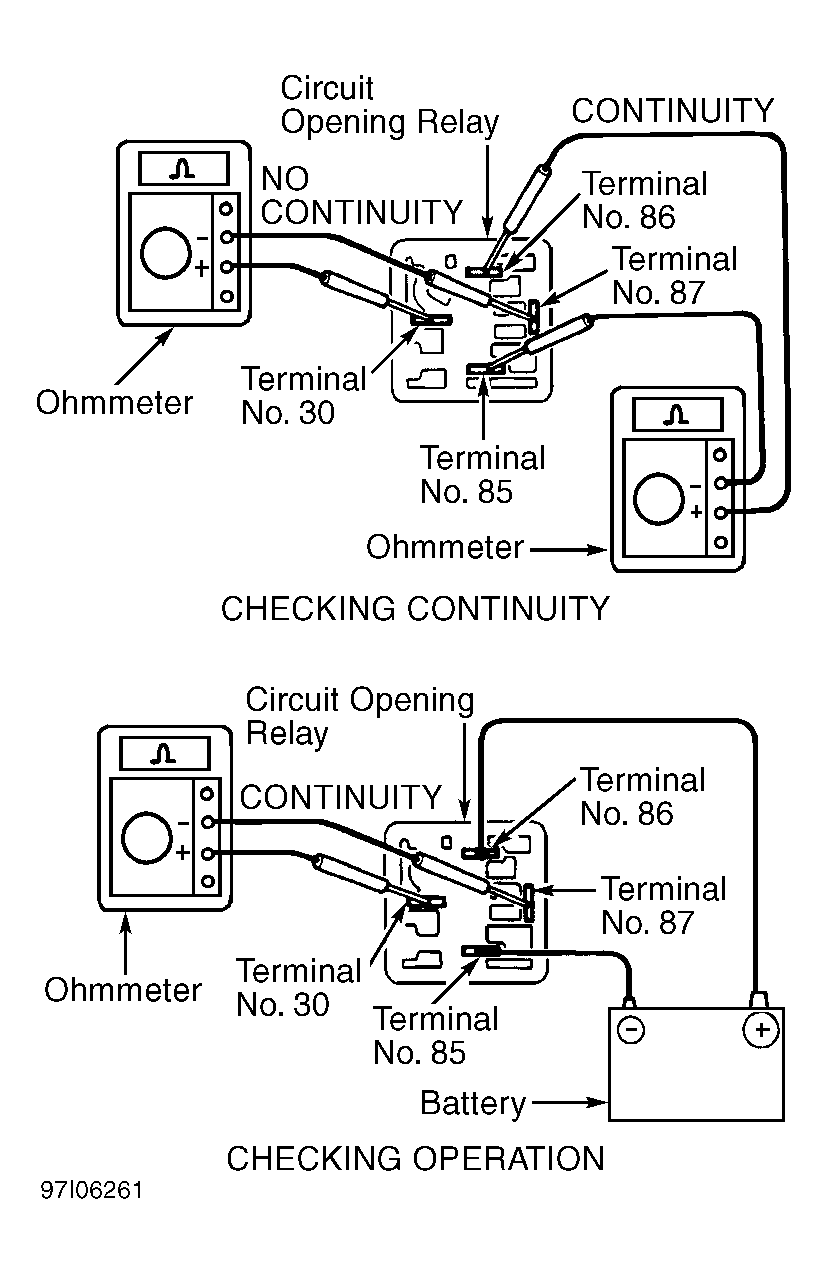

Fig 2: Testing Circuit Opening Relay
G97I06261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
