Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

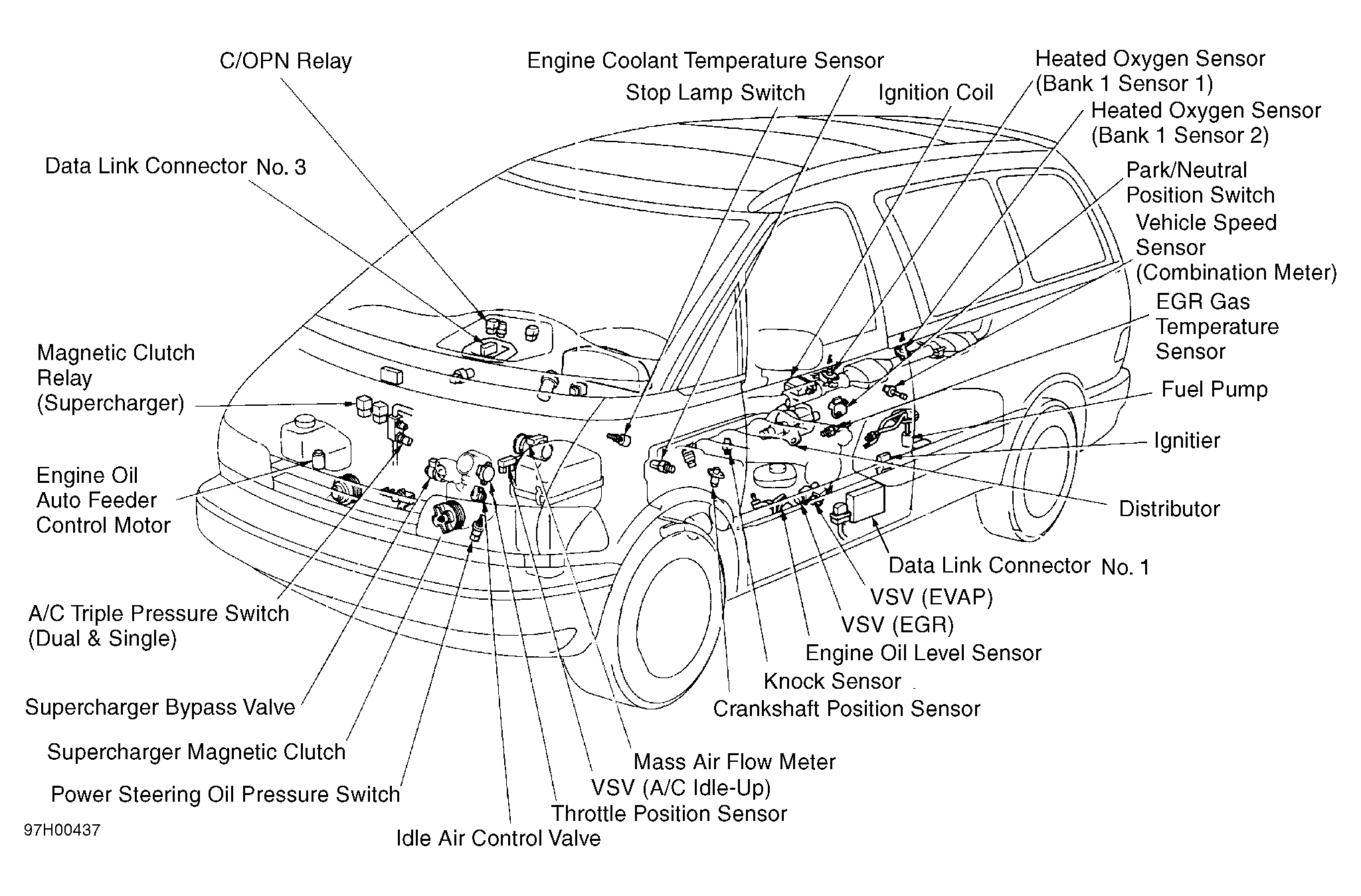

Fig 1: Vehicle Overview
G97H00437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Dash
G00144883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Left Side Of Vehicle
G00144884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Compartment
G00144885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
