Supercharger Relay
NOTE:
Supercharger relay may also be referred to as magnetic clutch relay.
- Ensure ignition is off. Remove supercharger relay. Supercharger relay is located on passenger's side of underhood compartment, near wiper motor and contains a Black 4-pin electrical connector. See Figure.

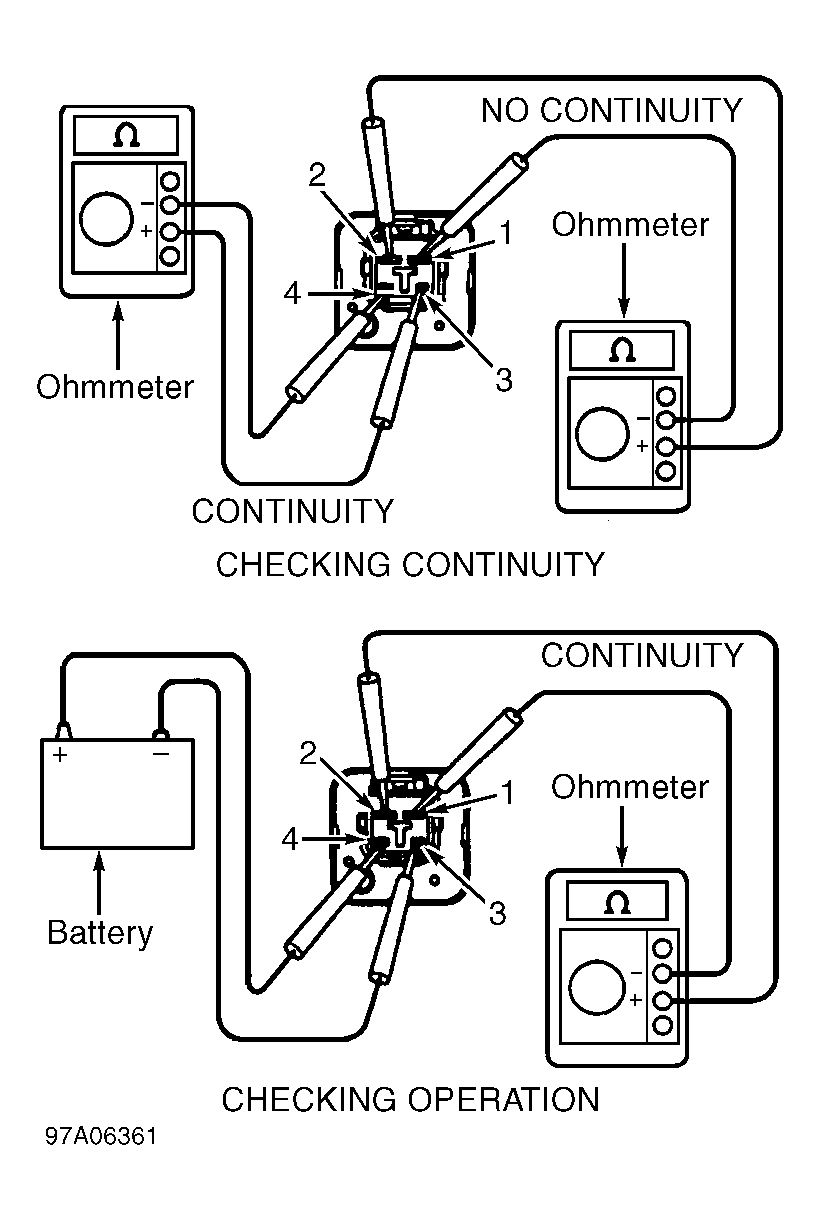

- To check supercharger relay continuity, use ohmmeter to check continuity between specified terminals. See Fig 1.
- To check supercharger relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 1. Replace supercharger relay if defective.
