Service Point Locations

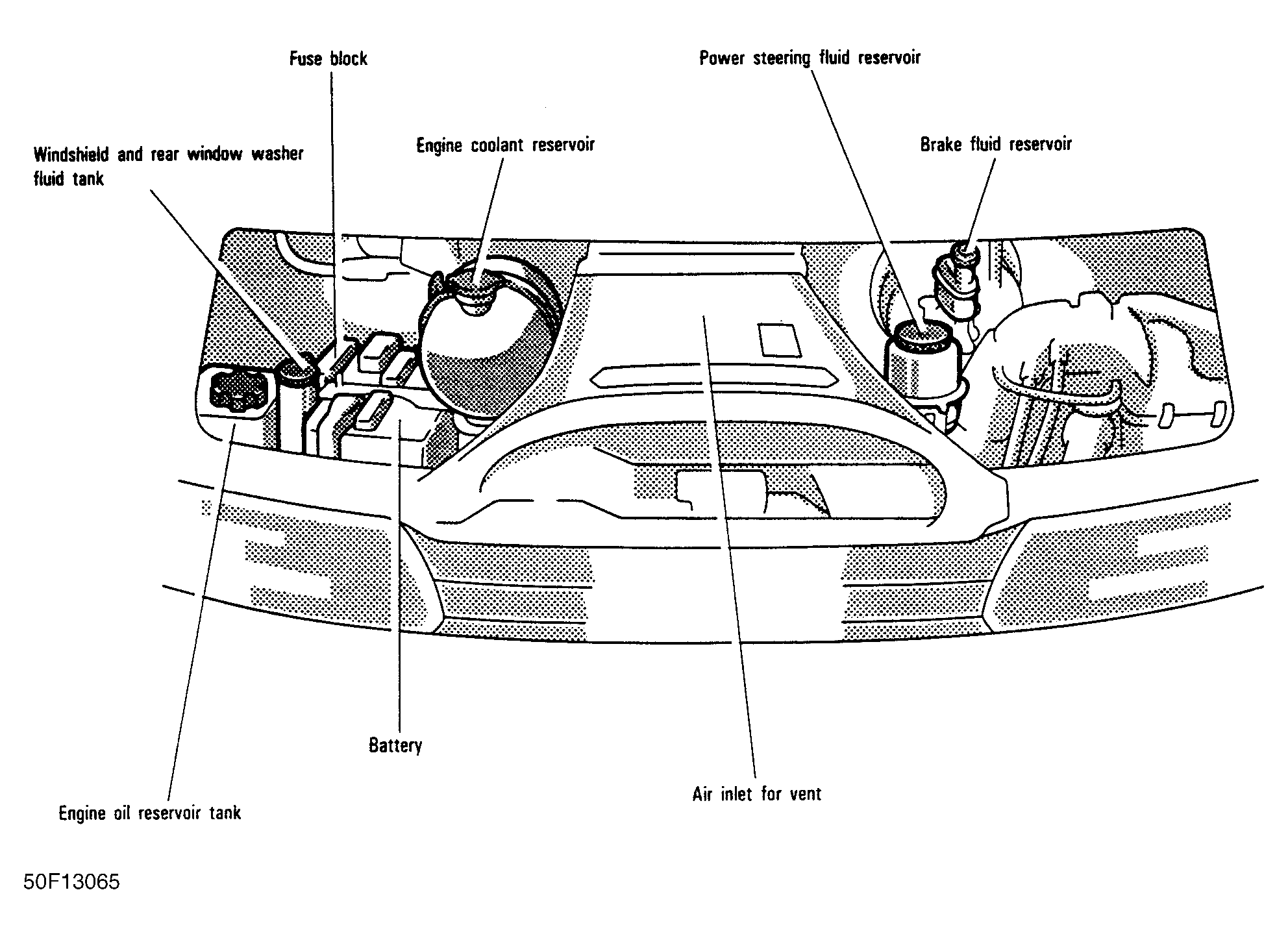

Fig 1: Service Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

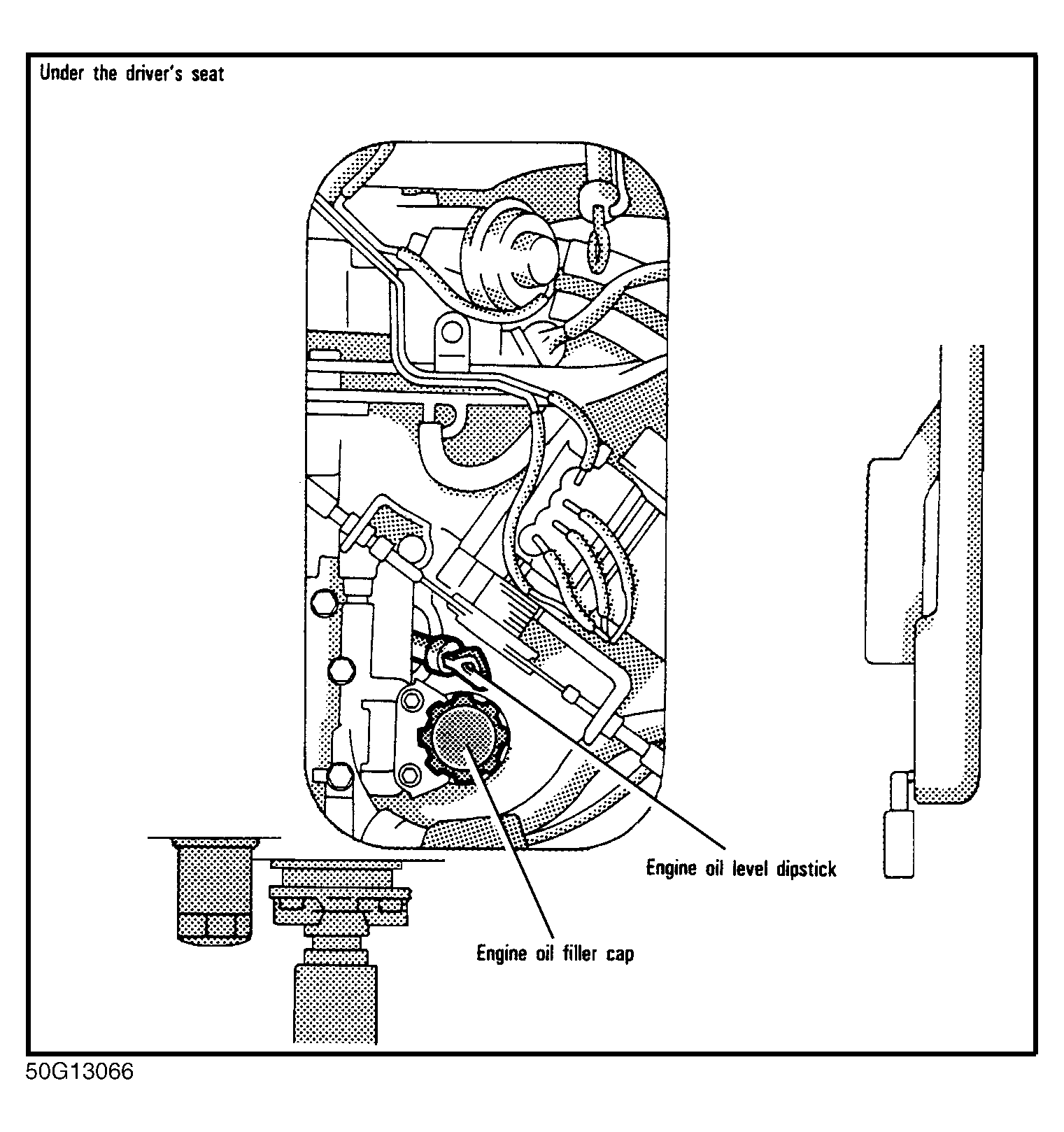

Fig 2: Service Point Locations - Under Driver's Seat
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

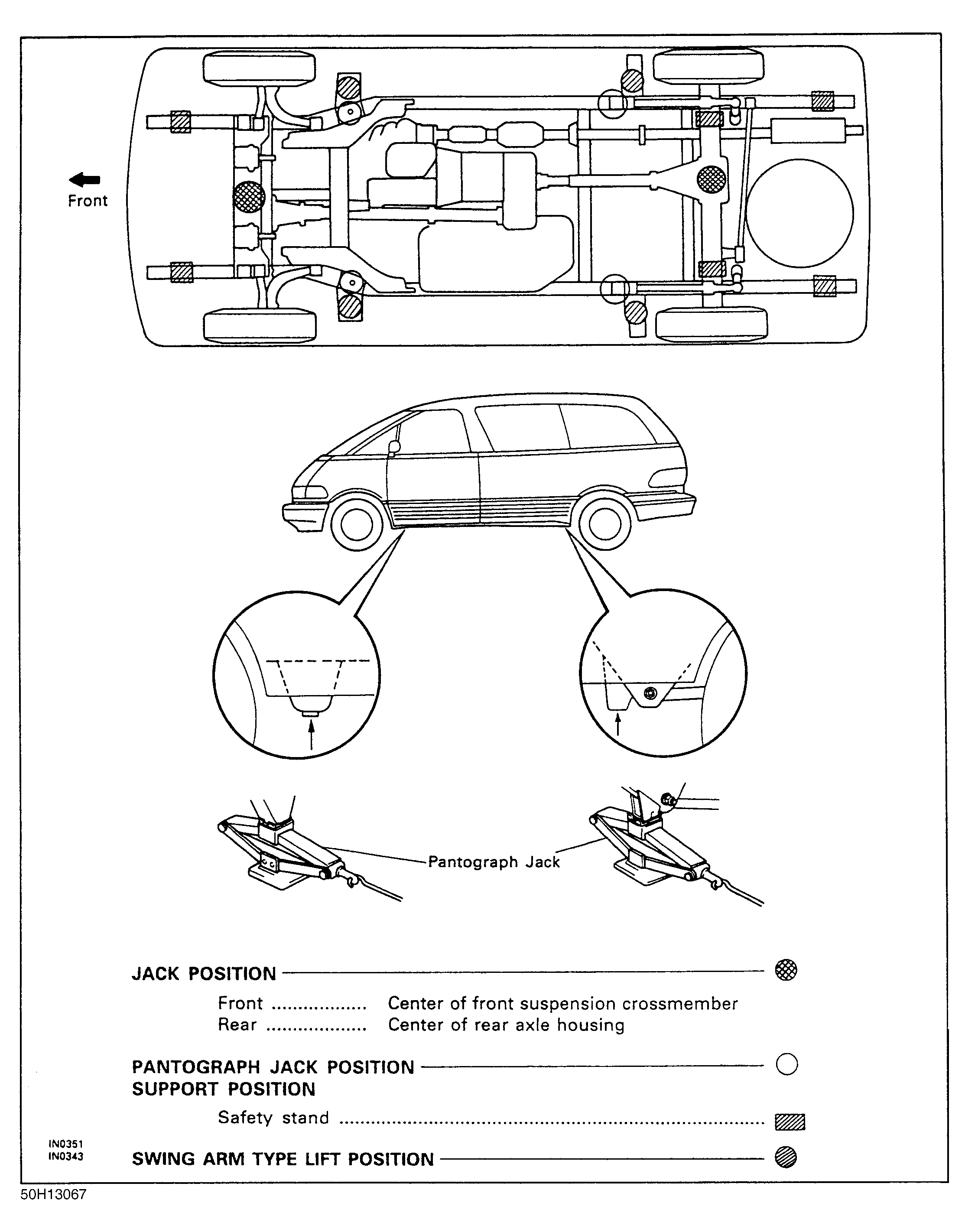

Fig 3: Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

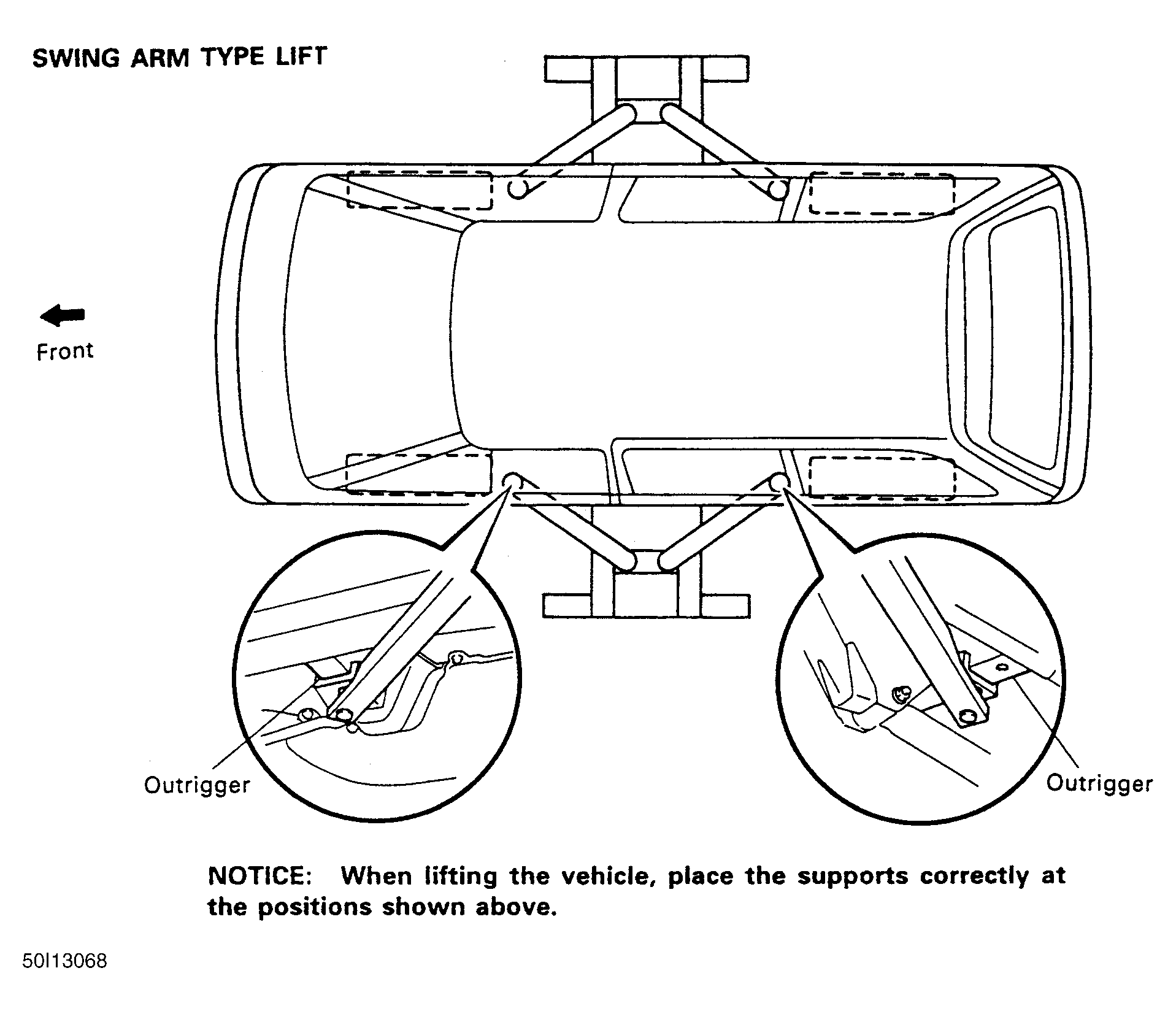

Fig 4: Lift Point Locations - Swing Arm Lift
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WARNING:
DO NOT use the plate type lift on this vehicle. This type of lift will cause the body shape to warp.
