Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

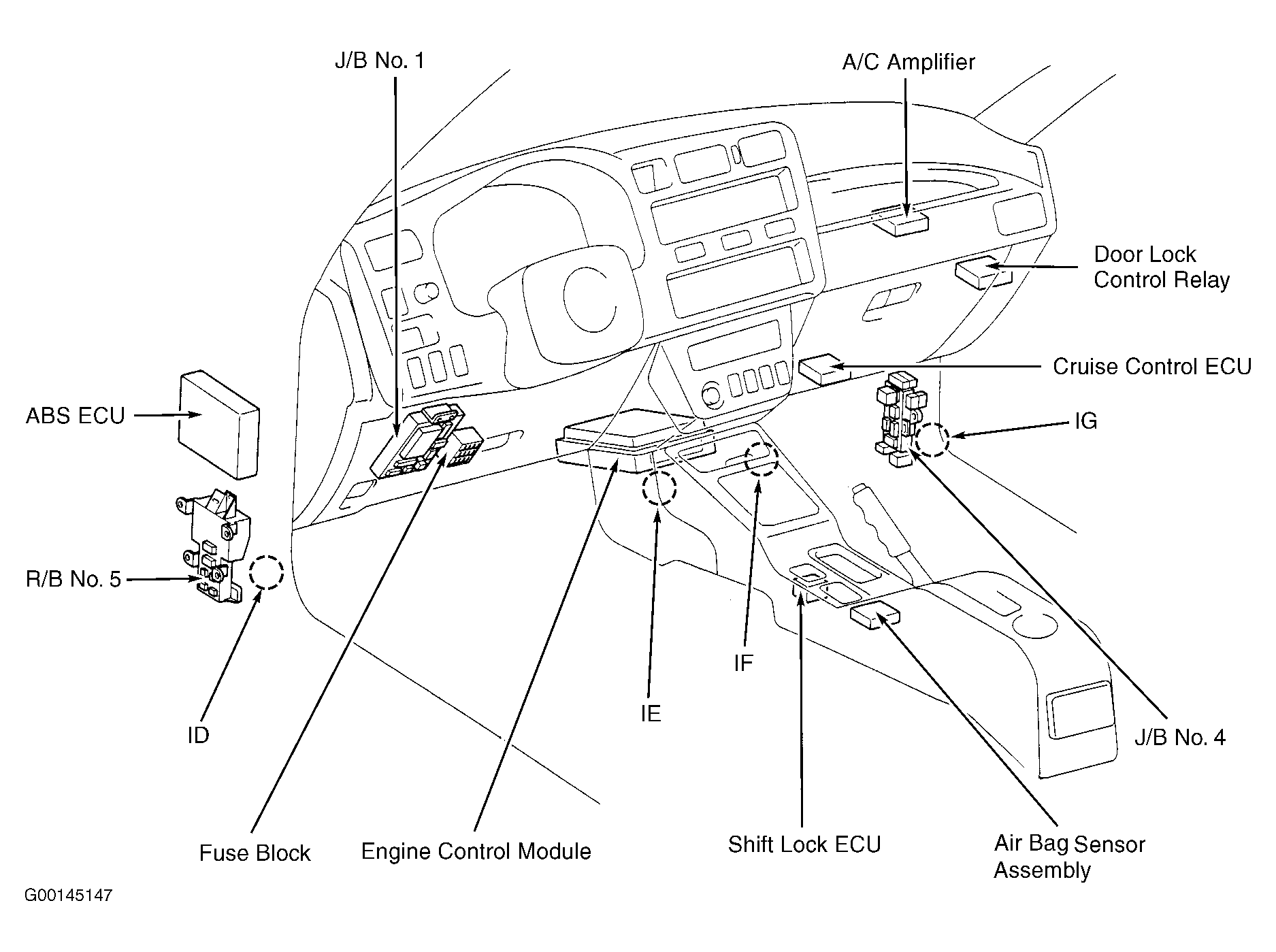

| Fuse Block | On lower left side of dash. See Figure. |

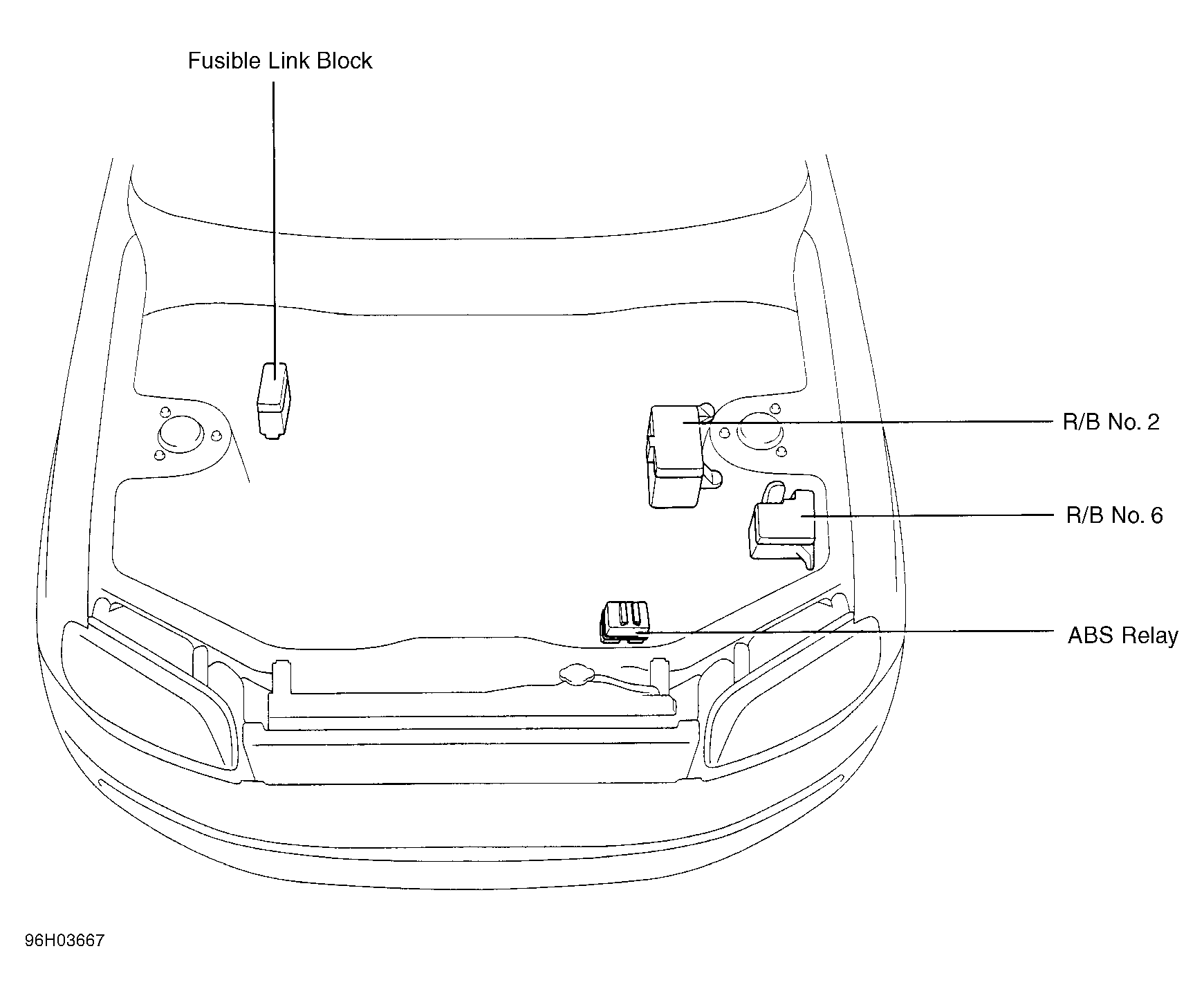

| Fusible Link Block | On right side of engine compartment, near battery. See Figure. |
| J/B No. 1 | On lower left side of dash. See Figure. |
| J/B No. 3 | Behind center of dash. |
| J/B No. 4 | At right kick panel. See Figure. |
| R/B No. 2 | On left front strut tower. See Figure. |
| R/B No. 5 | At left kick panel. See Figure. |
| R/B No. 6 | In front of left front strut tower. See Figure. |
