Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

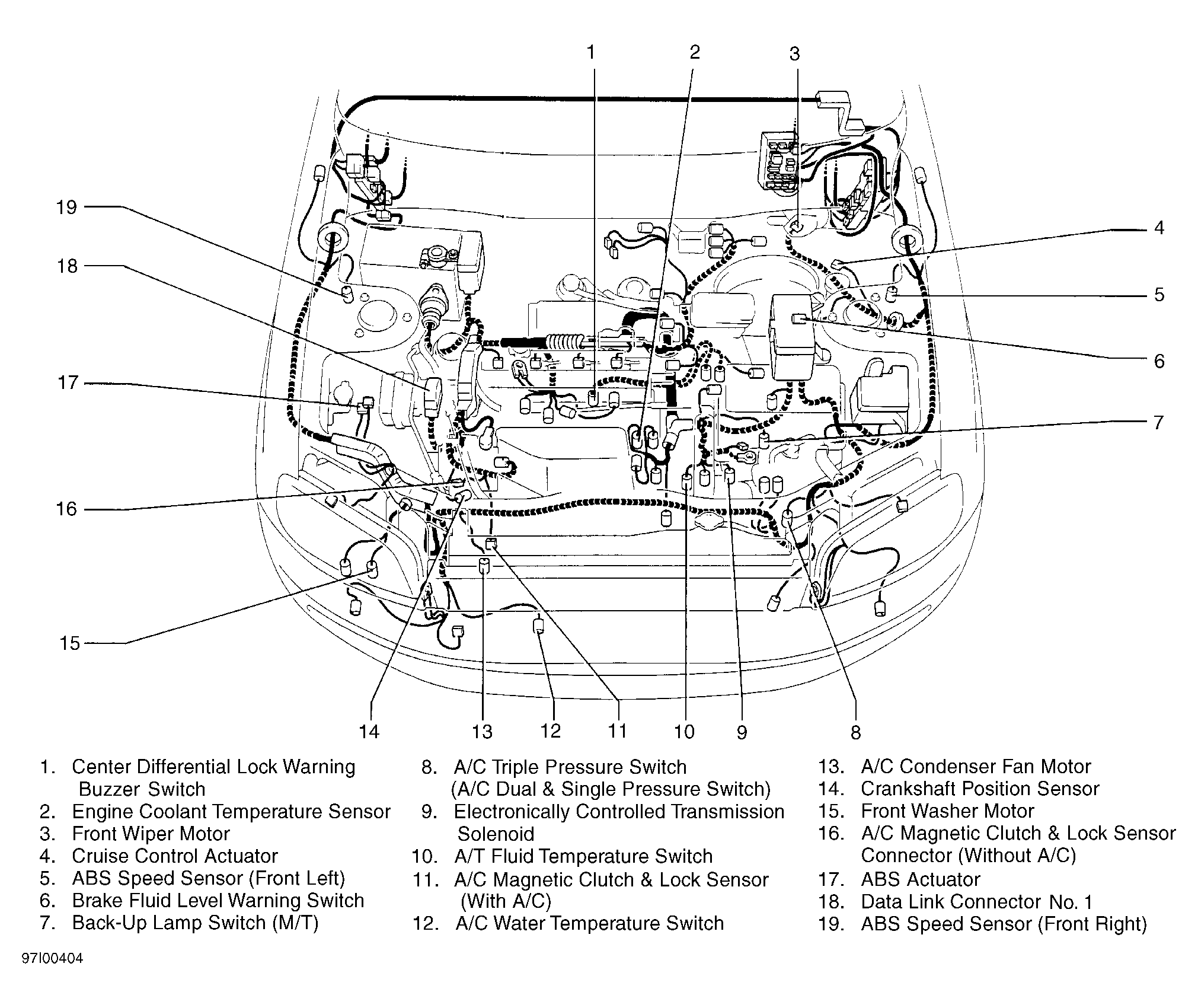

Fig 1: Engine Compartment
G97I00404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Compartment
G96H03667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

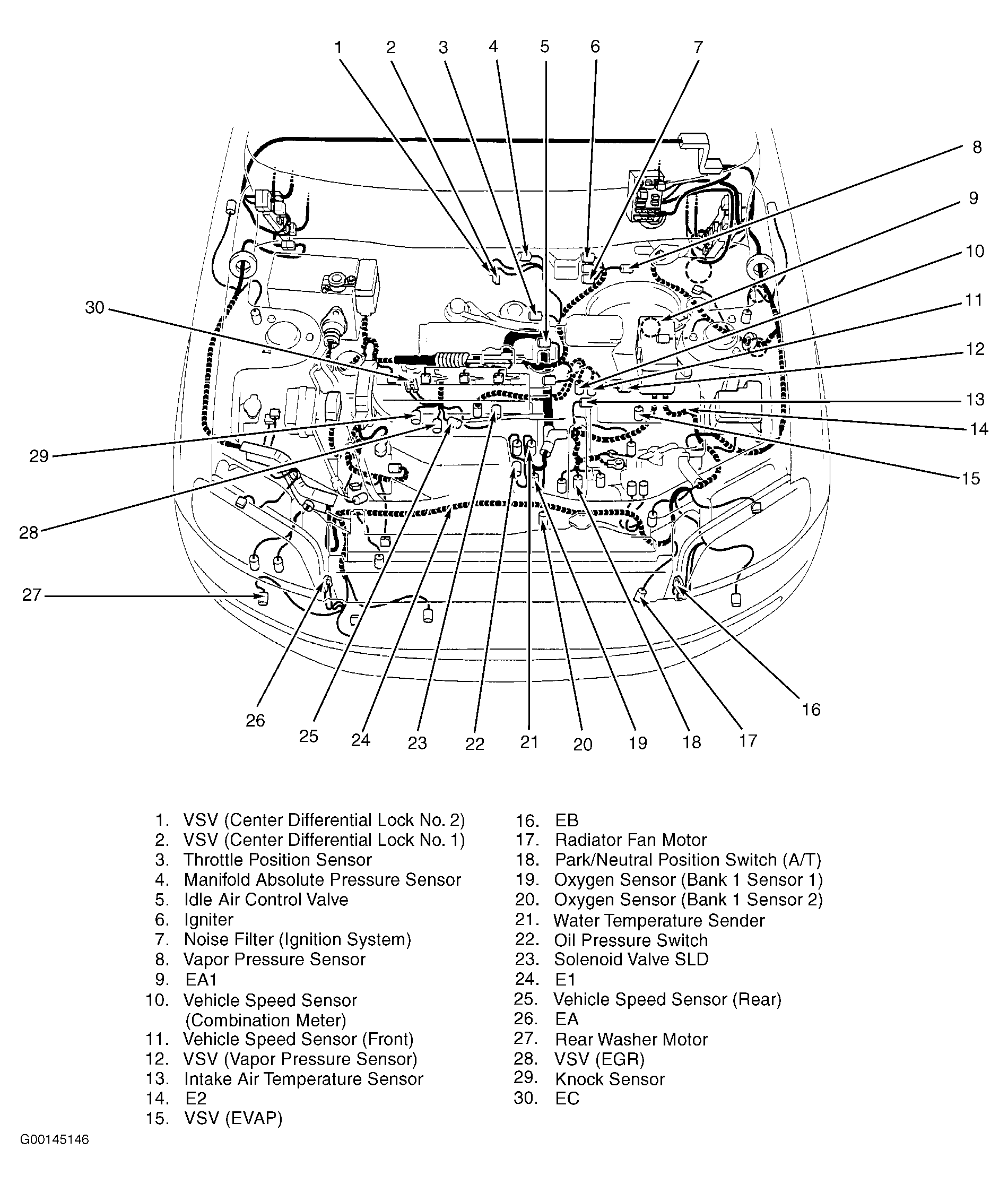

Fig 3: Engine Compartment
G00145146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash
G00145147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
