Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G97I00412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Dash
G00144908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

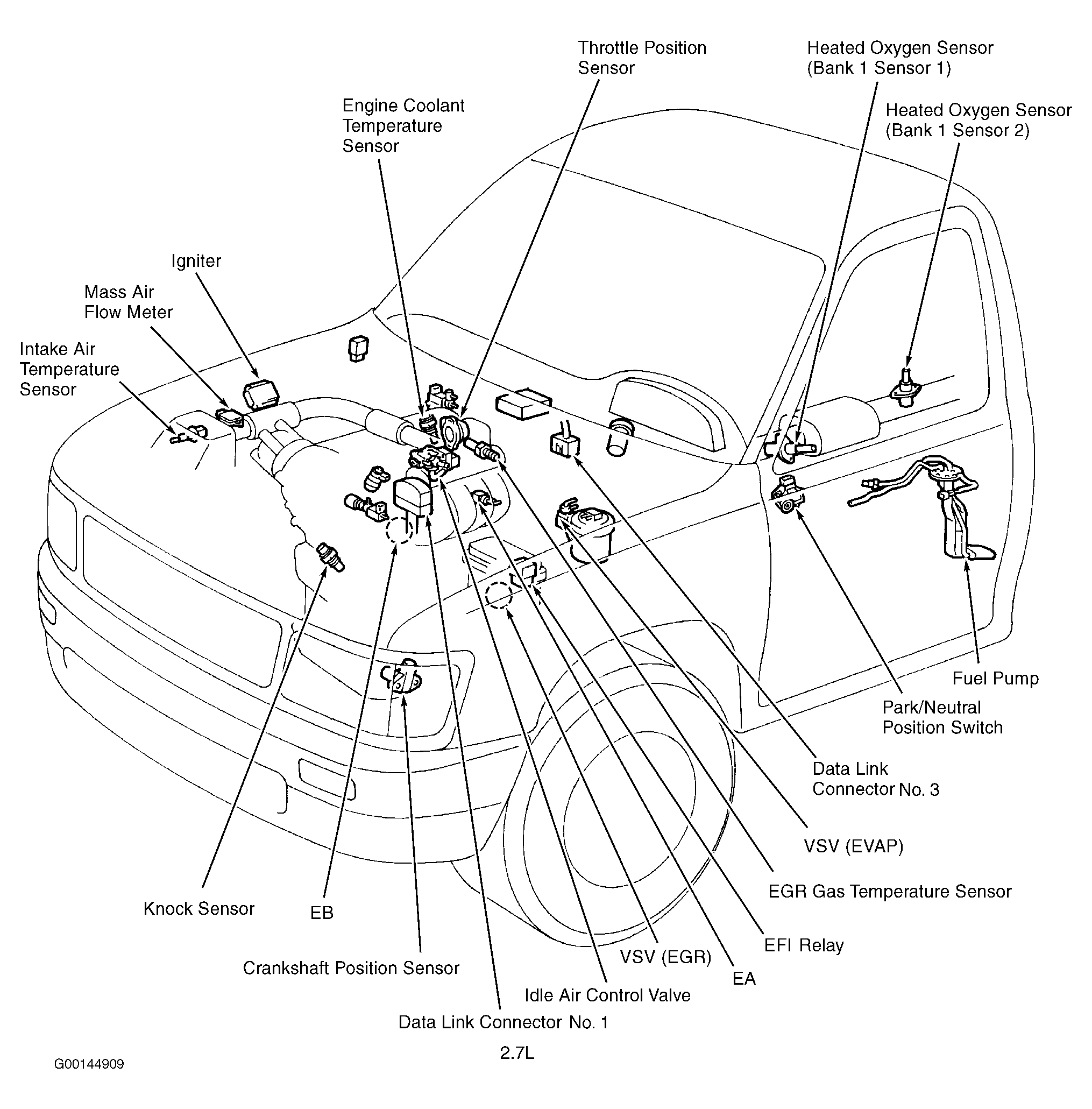

Fig 3: Engine Compartment (2.7L)
G00144909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

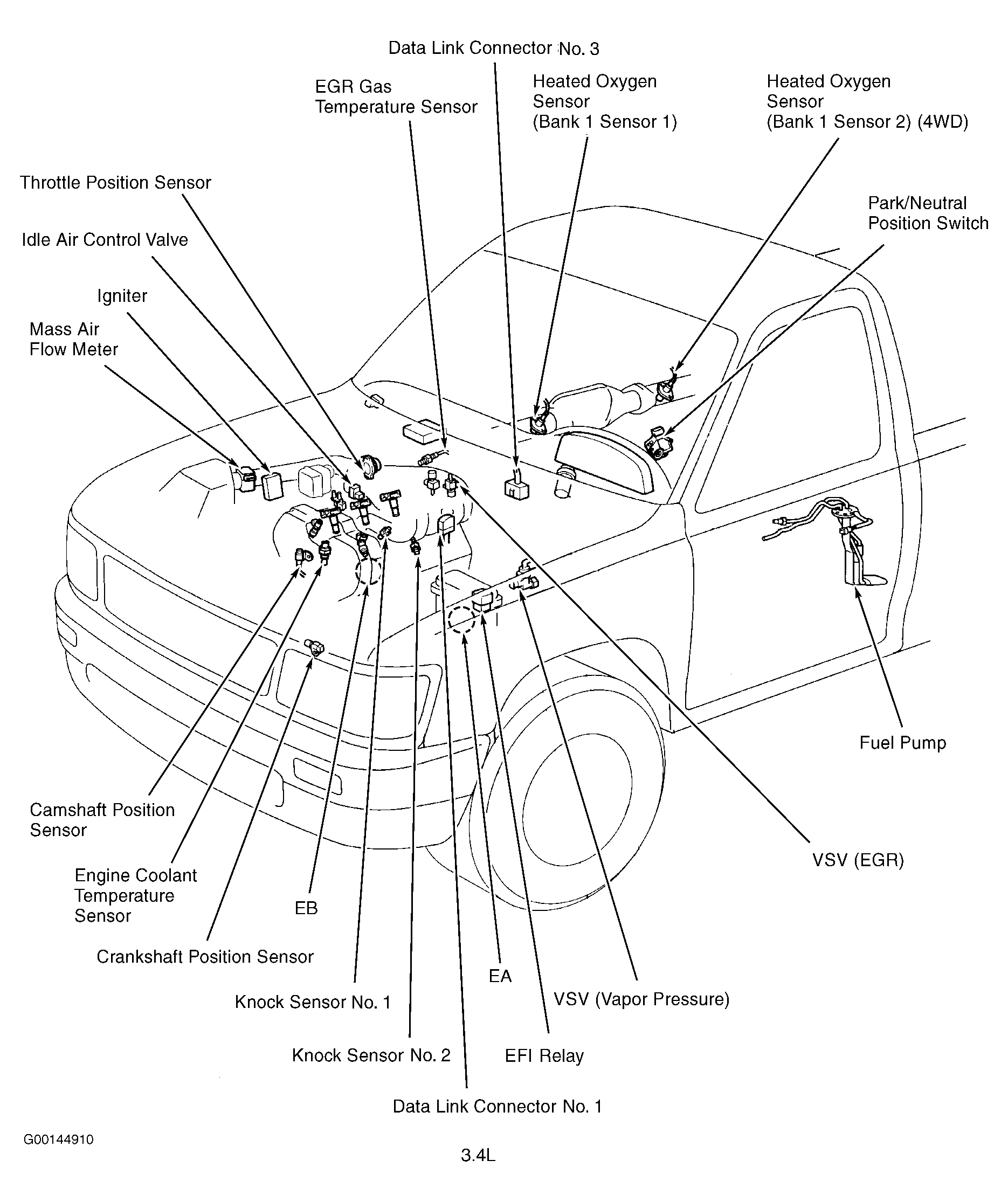

Fig 4: Engine Compartment (3.4L)
G00144910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
