Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

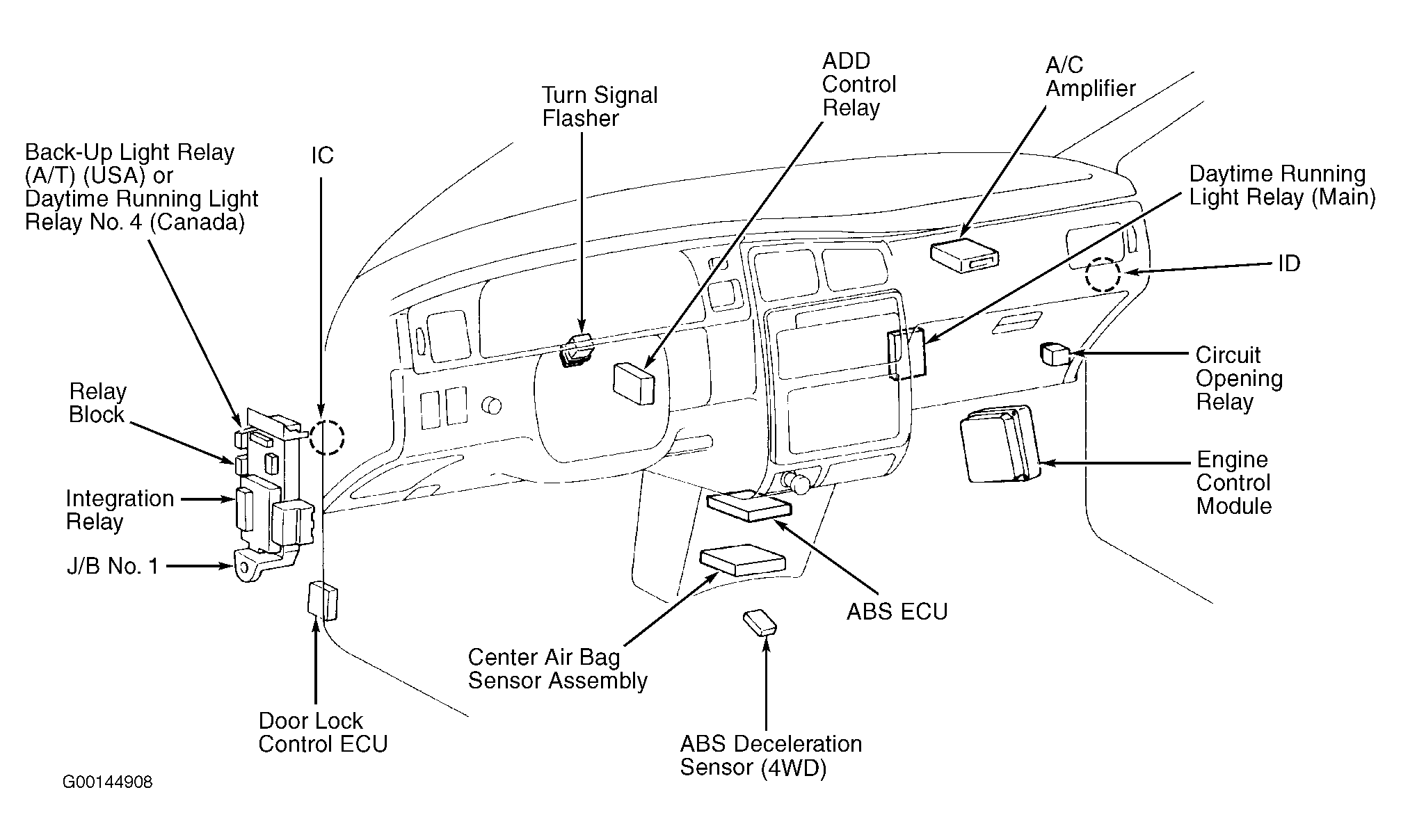

| ABS ECU | Below center of dash. See Figure. |
| A/C Amplifier | Behind right side of dash. See Figure. |
| Center Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control Actuator With ECU | On right side of engine compartment. See Figure. |
| Door Lock Control ECU | At left kick panel. See Figure. |
| Engine Control Module | Below right side of dash, near kick panel. See Figure. |
