Service Point Locations

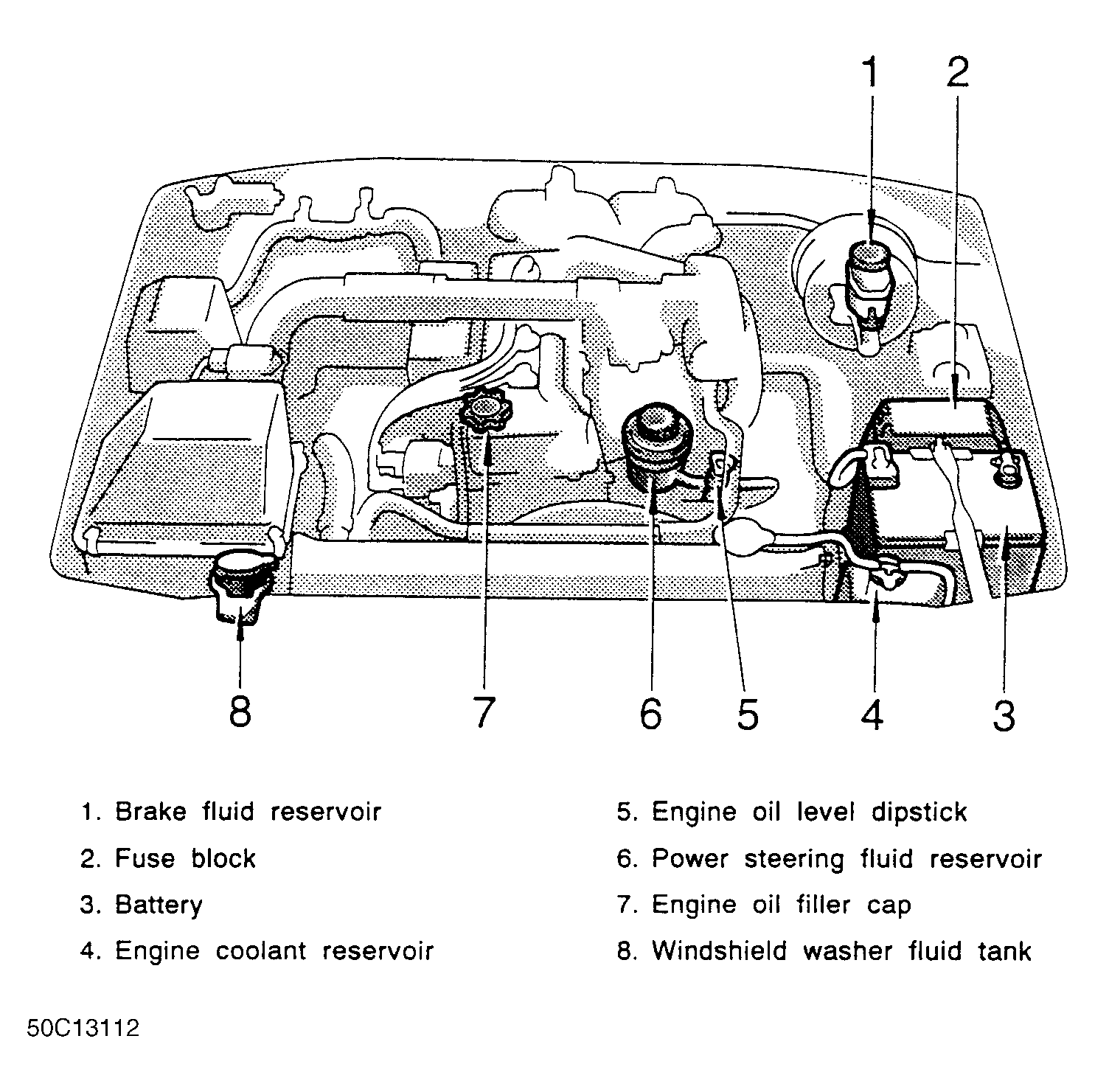

Fig 1: Service Point Locations (3RZ-FE)
G50C13112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

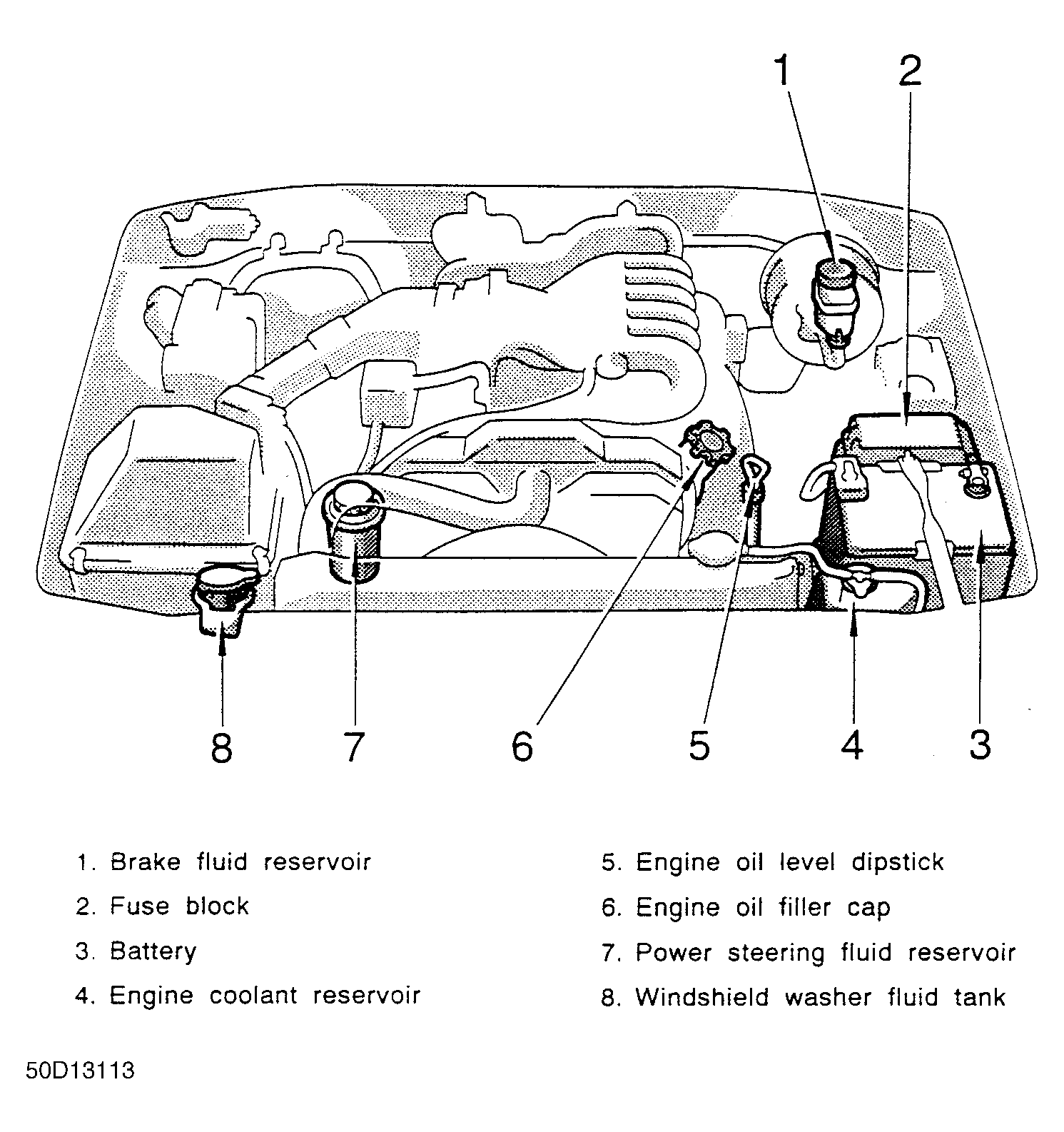

Fig 2: Service Point Locations (5VZ-FE)
G50D13113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

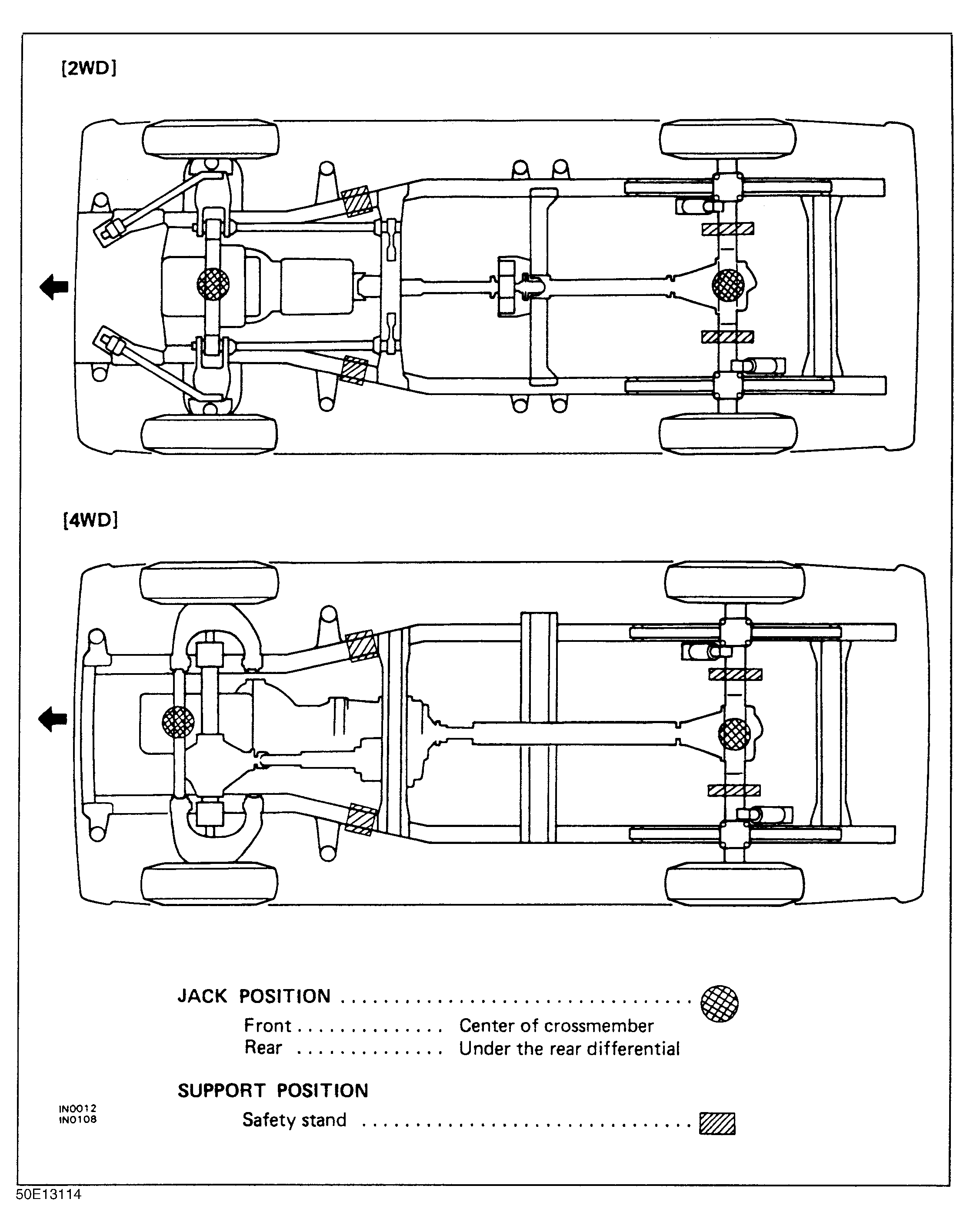

Fig 3: Lift Point Locations
G50E13114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
