Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

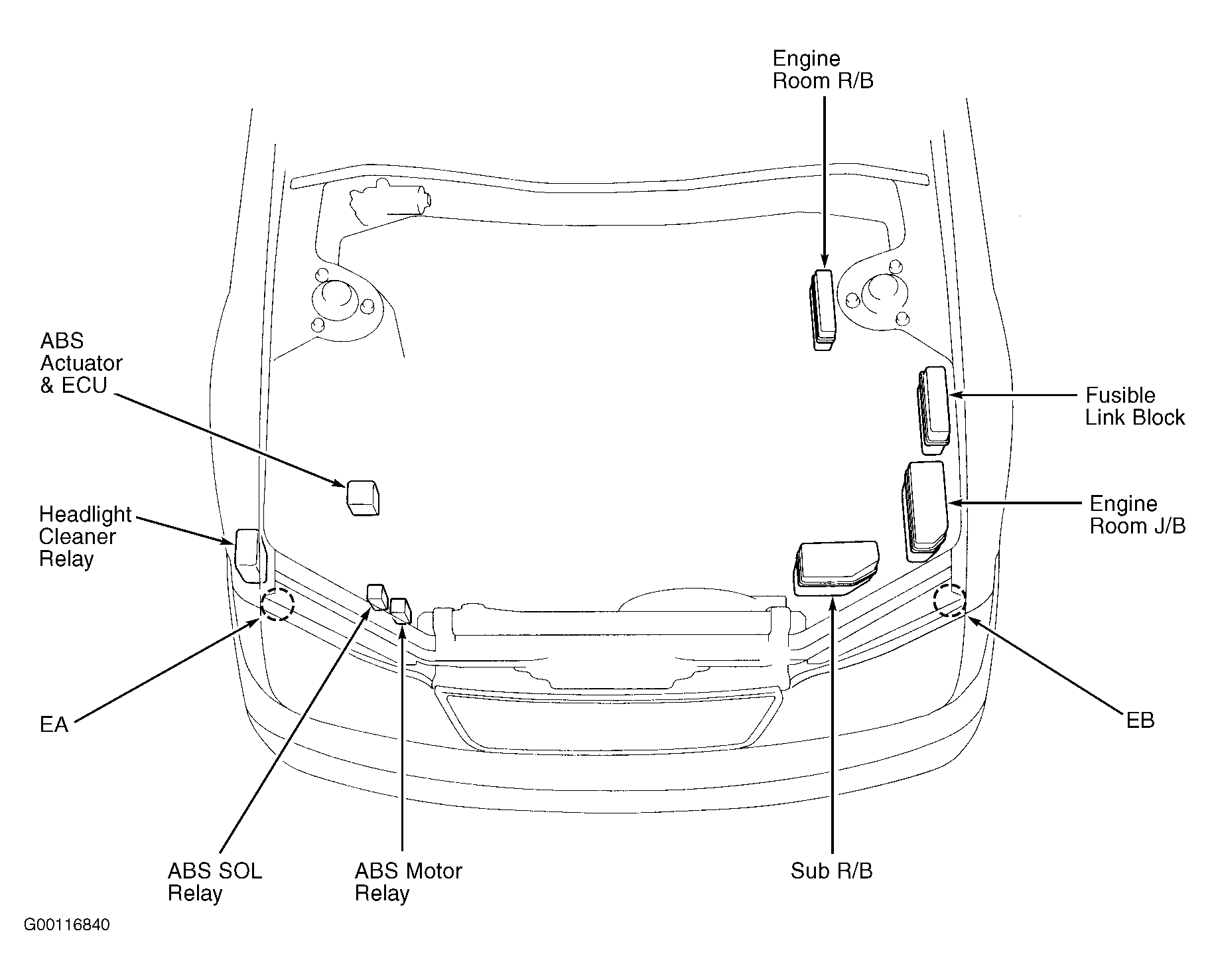

Fig 1: Engine Compartment
G00116840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

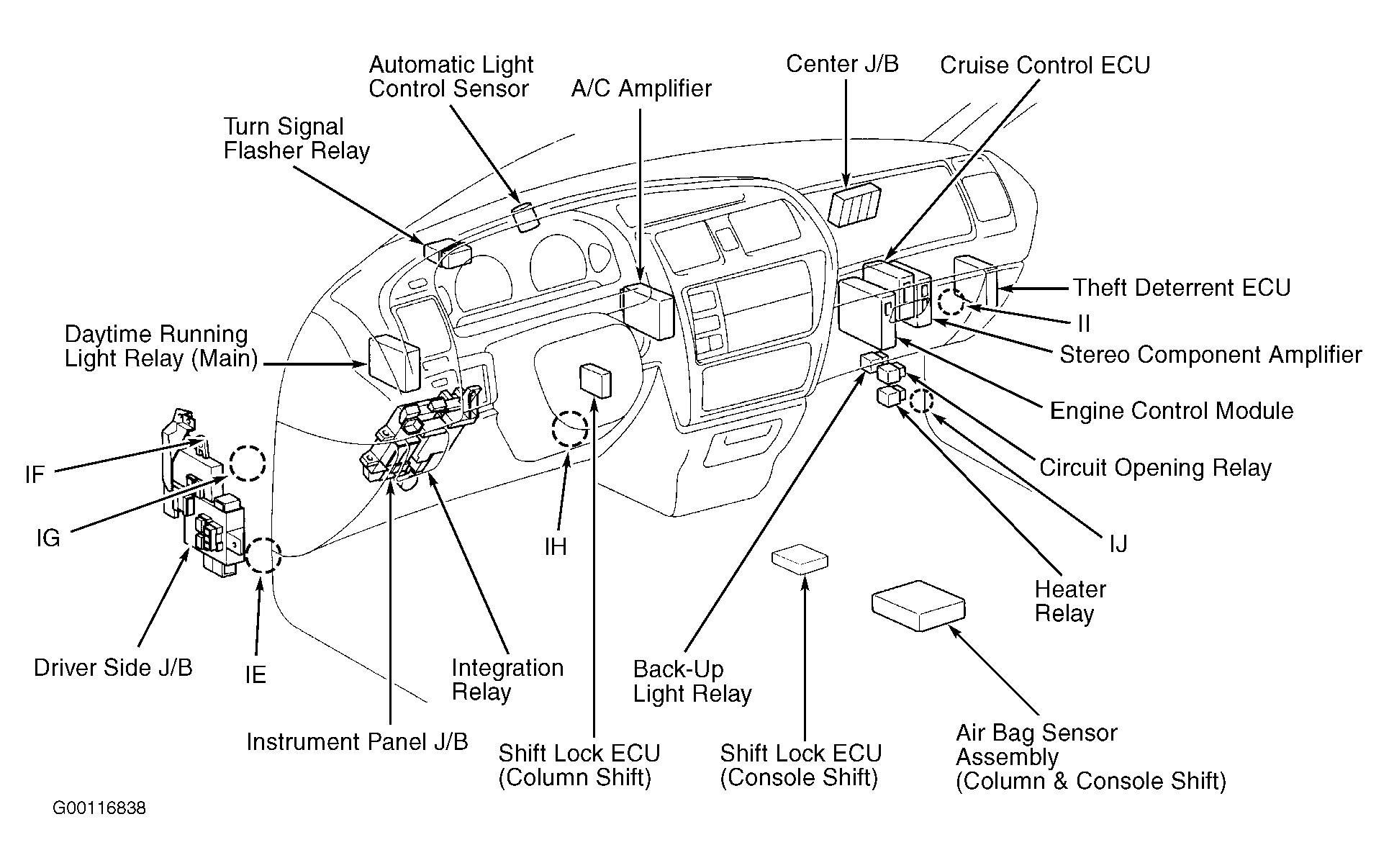

Fig 2: Dash
G00116838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

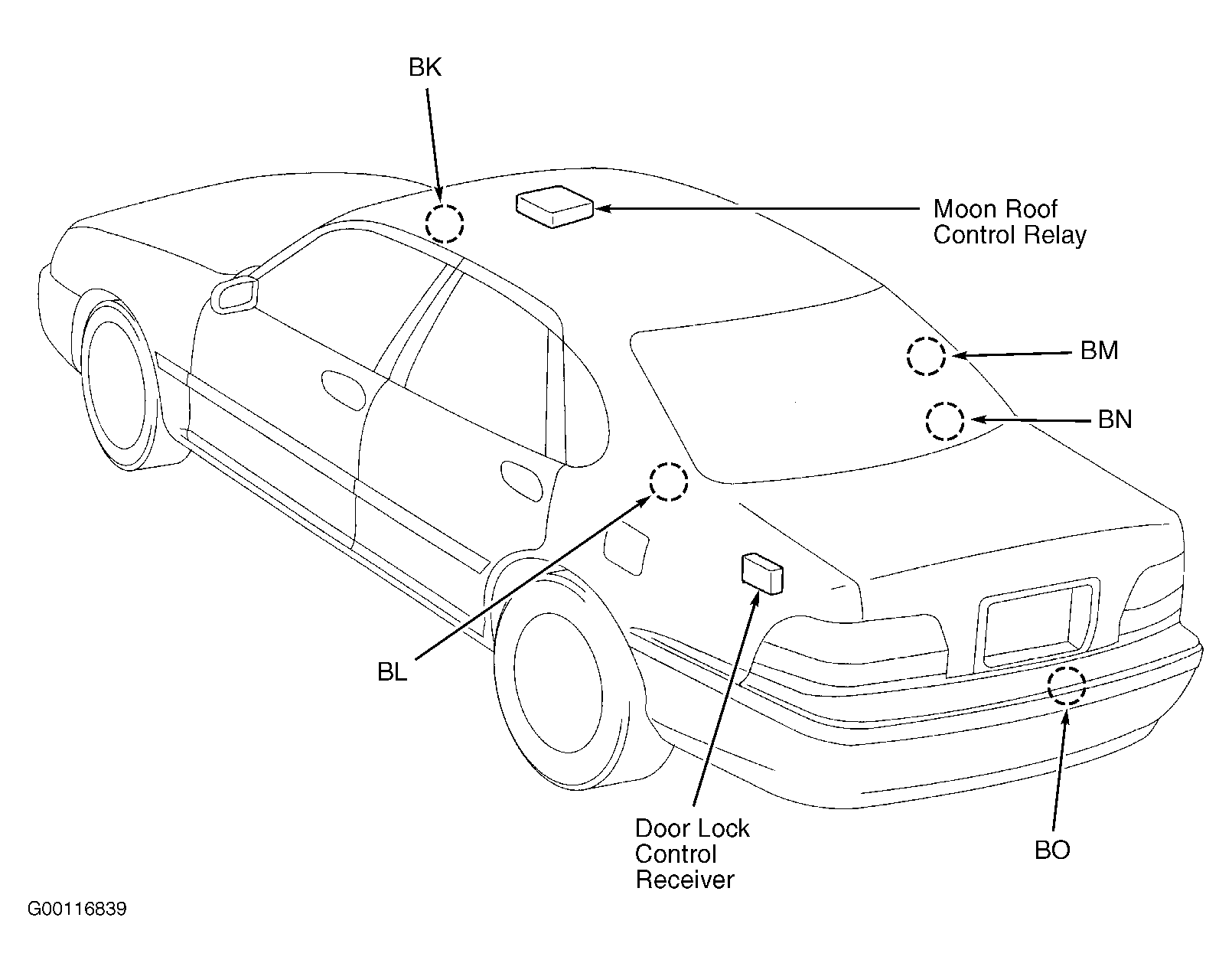

Fig 3: Vehicle Overview
G00116839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

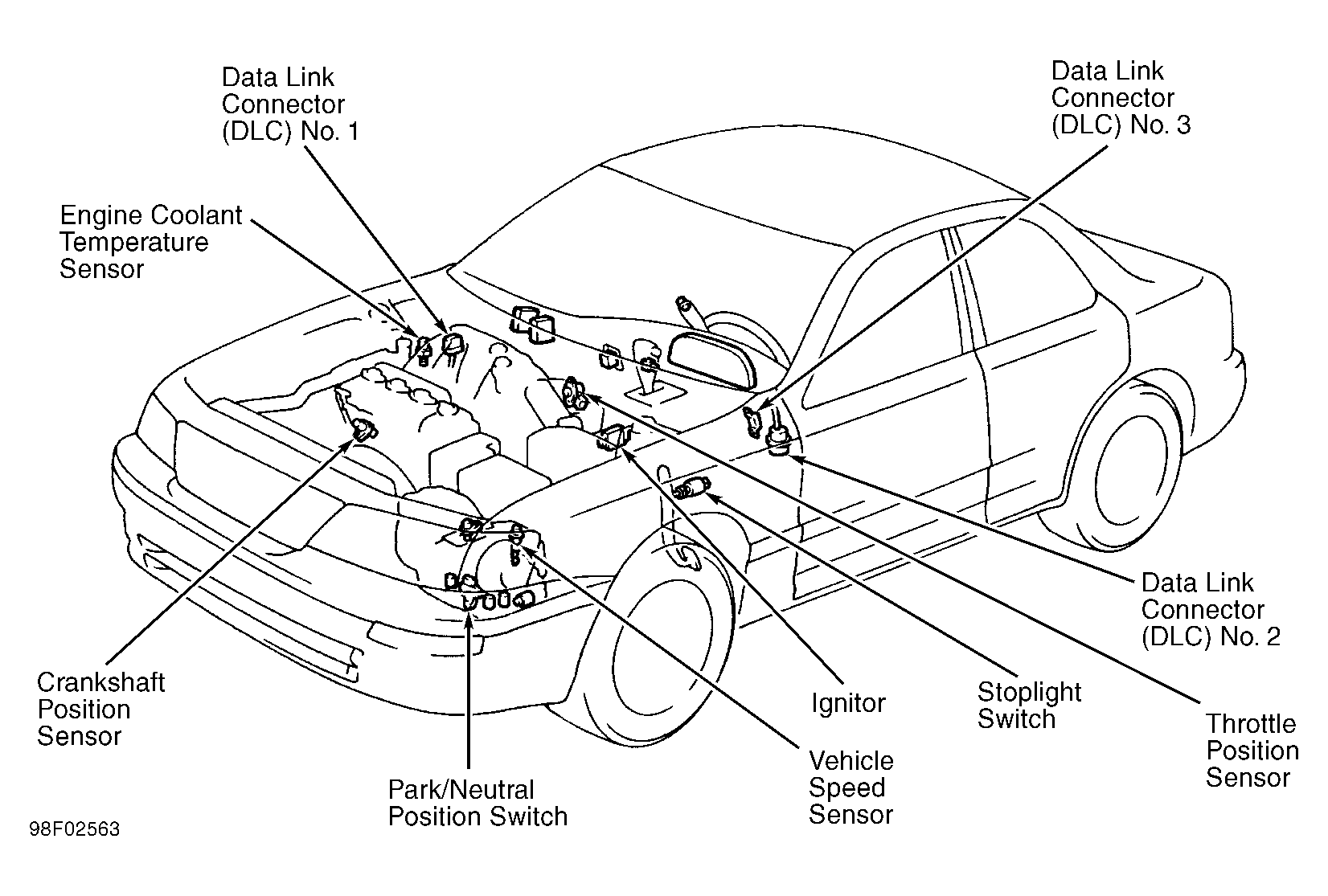

Fig 4: Engine Compartment
G98F02563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
