Transmitter Programming

NOTE: System is equipped with 2 transmitters having 2 unique vehicle access codes programmed into ECU.

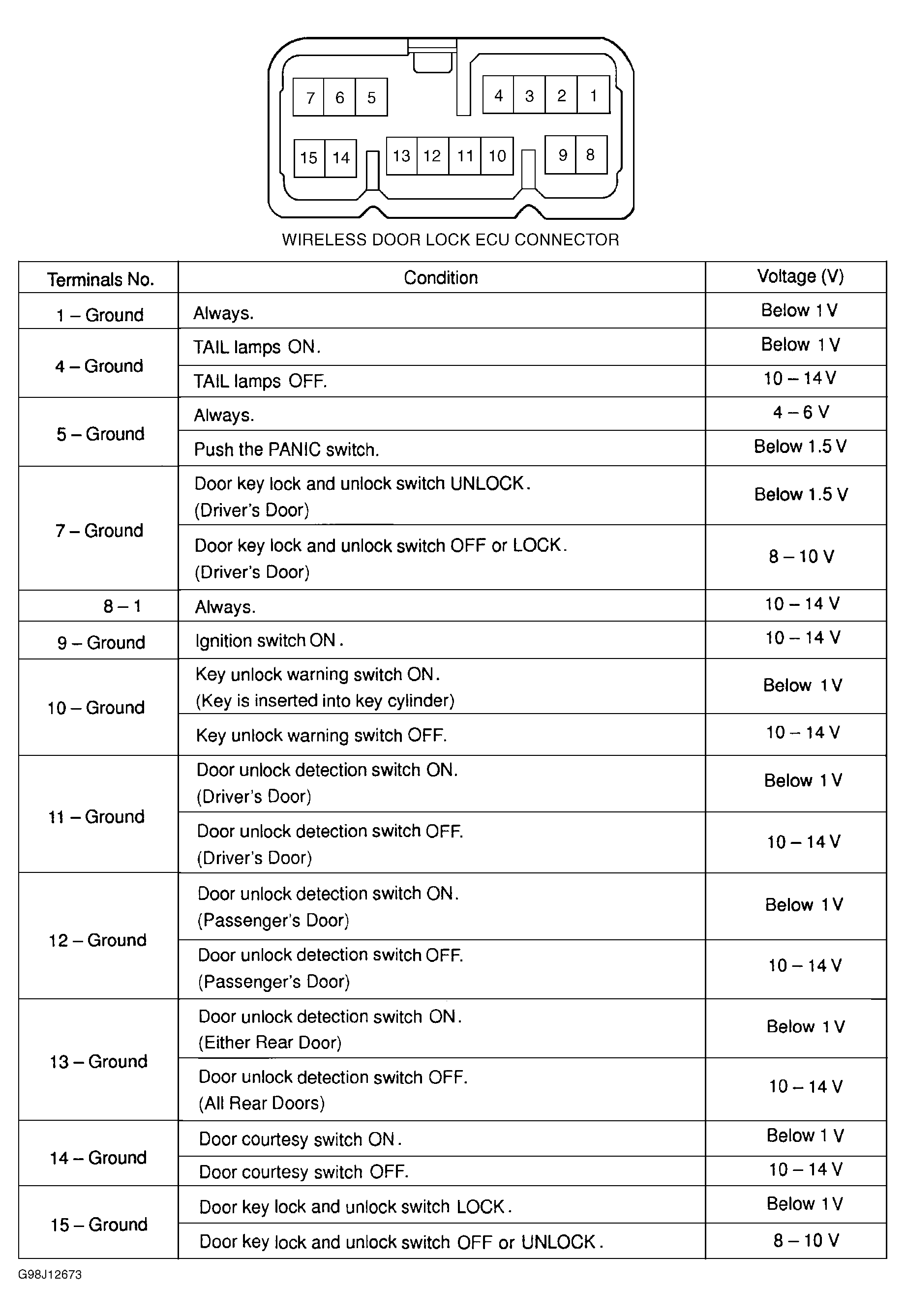

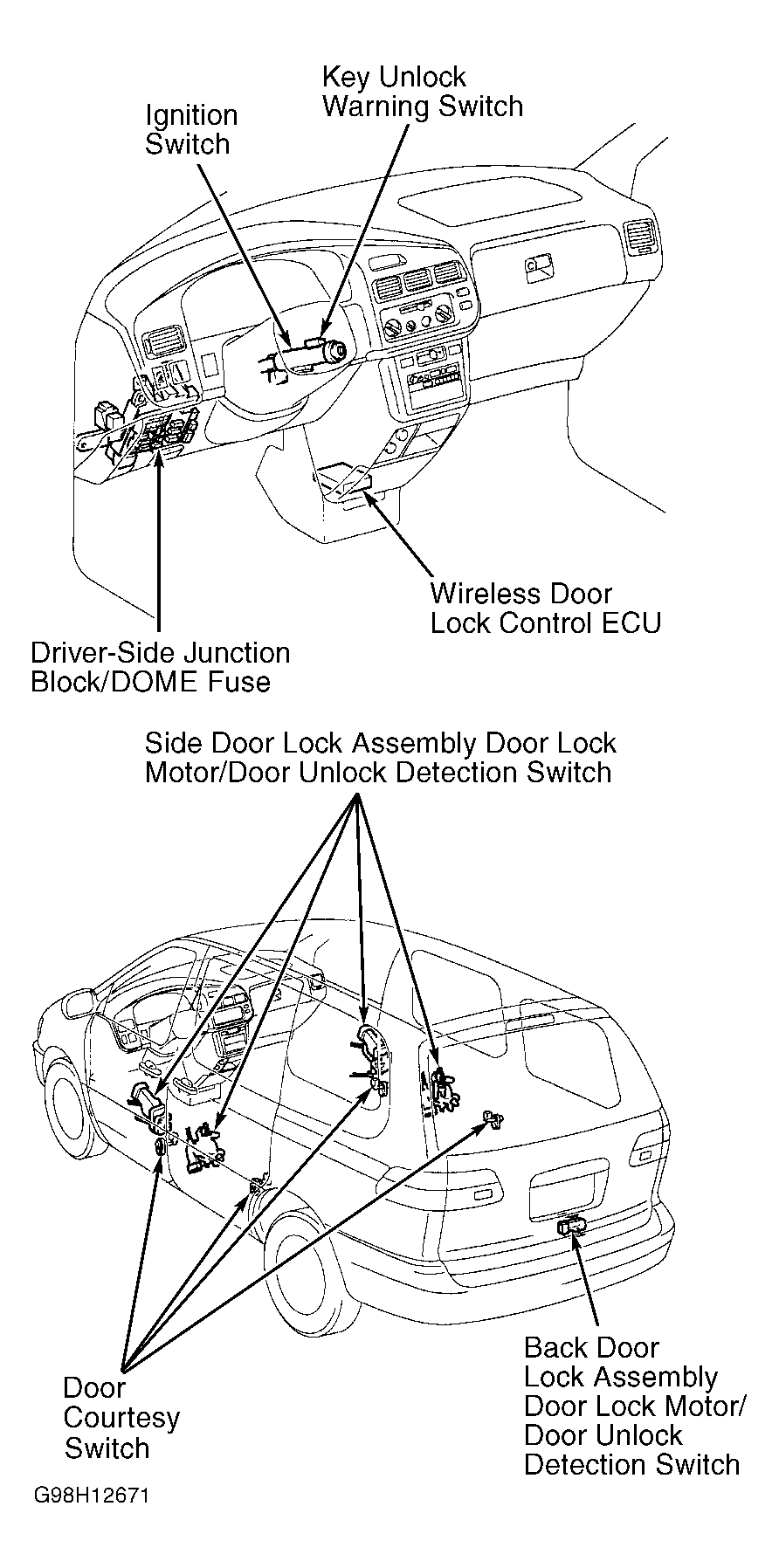

  1. Locate wireless door lock ECU below radio. See Figure. Connect jumper wire between wireless door lock ECU connector PRG terminal No. 9 (Purple wire) and GND terminal No. 1 (White/Black wire) terminals. See Figure. All doors should lock and unlock. Depress any single button on No. 1 transmitter. All doors should lock and unlock.
  2. Program No. 2 transmitter by repeating step  1. When programming is complete, remove jumper wire from wireless door lock ECU connector terminals No. 9 (Purple wire) and No. 1 (White/Black wire). Operate transmitters to ensure proper programming.
