Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

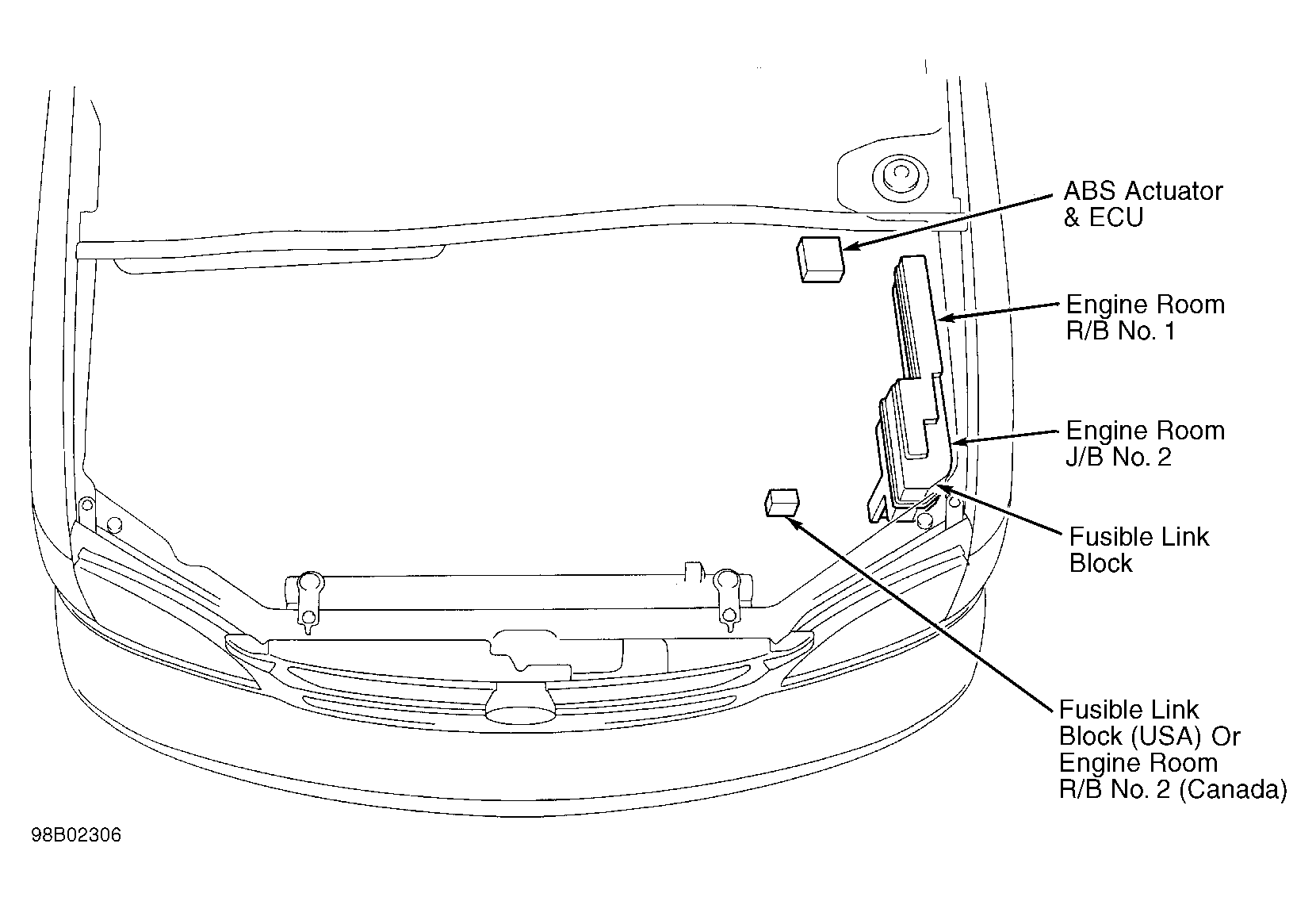

| ABS Actuator & ECU | On left rear of engine compartment. See Figure. |

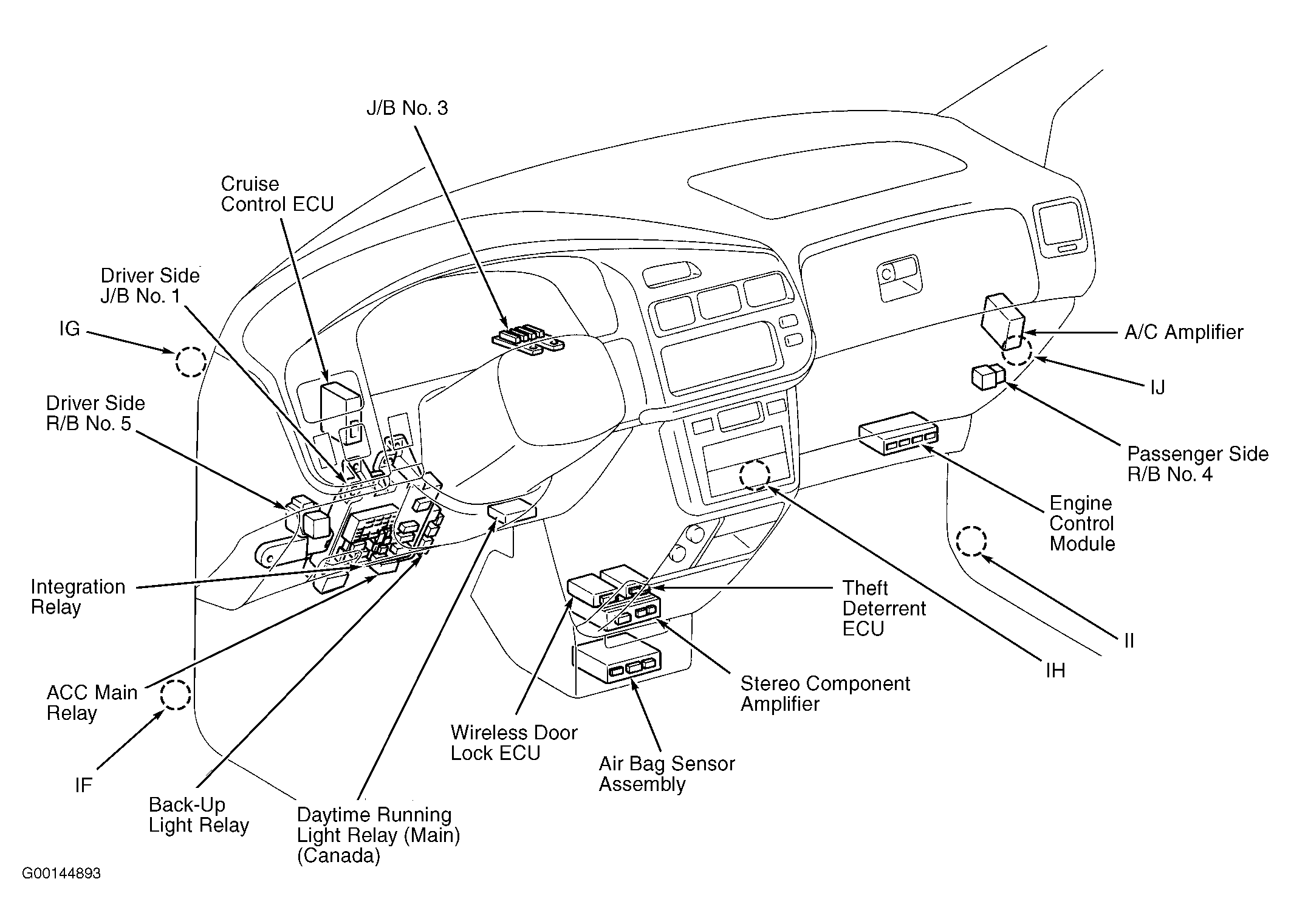

| A/C Amplifier | Behind right side of dash, above kick panel. See Figure. |
| Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control ECU | Behind left side of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Stereo Component Amplifier | Behind center of dash. See Figure. |
| Theft Deterrent ECU | Below center of dash. See Figure. |
| Wireless Door Lock ECU | Behind center of dash. See Figure. |
