Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G97I00412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

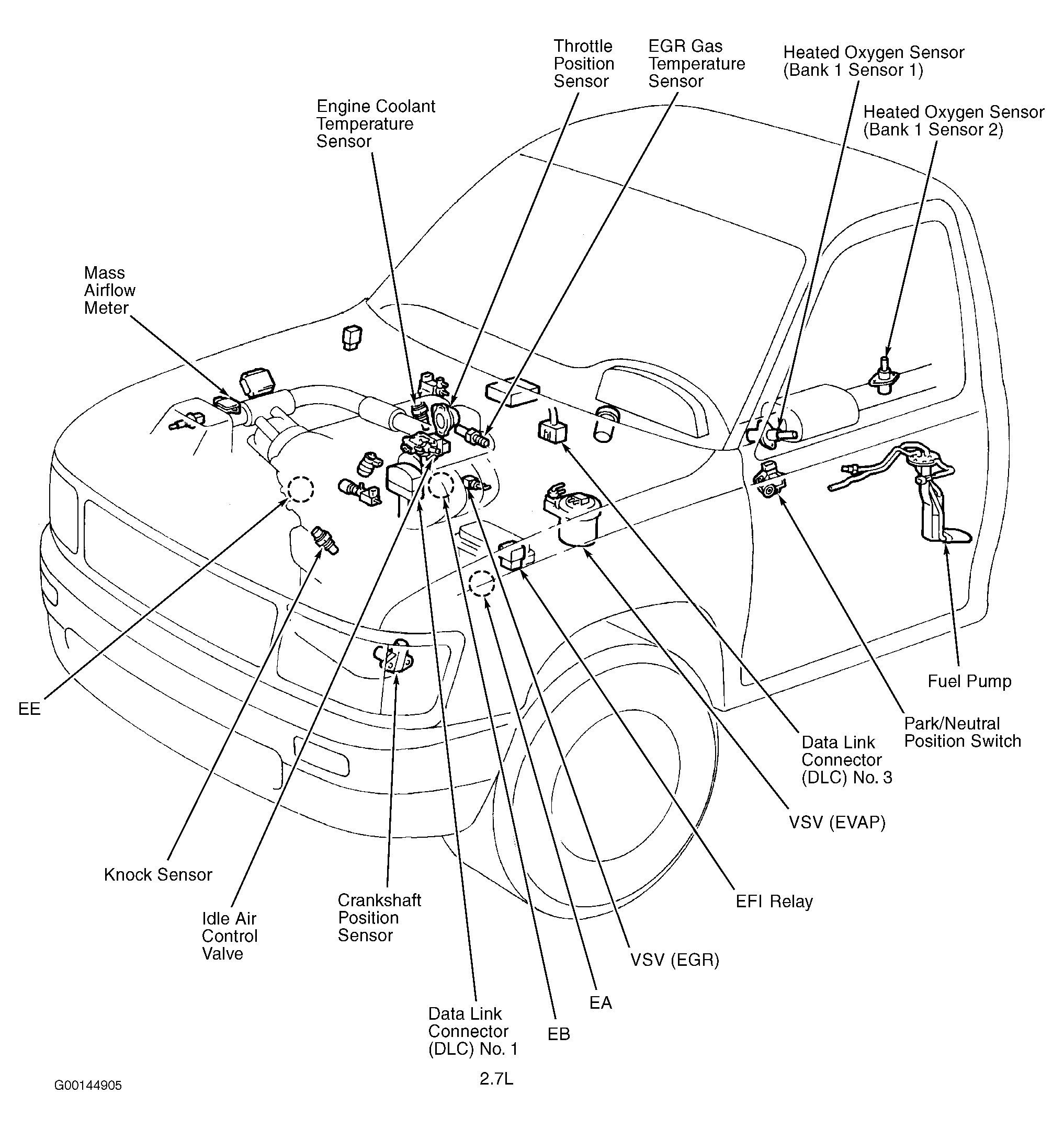

Fig 2: Vehicle Overview (2.7L)
G00144905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

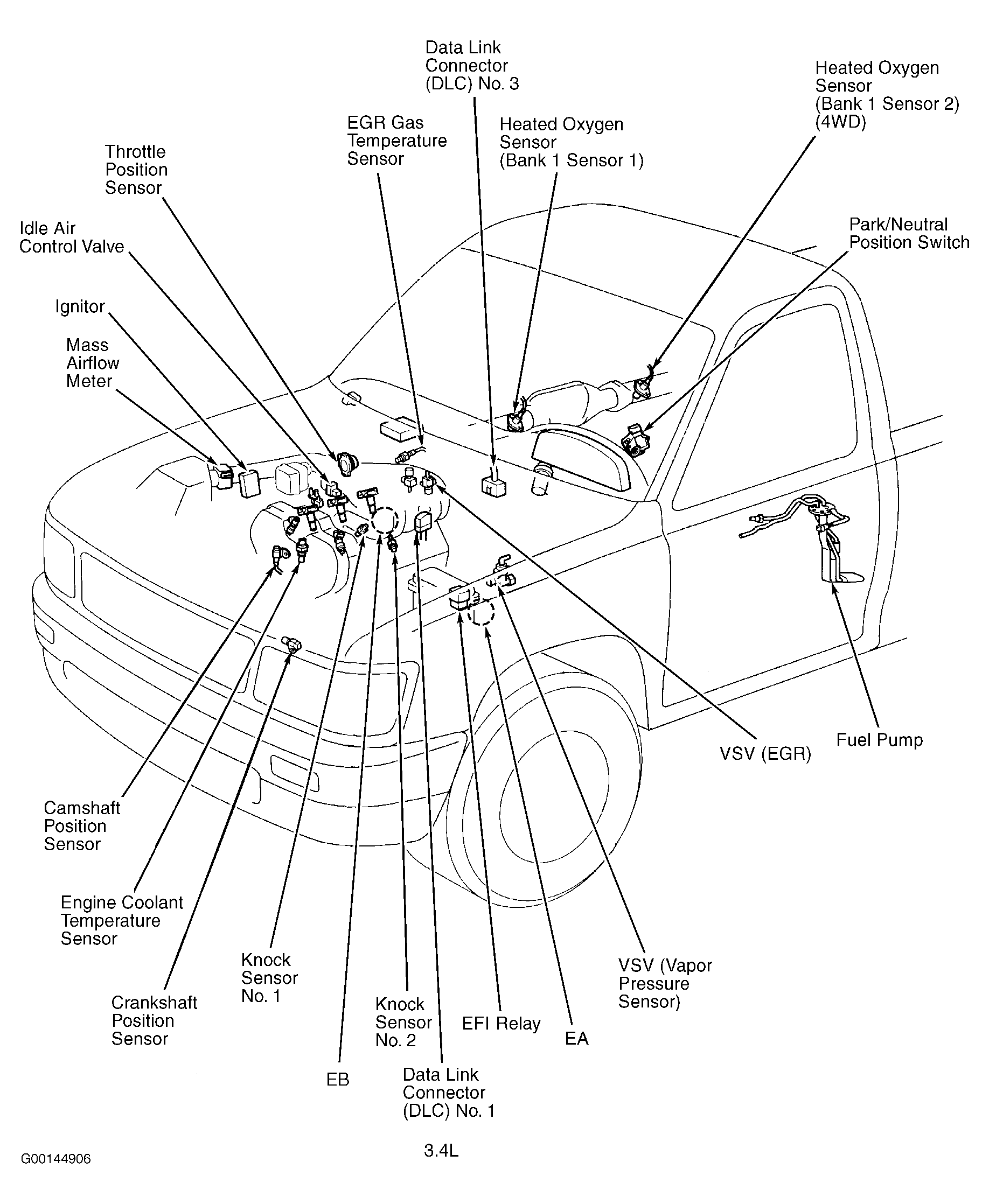

Fig 3: Vehicle Overview (3.4L)
G00144906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash
G00144907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
