Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G98E02384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

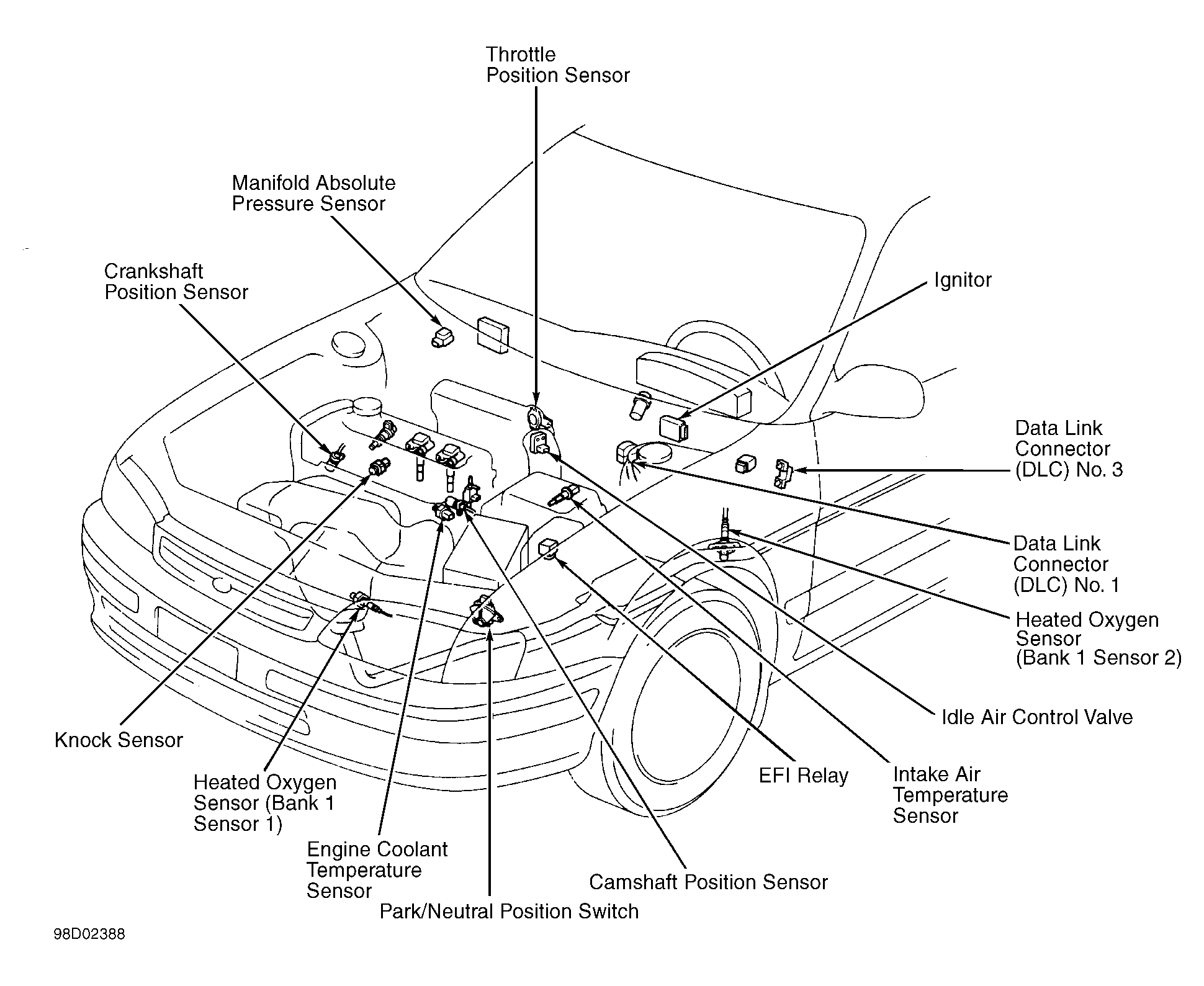

Fig 2: Engine Compartment
G98D02388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Dash
G96B03749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

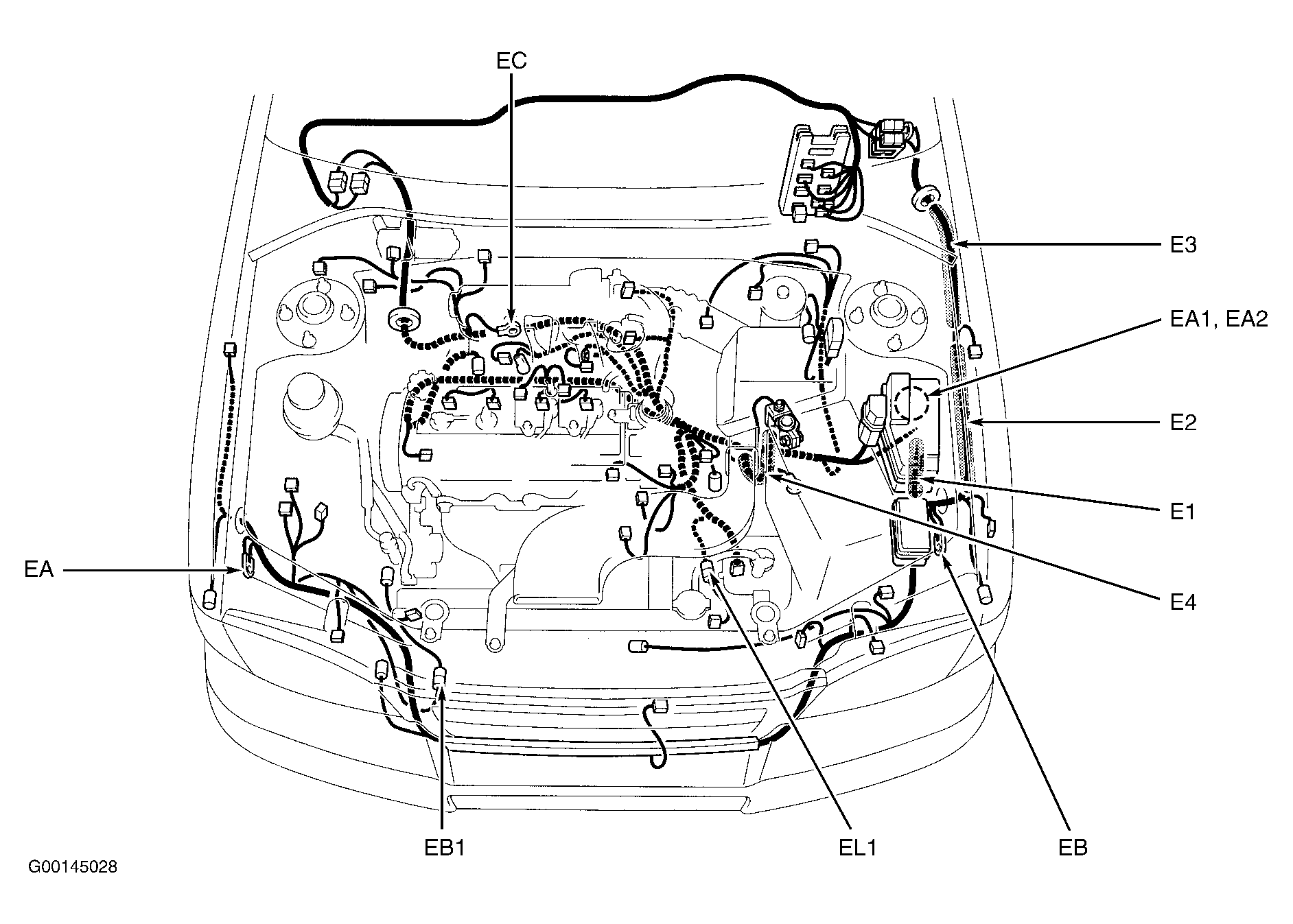

Fig 4: Engine Compartment
G00145028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

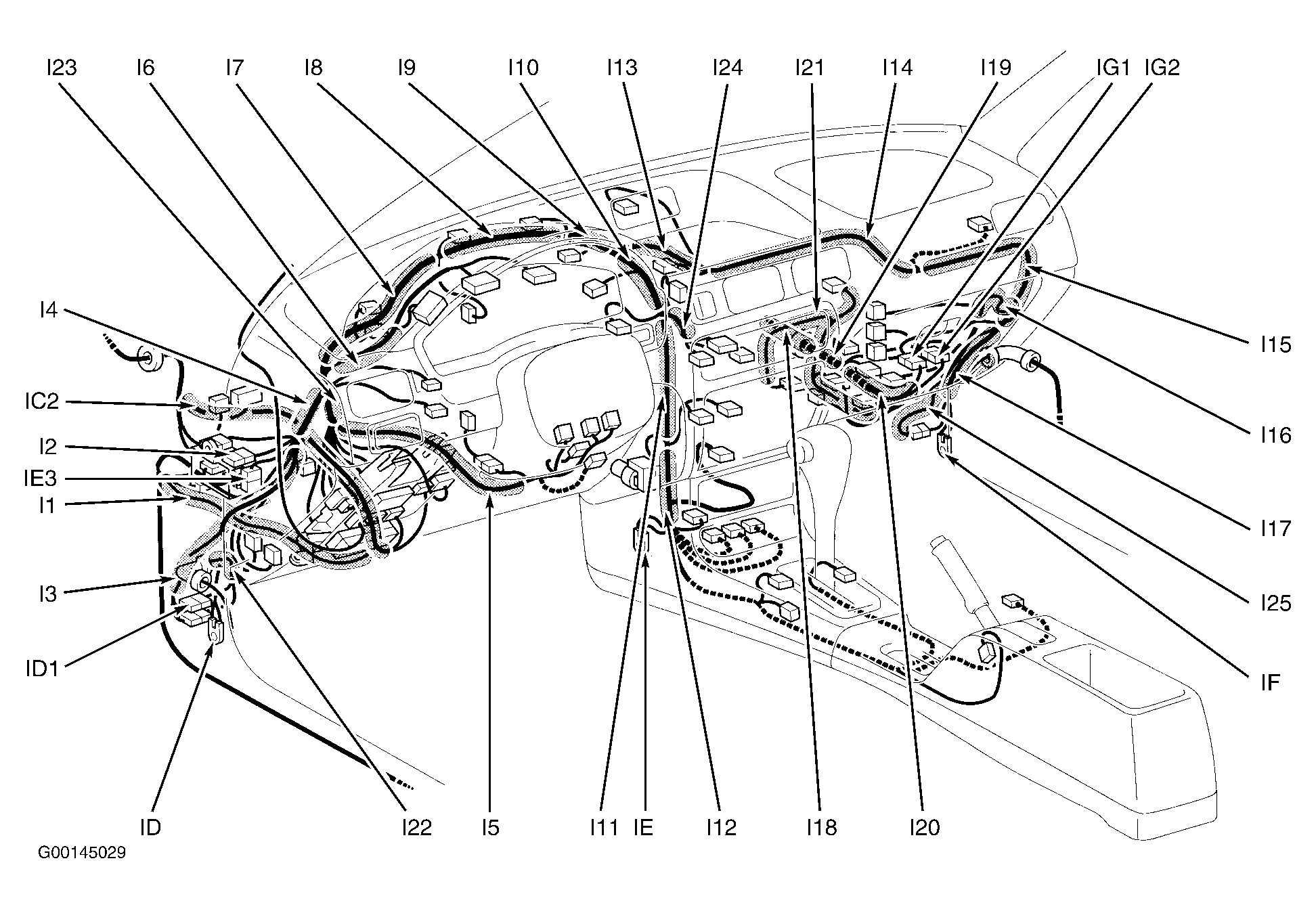

Fig 5: Dash
G00145029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
