Control Units
CONTROL UNITS

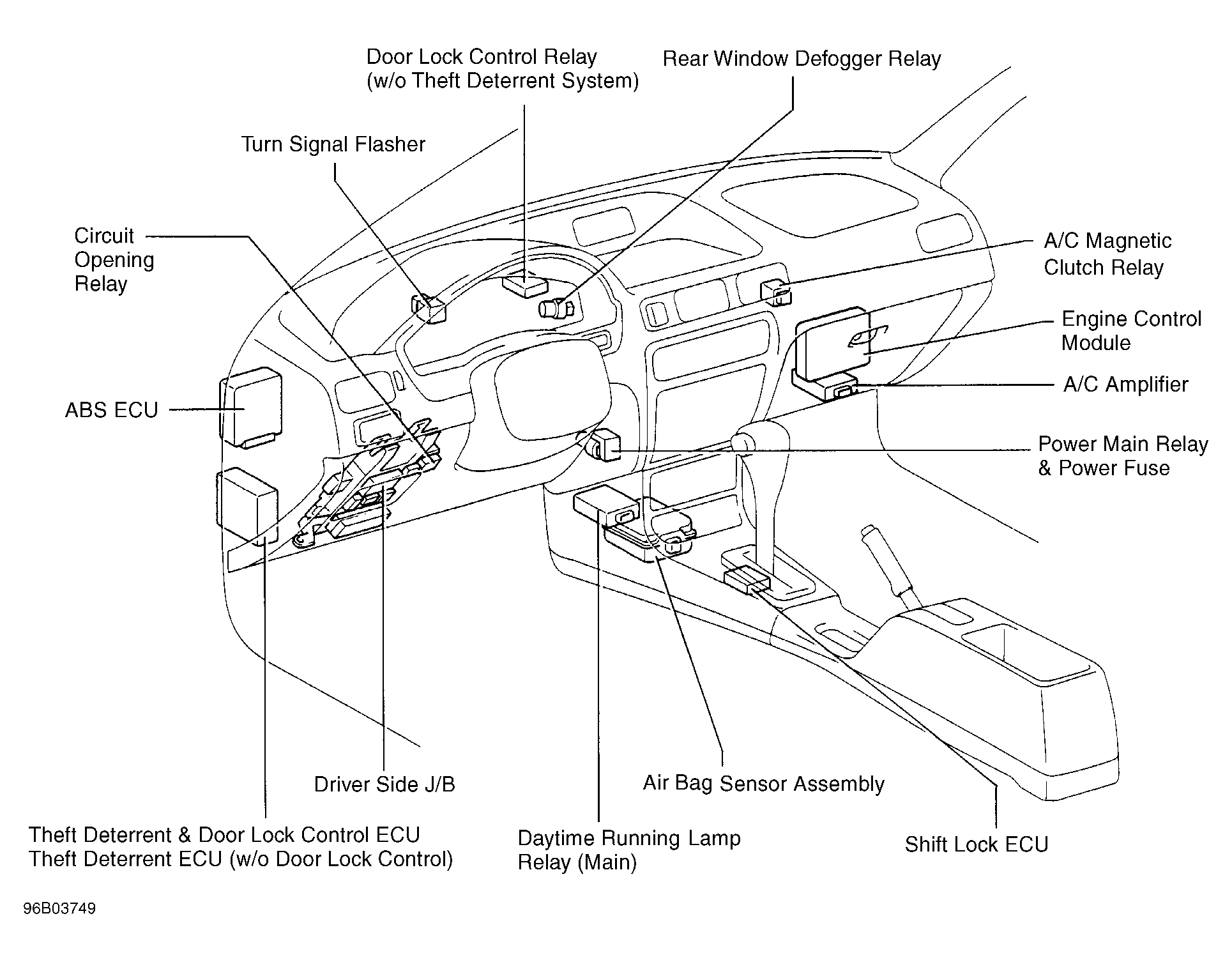

| Component | Component Location |
|---|---|
| ABS ECU | Behind left side of dash. See Figure. |
| A/C Amplifier | Behind right side of dash. See Figure. |
| Air Bag Sensor Assembly | Below center of dash, in front of console. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Shift Lock ECU | Under console, near shifter. See Figure. |
| Theft Deterrent & Door Lock Control ECU | Below left side of dash, at kick panel. See Figure. |
| Theft Deterrent ECU (W/O Door Lock Control) | Below left side of dash, at kick panel. See Figure. |
